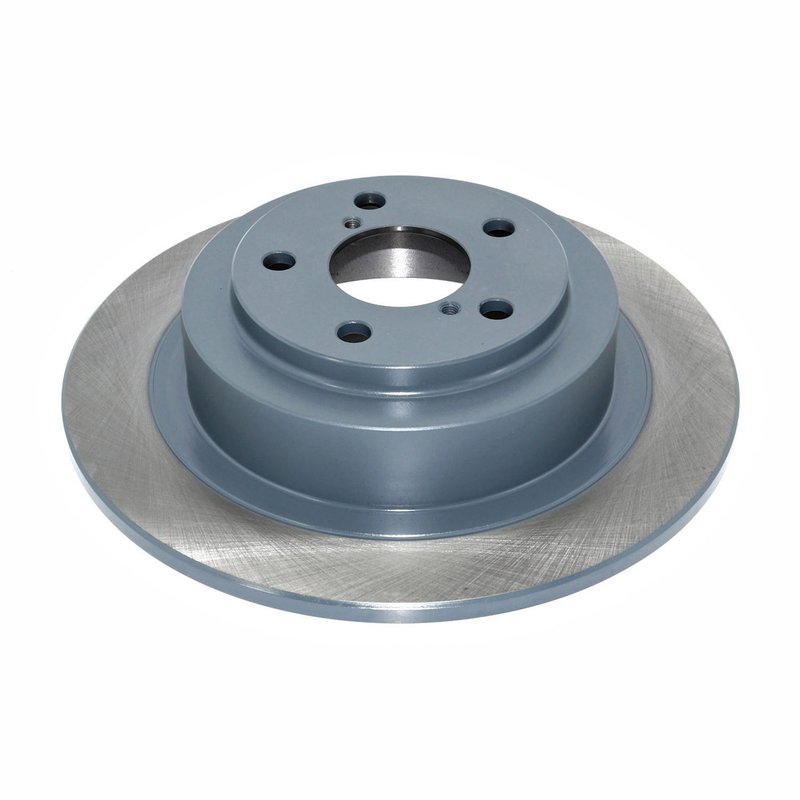

DuraGo BR31273-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Subaru Vehicles

The DuraGo BR31273-01 disc brake rotor is engineered to provide reliable braking performance for Subaru Baja, Legacy, and Outback models. Designed with a full cast construction and rust-resistant coating, this rotor offers durability and consistent stopping power under various driving conditions.

• Material: High-quality cast iron for strength and heat dissipation
• Full cast construction enhances rotor durability
• Rust-resistant coating helps prevent corrosion
• Solid, non-directional brake surface for even wear
• Drum-in-hat design with 5 mounting bolt holes
• Compatible with Subaru Baja, Legacy, and Outback models
• Outside diameter: 11.41 inches (289.7 mm)
• Nominal thickness: 0.39 inches (10 mm); discard thickness: 0.33 inches (8.5 mm)
• Overall height: 2.59 inches (65.8 mm)
• Center hole diameter: 2.28 inches (58 mm)
• Mounting bolt hole circle diameter: 3.94 inches (100 mm)
• Mounting bolt hole diameter: 0.51 inches (13 mm)

Technical Details and Construction

The DuraGo BR31273-01 rotor features a solid, non-vented design with a drum-in-hat configuration, which integrates the parking brake drum into the rotor hat. This design is common in Subaru vehicles like the Baja, Legacy, and Outback, providing a compact and efficient braking system. The rotor’s cast iron material ensures effective heat dissipation and structural integrity during braking. The rust-resistant coating extends the rotor’s service life by reducing surface corrosion, which is especially beneficial in regions with harsh weather conditions.

Compatible Subaru Models and Applications

This disc brake rotor is specifically compatible with the following Subaru models:

• Subaru Baja
• Subaru Legacy
• Subaru Outback

It is designed to meet the exact specifications required for these vehicles, ensuring proper fitment and reliable braking performance. The part number BR31273-01 should be referenced when searching for replacement rotors for these models.

Common Issues Addressed by This Rotor

• Brake rotor warping causing vibration during braking
• Excessive rotor wear leading to reduced braking efficiency
• Corrosion and rust buildup on rotor surfaces
• Uneven brake pad wear due to rotor surface irregularities
• Noise or squealing caused by damaged or worn rotors

Installation Notes and Tips

When installing the DuraGo BR31273-01 rotor, ensure the mounting surface is clean and free of debris to promote proper seating. Verify that the rotor thickness is above the discard thickness of 0.33 inches (8.5 mm) before installation. Use the correct torque specifications for the 5 mounting bolts to avoid rotor distortion. Since this rotor does not include an ABS tone ring, confirm compatibility with your vehicle’s ABS system. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet or exceed OEM specifications for Subaru vehicles. The full cast construction and rust-resistant coating contribute to the rotor’s durability and longevity. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
