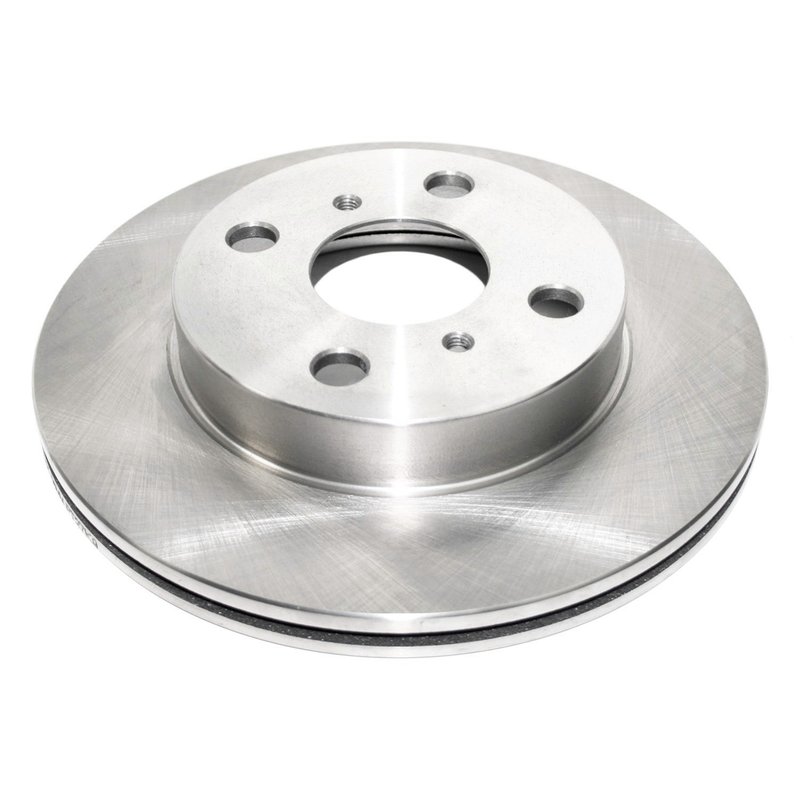

DuraGo BR31293 Disc Brake Rotor - Front

Overview of DuraGo BR31293 Disc Brake Rotor

The DuraGo BR31293 disc brake rotor is engineered for reliable braking performance on Toyota Echo models. Constructed from durable cast iron, this vented rotor is designed to maintain consistent stopping power under various driving conditions.

• Material: Cast iron for strength and heat dissipation
• Vented rotor design to improve cooling
• Nominal thickness of 0.71 inches (18 mm) with discard thickness at 0.63 inches (16 mm)
• Overall height of 1.69 inches (43 mm)
• Outside diameter of 9.25 inches (235 mm)
• Four mounting bolt holes with a 100 mm bolt circle diameter
• Non-directional brake surface for flexible installation
• Conventional rotor type without ABS tone ring

Detailed Product Description

The DuraGo BR31293 disc brake rotor is a full cast iron rotor designed specifically for Toyota Echo vehicles. Its vented construction allows for better heat dissipation compared to solid rotors, helping to reduce brake fade during extended use. The rotor features a nominal thickness of 0.71 inches (18 mm) and a discard thickness of 0.63 inches (16 mm), ensuring it meets OEM specifications for safe and effective braking. With an outside diameter of 9.25 inches (235 mm) and an overall height of 1.69 inches (43 mm), this rotor fits precisely on the Toyota Echo's front braking system. The four mounting bolt holes with a 100 mm bolt circle diameter provide secure attachment, while the non-directional brake surface allows for versatile installation without concern for rotor orientation.

Common Applications and Problem Solving

• Replacement for worn or warped front disc brake rotors on Toyota Echo
• Addresses brake pulsation caused by uneven rotor surfaces
• Improves braking consistency by restoring proper rotor thickness
• Helps eliminate noise and vibration from damaged rotors
• Suitable for vehicles experiencing reduced braking performance due to rotor wear

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surface to prevent rotor runout
• Torque mounting bolts to manufacturer specifications
• Check brake pads for wear and replace if necessary during rotor installation
• Perform a test drive to verify braking performance after installation

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The BR31293 rotor undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
