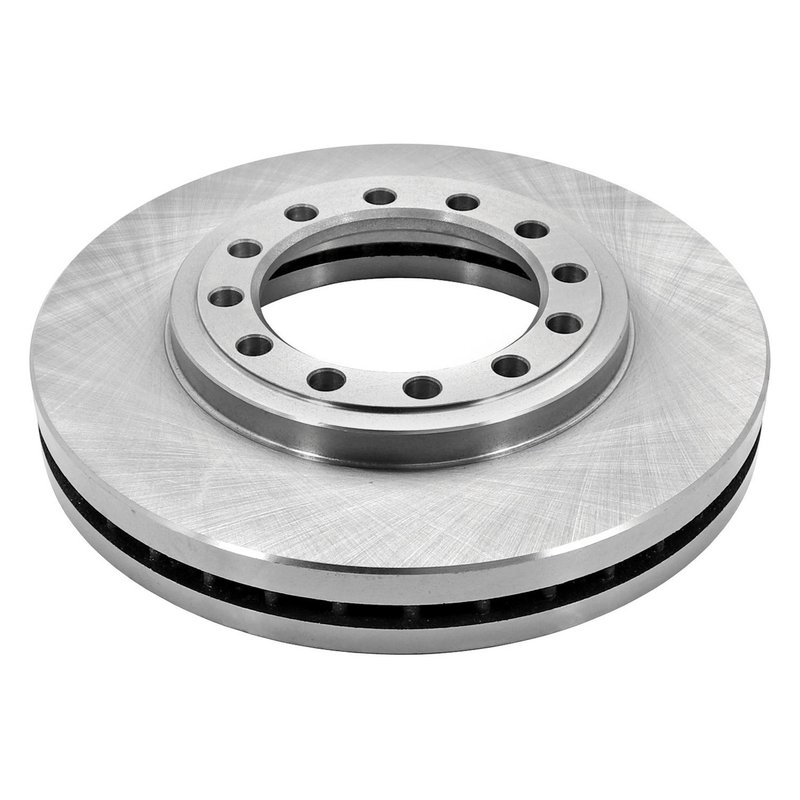

DuraGo BR31296 Disc Brake Rotor - Front

Overview of DuraGo BR31296 Disc Brake Rotor

The DuraGo BR31296 is a cast iron vented disc brake rotor designed specifically for Chevrolet LCF 3500HG models. Engineered for reliable braking performance, this rotor meets the precise specifications required for your vehicle's braking system.

• Material: Durable cast iron construction
• Vented design for improved heat dissipation
• Nominal thickness: 1.57 inches (40 mm)
• Discard thickness: 1.46 inches (37 mm)
• Outside diameter: 11.54 inches (293 mm)
• Overall height: 2.26 inches (57.4 mm)
• 12 mounting bolt holes with 0.5 inch (12.8 mm) diameter
• Conventional rotor type, non-directional brake surface
• Center hole diameter: 4.33 inches (110.1 mm)
• No ABS tone ring included
• No rust resistant coating

Detailed Product Description

The DuraGo BR31296 disc brake rotor is constructed from full cast iron, providing the necessary strength and thermal capacity for heavy-duty braking applications on the Chevrolet LCF 3500HG. Its vented design enhances airflow to reduce heat buildup during braking, which helps maintain consistent stopping power and reduces the risk of brake fade. The rotor features a nominal thickness of 1.57 inches and a discard thickness of 1.46 inches, ensuring it meets OEM specifications for safe operation. With an outside diameter of 11.54 inches and 12 mounting bolt holes, this rotor is engineered for a precise fit and secure installation. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Applications

• Compatible with Chevrolet LCF 3500HG models requiring part number BR31296
• Designed for use in conventional disc brake systems without ABS tone ring requirements
• Suitable for commercial and heavy-duty applications where reliable braking is critical

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean rotor surface to remove any protective coatings or debris prior to mounting
• Torque mounting bolts to manufacturer specifications to avoid warping
• Inspect brake pads and calipers for wear during rotor replacement
• Check for proper rotor alignment and clearance to prevent noise or uneven wear

Quality Assurance and Warranty

DuraGo manufactures the BR31296 rotor to meet industry standards for durability and performance. While this rotor does not include a rust resistant coating, its full cast iron construction provides reliable service life under normal operating conditions. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
