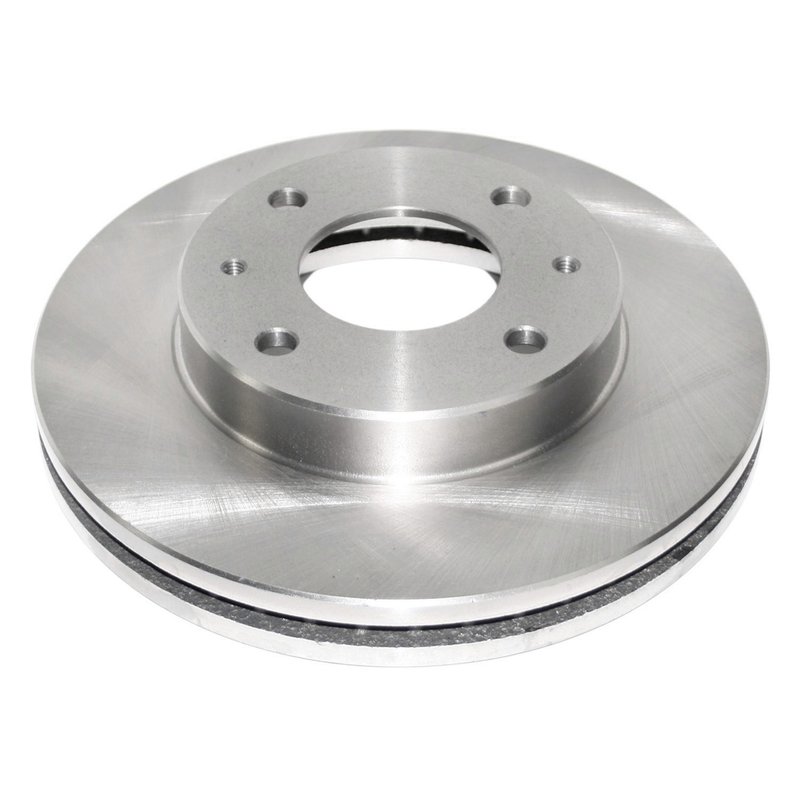

DuraGo BR31301 Disc Brake Rotor - Front
| Brand | DuraGo BR31301 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.88 |
| Discard Thickness | 22.4 |
| Nominal Thickness | 0.94 |
| Nominal Thickness | 24 |
| Construction | Full cast |
| Rust Resistant Coating | No |
| Overall Height | 1.8 |
| Overall Height | 45.8 |
| Outside Diameter | 10.12 |
| Outside Diameter | 257 |
| Mounting Bolt Hole Quantity | 4 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.72 |
| Center Hole Diameter | 69 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.5 |
| Mounting Bolt Hole Diameter | 12.6 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Hyundai · 3 vehicles |
Vented design. Promotes efficient airflow through the rotor for consistent braking performance.
Cast iron construction. Full-cast rotor construction delivers dependable strength and heat handling.
Conventional rotor. A straightforward brake rotor design for a direct replacement application.
Cross-references Raybestos Brakes 96989, Walker Exhaust 31301 and 126014 for the same application. See all 8.
DuraGo BR31301 Front Brake Rotor
The DuraGo BR31301 is a front disc brake rotor for 1999-2001 Hyundai Sonata applications. Built from cast iron with a full cast, vented design, it is made to match the fit, form, and function expected in a direct replacement rotor.
For Hyundai Sonata front brake service, BR31301 provides the core rotor dimensions needed for a proper OE-style replacement. It is a non-directional, conventional rotor with a 4-lug bolt pattern and a 257 mm outside diameter.
Key Features
- Part number BR31301
- Front disc brake rotor for 1999-2001 Hyundai Sonata
- Cast iron construction with full cast design
- Vented rotor for front brake applications
- Non-directional brake surface
- Conventional rotor design, not drum-in-hat
- 4 mounting bolt holes with 114.3 mm bolt circle diameter
- Outside diameter: 257 mm (10.12 in.)
- Nominal thickness: 24 mm (0.94 in.)
- Discard thickness: 22.4 mm (0.88 in.)
- Center hole diameter: 69 mm (2.72 in.)
Detailed Description
DuraGo BR31301 is engineered as a direct-fit front brake rotor for the 1999, 2000, and 2001 Hyundai Sonata. The vented cast iron construction helps provide the mass and thermal capacity expected in a front rotor, while the non-directional surface supports consistent braking performance during service replacement. DuraGo manufactures its brake drum and rotor program in ISO certified factories, with attention to fit, form, and function for professional repair work.
This part cross-references Raybestos Brakes 96989 for the same application.
What This Rotor Helps Address
- Brake pulsation caused by a worn or out-of-spec front rotor
- Rotor scoring or uneven braking surface wear
- Reduced braking consistency from excessive rotor thickness loss
- Front brake service on a 1999-2001 Hyundai Sonata
- Replacement of a conventional vented rotor with correct OE-style dimensions
Installation Notes and Tips
Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent lateral runout concerns, and inspect pads, calipers, and hardware condition during brake service. Confirm this rotor is for the front position on the Hyundai Sonata before ordering or installation.
Quality Assurance
DuraGo has over 45 years of aftermarket manufacturing experience and produces brake components in ISO certified factories. The BR31301 is built to meet requirements for fit, form, and function in professional brake repair.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Hyundai | Sonata | Front | — |
| 2000 | Hyundai | Sonata | Front | — |
| 1999 | Hyundai | Sonata | Front | — |
