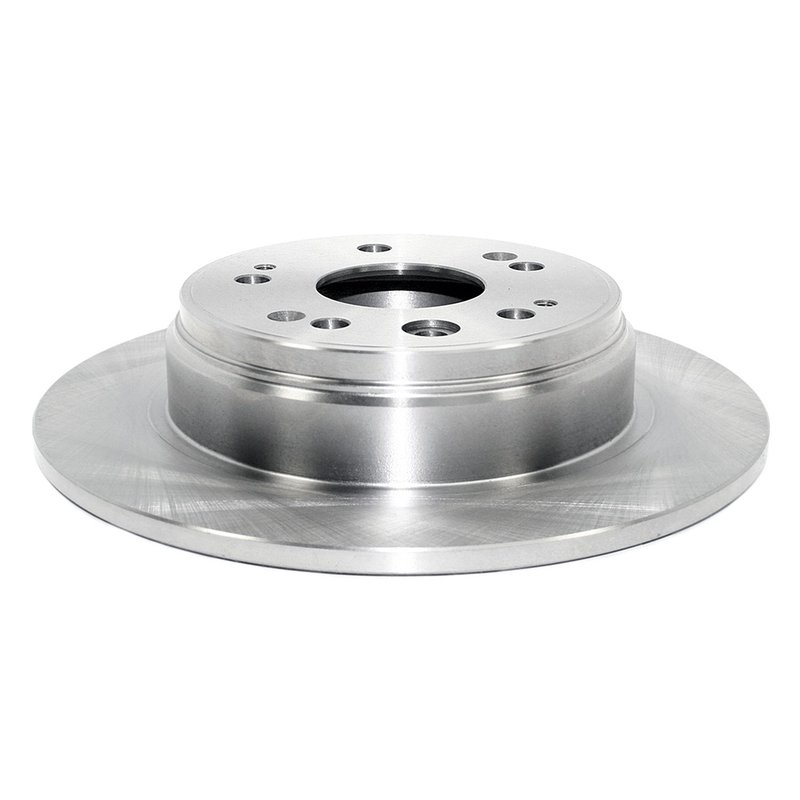

DuraGo BR31304 Disc Brake Rotor - Rear
| Brand | DuraGo BR31304 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.52 |
| Center Hole Diameter | 64.1 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.3 |
| Discard Thickness | 7.5 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.5 |
| Mounting Bolt Hole Diameter | 12.6 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.35 |
| Nominal Thickness | 9 |
| Outside Diameter | 11.1 |
| Outside Diameter | 282 |
| Overall Height | 2.17 |
| Overall Height | 55 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Solid |
| Fits | Honda · 3 vehicles |
Cast iron construction. Full cast design for dependable braking performance.
Non-directional surface. Helps simplify installation and brake pad bedding.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references Parts Authority PRT5399, 31304 and 42510S9AN00 for the same application. See all 12.
DuraGo BR31304 Rear Brake Rotor for Honda CR-V
The DuraGo BR31304 is a rear disc brake rotor built for 2002-2004 Honda CR-V applications. It uses a full cast, cast iron construction with a solid, non-directional brake surface for consistent braking performance and straightforward service replacement.
Key Features
- Fits 2002-2004 Honda CR-V, rear
- Part number BR31304 for easy catalog lookup
- Cast iron, full cast rotor construction
- Solid rotor design with non-directional brake surface
- 11.1 in. outside diameter and 2.17 in. overall height
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Center hole diameter: 2.52 in. / 64.1 mm
- Nominal thickness: 0.35 in. / 9 mm; discard thickness: 0.3 in. / 7.5 mm
Detailed Description
DuraGo BR31304 is a rear brake rotor for the Honda CR-V that follows the fitment and dimensional requirements needed for a direct brake service replacement. The cast iron, full cast design supports stable braking characteristics, while the solid rotor layout and non-directional surface simplify installation and help maintain even pad contact. DuraGo manufactures its brake drum and rotor program through ISO certified factories, with attention to fit, form, and function for aftermarket brake service. This part cross-references Parts Authority PRT5399 for the same application.
Common Brake Service Issues
- Rear brake pulsation from rotor wear or thickness variation
- Brake noise caused by worn or uneven rotor surfaces
- Reduced braking consistency from a rotor at discard thickness
- Service replacement needs on a 2002-2004 Honda CR-V rear brake repair
- Fitment-related replacement when matching the correct 5-lug rear rotor specification
Installation Notes and Tips
Verify rotor dimensions, hub fit, and bolt pattern before installation on the Honda CR-V. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads, calipers, and hardware condition during brake service. Confirm the rotor meets the vehicle’s rear application and thickness requirements before returning the vehicle to service.
Quality Assurance
DuraGo brake rotors are produced in ISO certified factories and built to meet fit, form, and function requirements for aftermarket brake repair. BR31304 is engineered as a service replacement rotor for the specified Honda CR-V rear application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Honda | CR-V | Rear | — |
| 2003 | Honda | CR-V | Rear | — |
| 2002 | Honda | CR-V | Rear | — |
