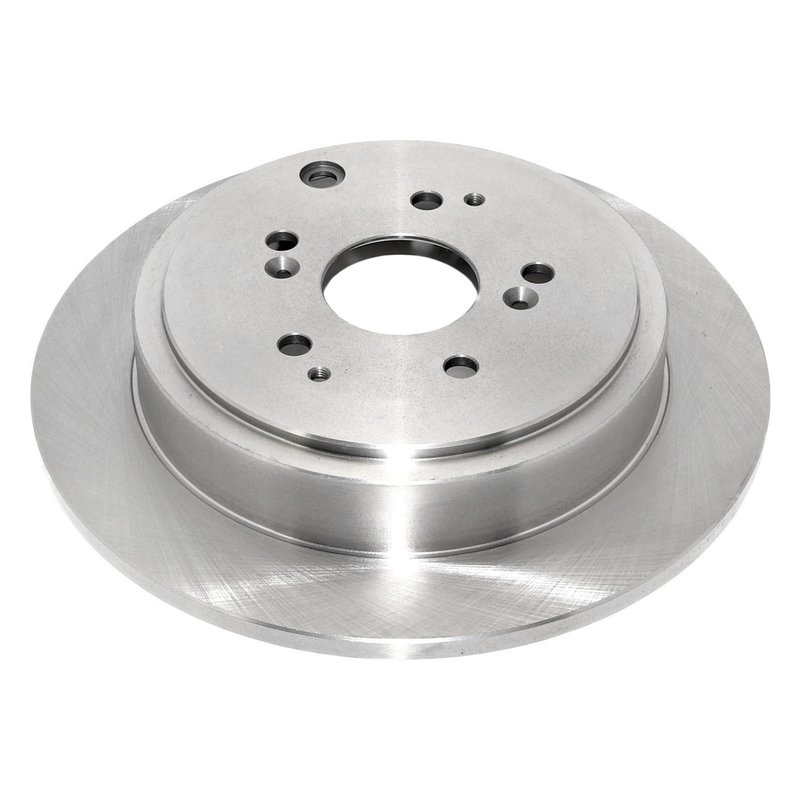

DuraGo BR31318 Disc Brake Rotor - Rear
| Brand | DuraGo BR31318 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.52 |
| Center Hole Diameter | 64.1 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.37 |
| Discard Thickness | 9.5 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.51 |
| Mounting Bolt Hole Diameter | 12.9 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.44 |
| Nominal Thickness | 11.1 |
| Outside Diameter | 12.32 |
| Outside Diameter | 313 |
| Overall Height | 2.2 |
| Overall Height | 56 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Solid |
| Fits | Honda and Acura · 12 vehicles |
Cast iron construction. Full cast design for dependable braking performance.
Solid rotor design. Non-directional surface helps simplify installation and service.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references Gates 31318, Parts Authority PRT5393 and Raybestos Brakes 980032 for the same application. See all 9.
DuraGo BR31318 Rear Brake Rotor
The DuraGo BR31318 is a rear disc brake rotor built for specific Honda and Acura applications. It uses full cast iron construction and a solid, non-directional brake surface to support consistent braking performance on the vehicles listed below.
Key Features
- Full cast iron construction for a durable rotor design
- Solid rotor design with a non-directional brake surface
- Outside diameter: 12.32 in. / 313 mm
- Nominal thickness: 0.44 in. / 11.1 mm
- Discard thickness: 0.37 in. / 9.5 mm
- 5-bolt mounting pattern with 4.5 in. / 114.3 mm bolt circle diameter
- Center hole diameter: 2.52 in. / 64.1 mm
- Drum-in-hat rotor construction
Detailed Description
DuraGo BR31318 is a rear brake rotor engineered for 2003-2008 Honda Pilot and 2001-2006 Acura MDX applications. It is a drum-in-hat style rotor made from cast iron, with a solid rotor profile and non-directional braking surface to simplify service preparation. DuraGo manufactures brake drums and rotors through ISO-certified factories, with an emphasis on fit, form, and function for aftermarket replacement needs. This part cross-references Raybestos Brakes (e.g., 980032) for the same application.
What This Rotor Helps Address
- Rear brake pulsation caused by worn or uneven rotor surfaces
- Brake noise related to rotor wear or surface irregularity
- Reduced braking consistency from a rotor below discard thickness
- Service replacement needs on Honda Pilot and Acura MDX rear brake systems
- Rotor replacement for drum-in-hat rear brake assemblies
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Because this rotor is non-directional, surface orientation is not a concern during installation, but proper brake service procedures should still be followed. Confirm rear application fitment for your exact year and model before ordering BR31318.
Quality Assurance
DuraGo has over 45 years of aftermarket manufacturing experience and produces brake components in ISO-certified factories. The BR31318 is built to meet fit, form, and function requirements for the listed Honda and Acura rear brake applications.
Vehicle Fitment
- Fits 2003-2008 Honda Pilot, rear
- Fits 2001-2006 Acura MDX, rear
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Honda | Pilot | Rear | — |
| 2007 | Honda | Pilot | Rear | — |
| 2006 | Acura | MDX | Rear | — |
| 2006 | Honda | Pilot | Rear | — |
| 2005 | Acura | MDX | Rear | — |
| 2005 | Honda | Pilot | Rear | — |
| 2004 | Acura | MDX | Rear | — |
| 2004 | Honda | Pilot | Rear | — |
| 2003 | Acura | MDX | Rear | — |
| 2003 | Honda | Pilot | Rear | — |
| 2002 | Acura | MDX | Rear | — |
| 2001 | Acura | MDX | Rear | — |
