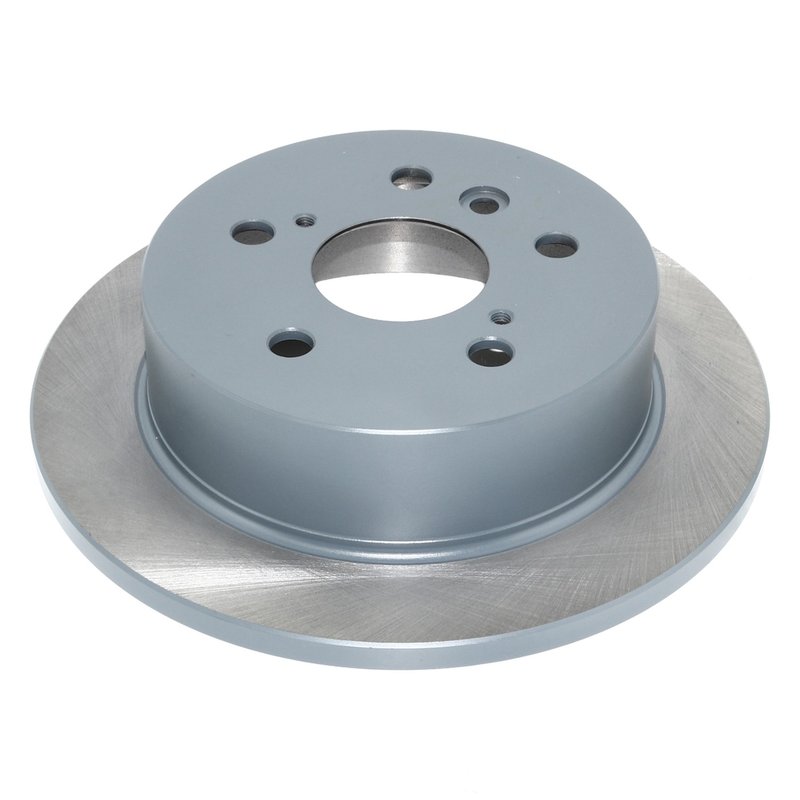

DuraGo BR31322-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Lexus and Toyota

The DuraGo BR31322-01 disc brake rotor is engineered for reliable braking performance on select Lexus and Toyota models. Designed with a full cast construction and rust-resistant coating, this rotor offers consistent stopping power and long-lasting durability.

• Material: Cast iron for strength and heat dissipation
• Full cast construction enhances structural integrity
• Rust-resistant coating protects against corrosion
• Solid, non-directional brake surface for even wear
• Drum-in-hat design with 5 mounting bolt holes
• Compatible with Lexus Avalon, Toyota Camry, ES300, ES330, and Solara
• Nominal thickness: 0.47 inches (12 mm); discard thickness: 0.41 inches (10.5 mm)
• Outside diameter: 10.59 inches (269 mm); overall height: 2.57 inches (65.2 mm)

Product Details and Specifications

The DuraGo BR31322-01 rotor is constructed from cast iron, a material known for its excellent heat dissipation and durability under braking stress. This rotor features a full cast design, which provides enhanced strength and resistance to warping. The rust-resistant coating helps maintain rotor integrity and appearance over time, especially in environments prone to moisture and road salt.

This rotor is a solid type with a non-directional brake surface, meaning it can be installed on either side of the vehicle without affecting performance. The drum-in-hat design integrates a parking brake drum, making it suitable for vehicles equipped with drum-in-hat rear brake systems. It includes five mounting bolt holes with a bolt circle diameter of 4.5 inches (114.3 mm) and a center hole diameter of 2.44 inches (62.1 mm).

Compatible Vehicles and Applications

• Lexus Avalon
• Toyota Camry
• Toyota ES300
• Toyota ES330
• Toyota Solara

This rotor is designed specifically for these models, ensuring proper fitment and optimal braking performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to worn rotor thickness
• Corrosion and rust buildup affecting rotor surface
• Uneven brake pad wear from damaged rotors
• Noise and vibration during braking

Installation Notes and Tips

When installing the DuraGo BR31322-01 rotor, ensure the rotor surface is clean and free of debris. Verify the rotor thickness is above the discard thickness of 0.41 inches (10.5 mm) before installation. Use proper torque specifications for the 5 mounting bolts to avoid rotor distortion. Since this rotor does not include an ABS tone ring, confirm compatibility with your vehicle’s ABS system. The non-directional design allows installation on either side of the vehicle.

Quality Assurance and Warranty

DuraGo rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The rust-resistant coating extends rotor life by reducing corrosion. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
