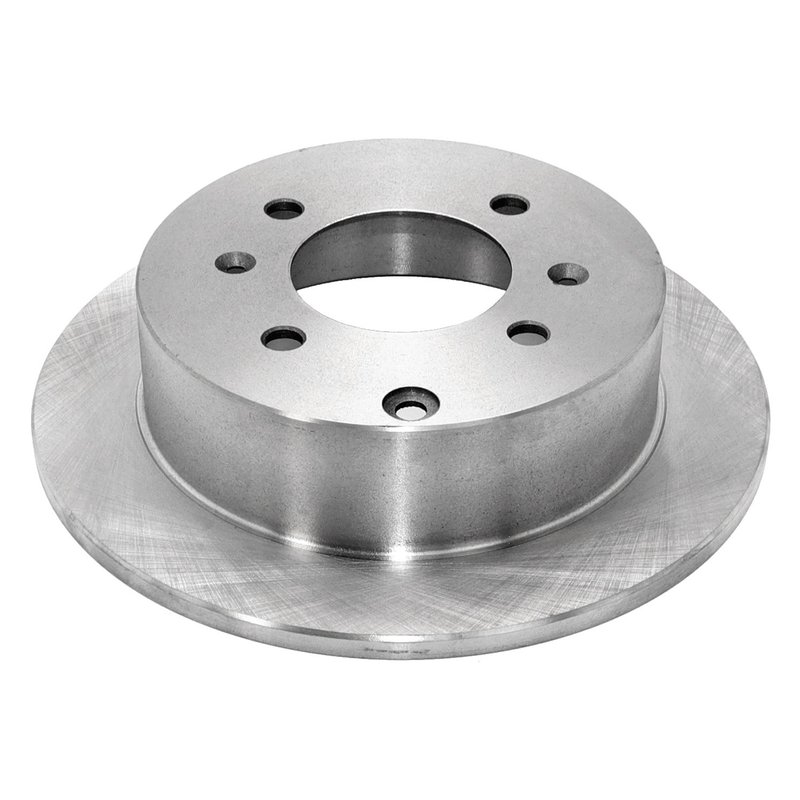

DuraGo BR31333 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Hyundai and Kia

The DuraGo BR31333 disc brake rotor is engineered for reliable braking performance on select Hyundai and Kia models. Designed as a solid, full cast rotor, it provides consistent stopping power for vehicles like the Hyundai Sonata, Kia Optima, and Hyundai Magentis.

• Material: Cast iron for durability and heat dissipation
• Rotor Type: Solid, drum-in-hat construction
• Outside Diameter: 10.31 inches (262 mm)
• Nominal Thickness: 0.39 inches (10 mm)
• Discard Thickness: 0.33 inches (8.4 mm)
• Mounting Bolt Holes: 4 holes with 0.49 inch (12.5 mm) diameter
• Mounting Bolt Hole Circle Diameter: 4.5 inches (114.3 mm)
• Center Hole Diameter: 2.99 inches (76 mm)
• Non-directional brake surface, no cross drilling or slots

Technical Details and Construction

The BR31333 rotor features a full cast iron construction, which is standard for many OEM replacement rotors, providing a balance of strength and heat management. This rotor is solid rather than vented, making it suitable for vehicles that do not require additional cooling features. The drum-in-hat design integrates the parking brake drum within the rotor, compatible with the brake systems on Hyundai Magentis, Kia Optima, and Hyundai Sonata models. The rotor does not include an ABS tone ring and has a non-directional braking surface, allowing for flexible installation orientation.

Compatible Vehicles and Applications

This DuraGo disc brake rotor is compatible with the following vehicles:

• Hyundai Sonata
• Hyundai Magentis
• Kia Optima

It is designed to replace worn or damaged rotors, restoring braking efficiency and safety for these specific models.

Common Issues Addressed by This Rotor

• Brake pulsation or vibration due to warped rotors
• Reduced braking performance from worn rotor thickness
• Noise or squealing caused by uneven rotor surfaces
• Overheating issues from deteriorated rotor material
• Parking brake malfunctions related to drum-in-hat rotor wear

Installation Notes and Tips

When installing the DuraGo BR31333 rotor, ensure the rotor surface is clean and free of rust or debris. Verify the rotor thickness is above the discard thickness of 0.33 inches (8.4 mm) before installation. Use proper torque specifications for the 4 mounting bolts with a 0.49 inch (12.5 mm) diameter. Since this rotor is non-directional, it can be installed in either orientation. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

DuraGo rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The BR31333 rotor undergoes quality control checks to ensure consistent thickness and material integrity. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation for exact warranty terms.
