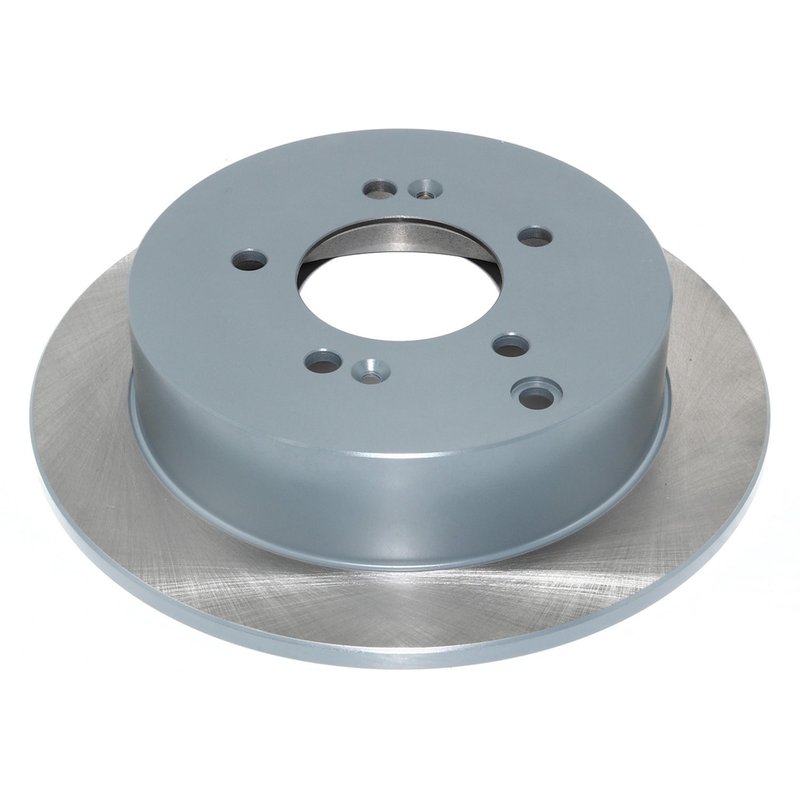

DuraGo BR31336-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Hyundai and Kia

The DuraGo BR31336-01 disc brake rotor is engineered to provide reliable braking performance for select Hyundai and Kia models. Designed with a full cast construction and rust-resistant coating, this rotor offers durability and consistent stopping power for vehicles like the Hyundai Santa Fe, Kia Sportage, and Tucson.

• Material: Cast iron for strength and heat dissipation
• Full cast construction enhances rotor durability
• Rust-resistant coating helps prevent corrosion
• Solid, non-vented rotor design with drum-in-hat configuration
• Compatible with Hyundai Santa Fe, Kia Sportage, and Tucson models
• Mounting bolt hole quantity: 5 with 114.3 mm bolt circle diameter
• Outside diameter: 284 mm (11.18 inches)
• Nominal thickness: 10 mm (0.39 inches) with discard thickness at 8.4 mm (0.33 inches)
• Overall height: 61.5 mm (2.42 inches)
• Non-directional brake surface for versatile installation

Technical Details and Construction

The DuraGo BR31336-01 rotor is constructed from cast iron, a material known for its excellent thermal conductivity and wear resistance, which helps maintain braking efficiency under demanding conditions. This rotor features a solid, non-vented design with a drum-in-hat type construction, integrating the parking brake drum within the rotor itself. The rust-resistant coating extends the rotor's service life by reducing surface corrosion, especially in humid or salty environments.

With an outside diameter of 284 mm and a nominal thickness of 10 mm, this rotor meets OEM specifications for the Hyundai Santa Fe, Kia Sportage, and Tucson. The 5-bolt mounting pattern with a 114.3 mm bolt circle diameter ensures proper fitment and secure installation. The non-directional brake surface allows for flexible rotor placement without concern for rotation direction.

Compatible Vehicles and Applications

This disc brake rotor is specifically designed for use on the following vehicles:

• Hyundai Santa Fe
• Kia Sportage
• Kia Tucson

It is ideal for addressing common braking issues such as:

• Brake rotor wear and thinning beyond discard thickness
• Corrosion and rust buildup on rotor surfaces
• Uneven braking or vibration caused by warped rotors
• Reduced braking performance due to damaged or worn rotors
• Replacement of OEM rotors with a reliable aftermarket option

Installation Notes and Tips

When installing the DuraGo BR31336-01 rotor, ensure the vehicle is securely lifted and the wheel assembly is properly removed. Clean the hub surface to remove rust or debris before mounting the rotor. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. Verify that the rotor thickness is within nominal specifications and replace if below discard thickness. Always torque mounting bolts to manufacturer specifications for safety and performance.

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet or exceed industry standards for performance and durability. The BR31336-01 rotor undergoes rigorous quality control to ensure consistent dimensions and material integrity. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
