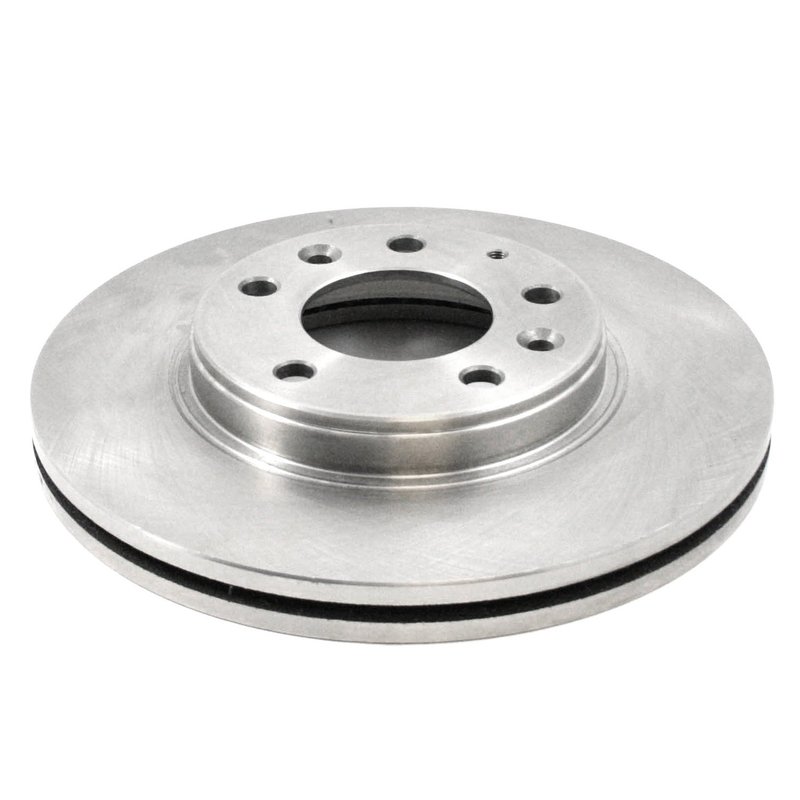

DuraGo BR31367 Disc Brake Rotor - Front

Overview of DuraGo BR31367 Disc Brake Rotor

The DuraGo BR31367 is a vented disc brake rotor designed specifically for Mazda 6 models. Crafted from durable cast iron, this rotor provides reliable braking performance and consistent wear characteristics for your vehicle.

• Material: Cast iron for strength and heat dissipation
• Vented rotor design to improve cooling
• Nominal thickness: 0.98 inches (25 mm)
• Discard thickness: 0.91 inches (23 mm)
• Outside diameter: 11.13 inches (282.6 mm)
• Mounting bolt holes: 5 with 4.5 inch (114.3 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type, no ABS tone ring included

Detailed Product Description

The DuraGo BR31367 disc brake rotor is engineered as a full cast, vented rotor to provide effective heat dissipation during braking. Its cast iron construction ensures durability and resistance to warping under normal operating conditions. The rotor measures 11.13 inches in outside diameter and features a nominal thickness of 0.98 inches, with a discard thickness of 0.91 inches, indicating when replacement is necessary. This rotor is designed with five mounting bolt holes on a 4.5-inch bolt circle diameter, compatible with Mazda 6 vehicles. The non-directional brake surface allows for flexible installation without concern for rotor orientation. This conventional rotor does not include an ABS tone ring and is not cross-drilled or slotted.

Compatible Vehicles and Applications

This disc brake rotor is compatible with Mazda 6 models, providing a direct replacement for worn or damaged rotors. It is suitable for drivers seeking to maintain factory-level braking performance and rotor specifications.

• Replaces worn or warped rotors causing brake pulsation
• Addresses rotor thickness below manufacturer discard limits
• Resolves uneven brake pad wear due to rotor surface issues
• Improves braking consistency and pedal feel
• Eliminates noise caused by damaged or uneven rotors

Installation Notes and Tips

When installing the DuraGo BR31367 rotor on a Mazda 6, ensure the mounting surface is clean and free of rust or debris. Use proper torque specifications for the mounting bolts to avoid rotor distortion. Since this rotor is non-directional, it can be installed on either side of the vehicle without concern for orientation. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

DuraGo rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. While this product does not include a rust-resistant coating, proper maintenance and inspection will help extend rotor life. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
