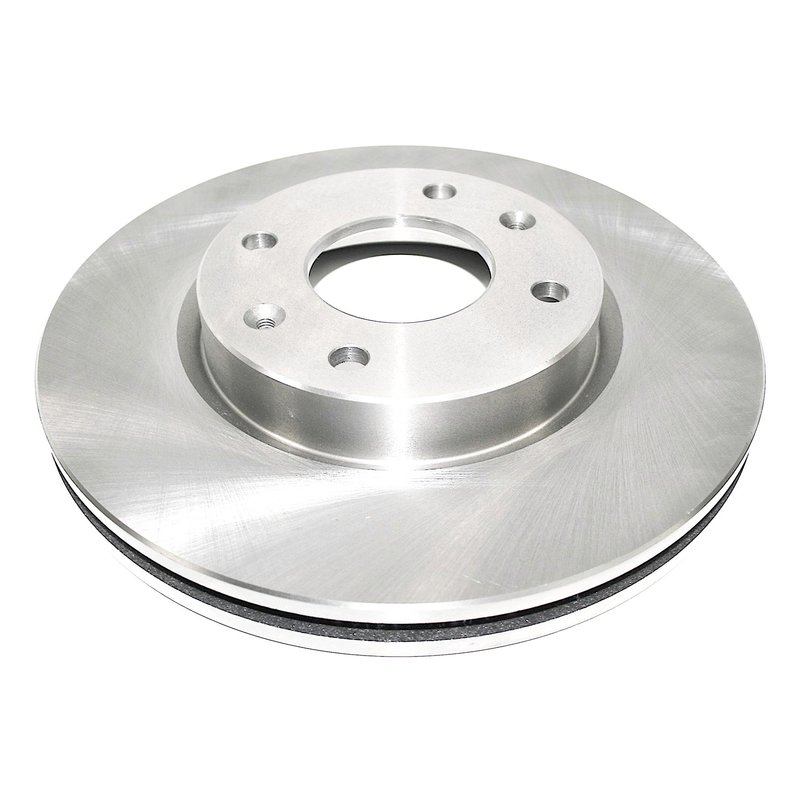

DuraGo BR31384 Disc Brake Rotor - Front

Overview of DuraGo BR31384 Disc Brake Rotor

The DuraGo BR31384 is a cast iron disc brake rotor designed for reliable braking performance on select Hyundai and Kia models. Engineered to meet OEM specifications, this rotor is compatible with Hyundai Magentis, Sonata, and Kia Optima vehicles, providing consistent stopping power and durability.

• Material: Full cast iron construction for strength and heat dissipation
• Rotor Type: Vented disc brake rotor for improved cooling
• Outside Diameter: 11.02 inches (280 mm)
• Nominal Thickness: 1.02 inches (26 mm) with discard thickness at 0.96 inches (24.4 mm)
• Mounting Bolt Holes: 4 holes with 0.5 inch (12.8 mm) diameter and 4.5 inch (114.3 mm) bolt circle diameter
• Center Hole Diameter: 2.72 inches (69.1 mm)
• Non-directional brake surface, conventional rotor design
• No ABS tone ring included
• No rust resistant coating applied

Detailed Product Description

The DuraGo BR31384 disc brake rotor features a full cast iron construction, which is standard for effective heat absorption and dissipation during braking. Its vented design allows air to flow between the rotor surfaces, reducing the risk of brake fade under heavy use. With an outside diameter of 11.02 inches and a nominal thickness of 1.02 inches, this rotor maintains structural integrity and performance throughout its service life. The rotor is designed with four mounting bolt holes, ensuring secure attachment to the hub assembly on compatible Hyundai Magentis, Sonata, and Kia Optima models. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Applications

This rotor is specifically compatible with the following vehicles:

• Hyundai Magentis
• Hyundai Sonata
• Kia Optima

It is intended for use in front or rear disc brake systems where a vented, conventional rotor is required. The DuraGo BR31384 is suitable for drivers seeking a direct replacement rotor that meets factory specifications.

Common Issues Addressed by DuraGo BR31384 Rotor

• Brake pulsation caused by warped or uneven rotors
• Reduced braking efficiency due to worn or thin rotors
• Excessive brake noise from damaged rotor surfaces
• Overheating and brake fade during extended braking
• Vibration or shudder during braking

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.96 inches) before installation
• Clean rotor surface and hub mounting area to prevent uneven contact
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check brake pads for wear and replace if necessary when installing new rotors
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

DuraGo manufactures the BR31384 rotor to meet or exceed OEM standards for fit, form, and function. The full cast iron construction and vented design contribute to consistent braking performance and durability. While this rotor does not include a rust resistant coating, proper maintenance and inspection can help extend its service life. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
