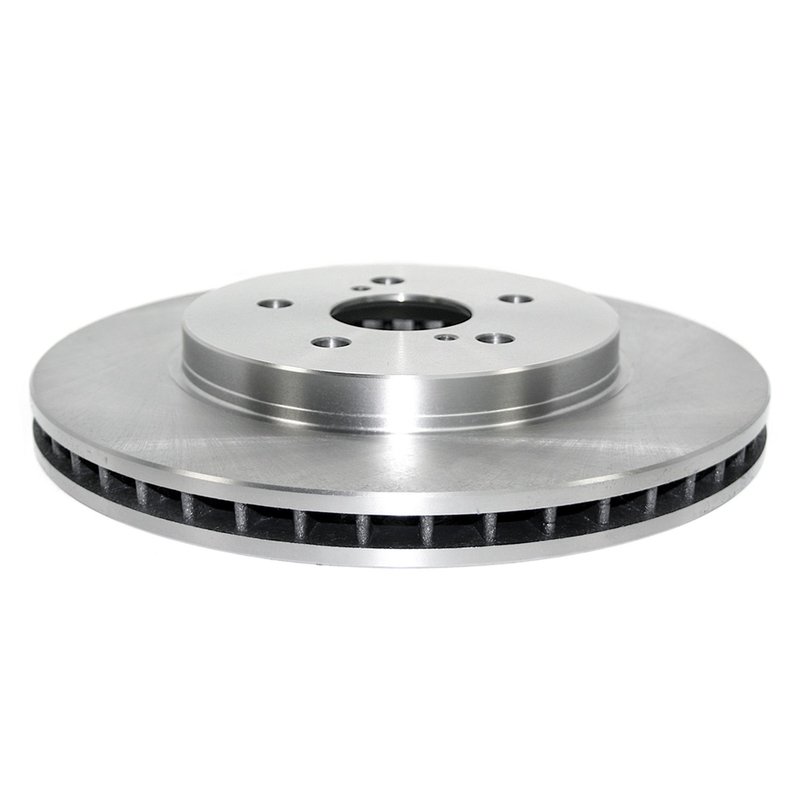

DuraGo BR31392 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Lexus and Toyota

The DuraGo BR31392 disc brake rotor is engineered to provide reliable braking performance for select Lexus and Toyota models. Designed with a full cast construction and vented design, this rotor supports effective heat dissipation and consistent stopping power.

• Material: Cast iron for durability and heat resistance
• Vented rotor design to reduce brake fade
• Nominal thickness: 1.1 inches (28 mm) with discard thickness at 1.02 inches (26 mm)
• Outside diameter: 12.56 inches (319 mm)
• Mounting bolt hole quantity: 5 with 4.5 inch (114.3 mm) bolt circle diameter
• Non-directional brake surface for flexible installation
• Conventional rotor type compatible with drum-in-hat systems

Technical Details and Construction

The DuraGo BR31392 rotor is constructed from full cast iron, providing a solid and durable braking surface. Its vented design allows air to flow between the rotor faces, helping to dissipate heat generated during braking and reducing the risk of brake fade. The rotor measures 12.56 inches in outside diameter and has a nominal thickness of 1.1 inches, with a discard thickness of 1.02 inches, indicating when replacement is necessary. The rotor features five mounting bolt holes spaced on a 4.5-inch bolt circle diameter, ensuring proper fitment on compatible vehicles.

Compatible Vehicles and Applications

This disc brake rotor is compatible with various Lexus and Toyota models, including the Lexus RX330, RX350, RX400h, and the Toyota Highlander. It is designed to meet the braking demands of these vehicles, providing consistent performance under normal driving conditions.

• Addresses brake rotor wear and thickness below discard limits
• Resolves issues with brake noise caused by warped rotors
• Improves heat dissipation to reduce brake fade during extended use
• Restores proper rotor dimensions for safe and effective braking

Installation Notes and Tips

When installing the DuraGo BR31392 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Since this rotor does not include an ABS tone ring, verify compatibility with your vehicle’s ABS system. Use proper torque specifications for the five mounting bolts to secure the rotor firmly. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet industry standards for material quality and dimensional accuracy. While this rotor does not feature a rust-resistant coating, its cast iron construction provides reliable durability. Please refer to DuraGo’s warranty policy for specific coverage details related to the BR31392 part number.
