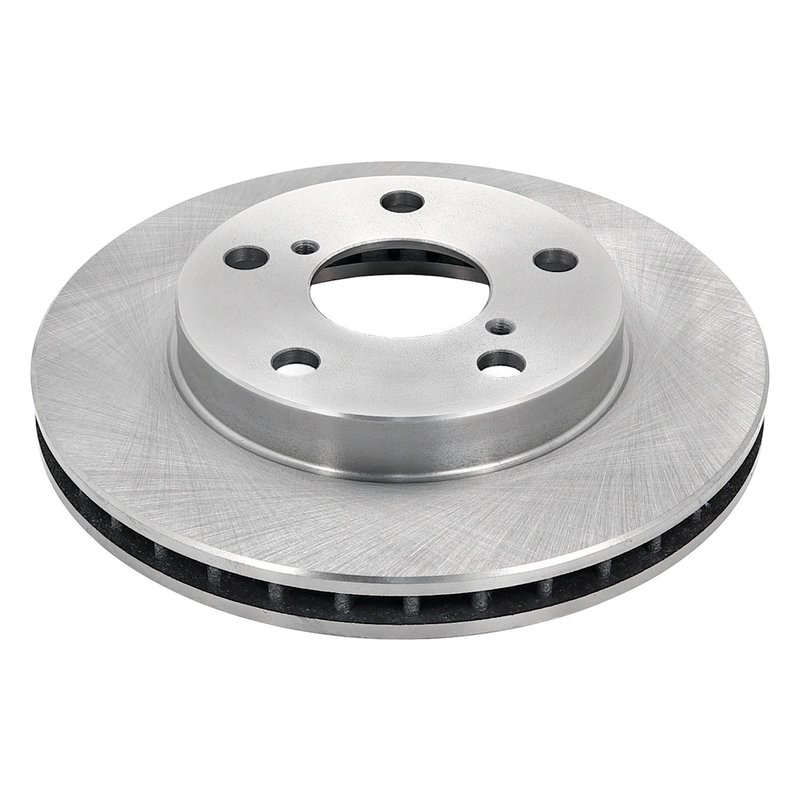

DuraGo BR3293 Disc Brake Rotor - Front
| Brand | DuraGo BR3293 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.94 |
| Discard Thickness | 24 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25 |
| Construction | Full cast |
| Rust Resistant Coating | No |
| Overall Height | 1.87 |
| Overall Height | 47.5 |
| Outside Diameter | 10.16 |
| Outside Diameter | 258 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.44 |
| Center Hole Diameter | 62 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.58 |
| Mounting Bolt Hole Diameter | 14.8 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Toyota · 5 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Vented design. Helps promote efficient airflow through the rotor.
Cast iron construction. Full-cast rotor for dependable braking performance.
Cross-references Anchor 3293, Parts Authority PRT1653 and 96180 for the same application. See all 9.
DuraGo BR3293 Front Brake Rotor
The DuraGo BR3293 is a vented front disc brake rotor built from cast iron for 1991-1995 Toyota MR2 applications. It is a conventional, full-cast rotor with a non-directional brake surface and a 5-lug bolt pattern for direct front axle service on the listed vehicles.
Key Features
- Cast iron construction for dependable braking performance
- Vented rotor design for front brake heat management
- Full cast, conventional rotor construction
- Non-directional brake surface for straightforward service preparation
- 5 mounting bolt holes with a 114.3 mm bolt circle diameter
- Outside diameter: 258 mm (10.16 in.)
- Center hole diameter: 62 mm (2.44 in.)
- Nominal thickness: 25 mm (0.98 in.); discard thickness: 24 mm (0.94 in.)
- Fits 1991-1995 Toyota MR2, front
Detailed Description
DuraGo BR3293 is a front brake rotor for the 1991-1995 Toyota MR2, engineered to match the listed fitment and braking dimensions. The rotor uses cast iron and a vented design to support consistent front brake operation, while the non-directional surface helps simplify rotor preparation during brake service. With a 258 mm outside diameter, 62 mm center hole, and 114.3 mm bolt circle, this rotor is specified for the front position on the Toyota MR2. This part cross-references Anchor 3293 for the same application.
Common Brake Issues This Rotor Addresses
- Front brake pulsation caused by worn or uneven rotor surfaces
- Brake noise related to rotor wear or surface irregularity
- Reduced braking consistency from rotors at or near discard thickness
- Service replacement needs for a vented front rotor on the Toyota MR2
- Fitment-matched replacement for 1991-1995 Toyota MR2 front brake service
Installation Notes and Tips
Confirm rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Inspect pads, calipers, and hardware condition during service, and follow the vehicle manufacturer’s brake bedding procedure after installation. Fits 1991-1995 Toyota MR2, front.
Quality Assurance
DuraGo manufactures brake drums and rotors through ISO-certified factories and focuses on fit, form, and function for aftermarket brake service. The BR3293 is part of that cataloged rotor program and is built to meet the listed application requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Toyota | MR2 | 2.2L | L4 | Front | — |
| 1994 | Toyota | MR2 | 2.2L | L4 | Front | — |
| 1993 | Toyota | MR2 | 2.2L | L4 | Front | — |
| 1992 | Toyota | MR2 | — | — | Front | — |
| 1991 | Toyota | MR2 | — | — | Front | — |
