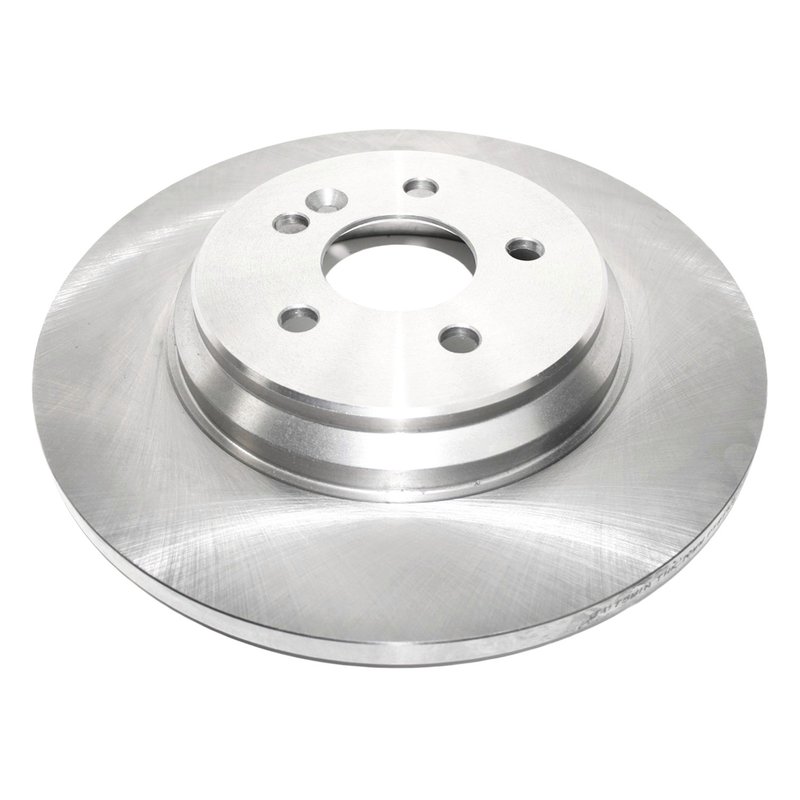

DuraGo BR34175 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Mercedes-Benz ML Series

The DuraGo BR34175 disc brake rotor is engineered to provide consistent braking performance for select Mercedes-Benz models. Designed specifically for the ML55 AMG, ML430, and ML500, this rotor ensures compatibility and dependable stopping power.

• Constructed from durable cast iron for strength and heat dissipation
• Full cast, solid rotor design for reliable braking
• Drum-in-hat type rotor with 5 mounting bolt holes
• Non-directional brake surface for versatile installation
• Outside diameter of 13.05 inches (331.5 mm) and overall height of 2.17 inches (55.2 mm)
• Nominal thickness of 0.55 inches (14 mm) with discard thickness at 0.48 inches (12.3 mm)

Detailed Product Description

The DuraGo BR34175 disc brake rotor is a solid, full cast iron rotor designed to meet the braking demands of Mercedes-Benz ML55 AMG, ML430, and ML500 vehicles. Its drum-in-hat construction integrates a drum brake surface within the rotor hat, allowing for rear parking brake functionality. The rotor features a non-directional braking surface, which simplifies installation by allowing it to be mounted in either orientation without affecting performance.

With an outside diameter of 13.05 inches and a nominal thickness of 0.55 inches, this rotor provides a robust braking surface. The discard thickness of 0.48 inches indicates the minimum safe thickness before replacement is necessary, helping maintain optimal braking efficiency and safety. The rotor includes five mounting bolt holes arranged on a 4.41-inch (112 mm) bolt circle diameter, compatible with the specified Mercedes-Benz models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation or noise
• Restores braking performance on Mercedes-Benz ML55 AMG, ML430, and ML500 rear axles
• Addresses rotor thickness below manufacturer specifications
• Eliminates uneven brake pad wear due to rotor surface irregularities
• Supports proper function of rear drum-in-hat parking brake systems

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check compatibility with ABS sensors as this rotor does not include an ABS tone ring
• Inspect brake pads and hardware during rotor replacement for optimal system performance

Quality Assurance and Warranty

DuraGo brake rotors are manufactured to meet industry standards for material quality and dimensional accuracy. The BR34175 rotor is made from cast iron to provide consistent heat dissipation and durability under normal operating conditions. While this rotor does not feature a rust-resistant coating, proper maintenance and installation will help extend its service life. Warranty coverage details should be confirmed with the product provider.
