OE Quality
60-Day Returns

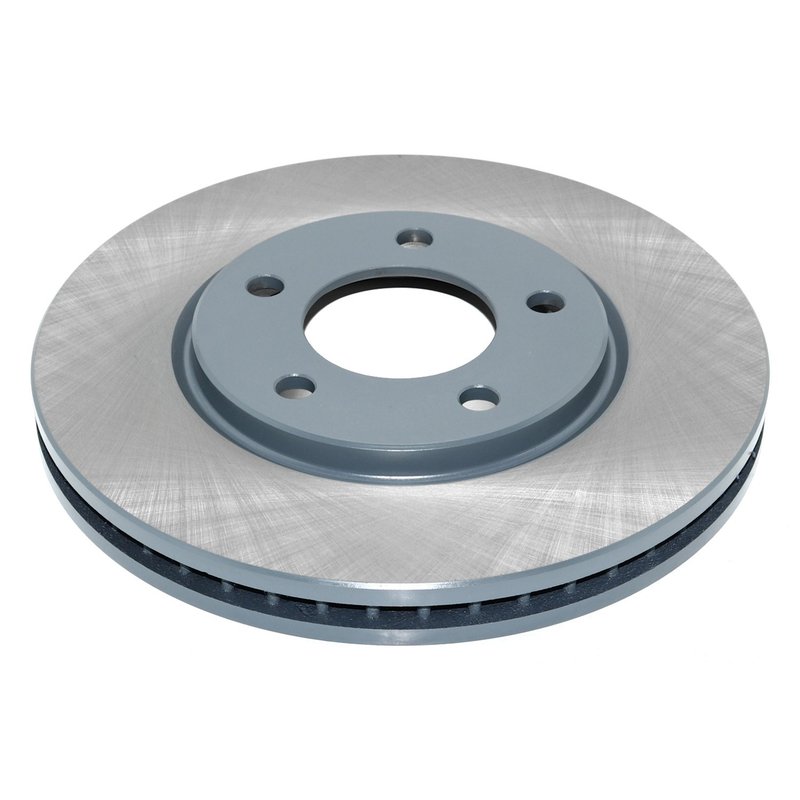

DuraGo BR53004-01 Disc Brake Rotor - Front
Durable Cast Iron Disc Brake Rotor for Chrysler and Dodge
The DuraGo BR53004-01 disc brake rotor is engineered to provide reliable braking performance for Chrysler Caravan, Dodge Grand Caravan, and Town & Country models. Designed with a full cast construction and rust-resistant coating, this rotor ensures durability and consistent stopping power under various driving conditions.
- Constructed from high-quality cast iron for strength and heat dissipation
- Vented rotor design to improve cooling and reduce brake fade
- Rust-resistant coating extends rotor life and maintains appearance
- Compatible with 5 mounting bolt holes and conventional brake systems
- Non-directional brake surface for versatile installation
Technical Specifications and Features
The DuraGo BR53004-01 rotor features a nominal thickness of 1.1 inches (28 mm) and a discard thickness of 1 inch (25.3 mm), ensuring precise fitment and performance. Its overall height measures 1.5 inches (38 mm), with an outside diameter of 11.06 inches (281 mm). The rotor includes five mounting bolt holes with a bolt circle diameter of 4.5 inches (114.3 mm) and a mounting bolt hole diameter of 0.56 inches (14.2 mm). The center hole diameter is 2.89 inches (73.5 mm). This vented rotor design promotes effective heat dissipation during braking, reducing the risk of warping and brake fade. The rotor surface is non-directional, allowing for flexible installation without concern for rotation direction.
Compatible Vehicles and Applications
This disc brake rotor is specifically compatible with the following vehicles:
- Chrysler Caravan
- Dodge Grand Caravan
- Chrysler Town & Country
It is designed for use in conventional brake systems and does not include an ABS tone ring. The DuraGo BR53004-01 rotor is ideal for replacing worn or damaged rotors to restore braking efficiency and safety.
Common Issues Addressed by This Rotor
- Brake pulsation caused by warped or uneven rotors
- Reduced braking performance due to worn rotor thickness
- Corrosion and rust buildup affecting rotor surface
- Overheating and brake fade from insufficient cooling
- Noise and vibration during braking from damaged rotors
Installation Notes and Tips
Ensure the rotor thickness is above the discard thickness of 1 inch (25.3 mm) before installation. Clean the mounting surface and hub to prevent uneven rotor seating. Use proper torque specifications for the 5 mounting bolts to avoid rotor warping. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. Verify compatibility with your vehicle’s brake system prior to installation.
Quality Assurance and Warranty
DuraGo manufactures this rotor with full cast iron construction and a rust-resistant coating to meet industry standards for durability and performance. While specific warranty details are not provided, DuraGo products typically adhere to quality control measures to ensure reliable operation in Chrysler Caravan, Dodge Grand Caravan, and Town & Country vehicles.
| Brand | DuraGo |
|---|---|
| Part Number | BR53004-01 |
| Material | Cast iron |
| Discard Thickness | 1 |
| Discard Thickness | 25.3 |
| Nominal Thickness | 1.1 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.5 |
| Overall Height | 38 |
| Outside Diameter | 11.06 |
| Outside Diameter | 281 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.89 |
| Center Hole Diameter | 73.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.56 |
| Mounting Bolt Hole Diameter | 14.2 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
This part fits 18 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2007 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2007 | Dodge | Grand Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2006 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2006 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2006 | Dodge | Grand Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2005 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2005 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2005 | Dodge | Grand Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2004 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2004 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2004 | Dodge | Grand Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2003 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2003 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2002 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2002 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
| 2001 | Chrysler | Town & Country | Front | Coated Hat and Edge for Rust Resistance |
| 2001 | Dodge | Caravan | Front | Coated Hat and Edge for Rust Resistance |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
