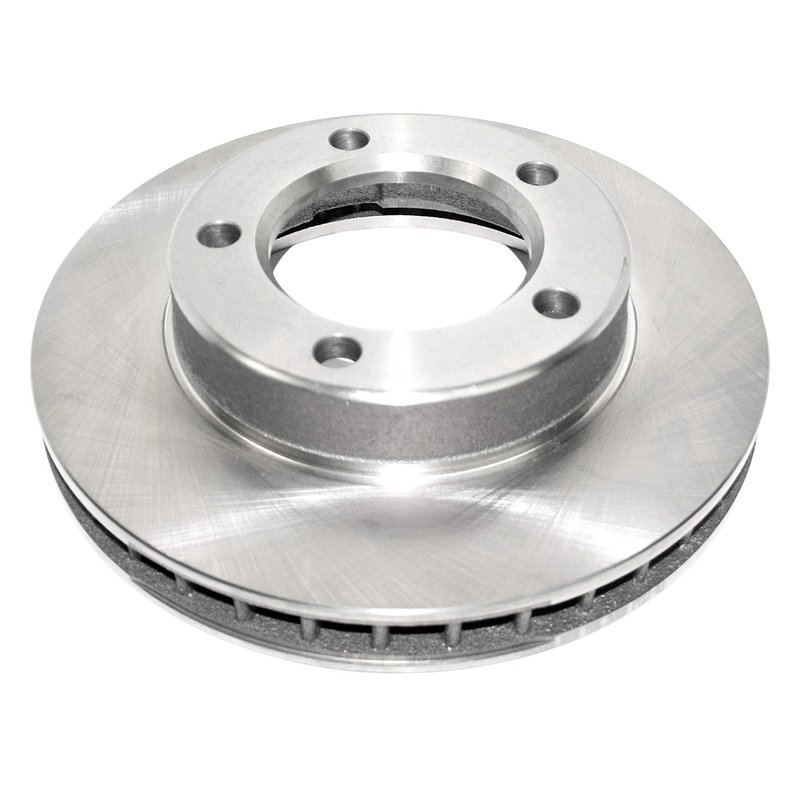

DuraGo BR5324 Disc Brake Rotor - Front
| Brand | DuraGo BR5324 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4 |
| Center Hole Diameter | 101.7 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.17 |
| Discard Thickness | 29.8 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 |
| Mounting Bolt Hole Circle Diameter | 139.7 |
| Mounting Bolt Hole Diameter | 0.64 |
| Mounting Bolt Hole Diameter | 16.3 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.25 |
| Nominal Thickness | 31.7 |
| Outside Diameter | 11.63 |
| Outside Diameter | 295.5 |
| Overall Height | 2.6 |
| Overall Height | 66 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Fits | Dodge · 30 vehicles |
Full cast construction. Cast iron rotor built for dependable braking performance.
Vented design. Helps air flow through the rotor for more consistent cooling.
Conventional rotor. A straightforward brake rotor for standard replacement needs.
Cross-references Carlson 7050, 5324 and 60609 for the same application. See all 11.
DuraGo BR5324 Front Vented Brake Rotor
The DuraGo BR5324 is a front disc brake rotor built from cast iron with a full cast construction and a vented design. It is engineered for direct-fit applications on select Dodge Ramcharger, W150, and W100 models, including front rotor service for 1980-1993 trucks and SUVs listed below.
Key Features
- Cast iron construction for consistent braking performance
- Full cast rotor design
- Vented rotor type for front brake applications
- Non-directional brake surface
- Conventional rotor design
- 5-bolt mounting pattern
- Outside diameter: 11.63 in. (295.5 mm)
- Nominal thickness: 1.25 in. (31.7 mm)
- Discard thickness: 1.17 in. (29.8 mm)
- Center hole diameter: 4.00 in. (101.7 mm)
Detailed Description
DuraGo BR5324 is a front disc brake rotor for classic Dodge 4x4 applications that require a vented, conventional rotor with a 5-lug pattern. It measures 11.63 inches in outside diameter, 2.6 inches in overall height, and uses a non-directional braking surface to support even pad contact. This part number, BR5324, cross-references Carlson 7050 for the same application. DuraGo manufactures brake drums and rotors through ISO-certified factories, with a focus on fit, form, and function for professional repair work. BR5324 is a direct replacement choice for Dodge Ramcharger, Dodge W150, and Dodge W100 front brake service.
What This Rotor Helps Address
- Front brake pulsation from worn rotor surfaces
- Brake noise caused by rotor wear or uneven contact
- Reduced stopping consistency on older front brake systems
- Rotor replacement needs on vented, conventional front brake setups
- Service for Dodge Ramcharger, W150, and W100 front brake applications
Installation Notes and Fitment
Fits 1982-1993 Dodge Ramcharger, front. Fits 1982-1993 Dodge W150, front. Fits 1986-1989 Dodge W100, front. Fits 1980-1981 Dodge W150, front, rotor only; with locking hub. Verify rotor dimensions, hub style, and brake system configuration before installation. The BR5324 is a front-position rotor and does not include cross-drilling or slotting.
Quality Assurance
DuraGo brake rotors are manufactured in ISO-certified factories and built to meet fit, form, and function requirements for aftermarket brake service. Part number BR5324 is produced for consistent cataloged application coverage and professional repair use.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Dodge | Ramcharger | 4WD | Front | — |
| 1993 | Dodge | W150 | — | Front | — |
| 1992 | Dodge | Ramcharger | 4WD | Front | — |
| 1992 | Dodge | W150 | — | Front | — |
| 1991 | Dodge | Ramcharger | 4WD | Front | — |
| 1991 | Dodge | W150 | — | Front | — |
| 1990 | Dodge | Ramcharger | 4WD | Front | — |
| 1990 | Dodge | W150 | — | Front | — |
| 1989 | Dodge | Ramcharger | 4WD | Front | — |
| 1989 | Dodge | W100 | — | Front | — |
| 1989 | Dodge | W150 | — | Front | — |
| 1988 | Dodge | Ramcharger | 4WD | Front | — |
| 1988 | Dodge | W100 | — | Front | — |
| 1988 | Dodge | W150 | — | Front | — |
| 1987 | Dodge | Ramcharger | 4WD | Front | — |
| 1987 | Dodge | W100 | — | Front | — |
| 1987 | Dodge | W150 | — | Front | — |
| 1986 | Dodge | Ramcharger | 4WD | Front | — |
| 1986 | Dodge | W100 | — | Front | — |
| 1986 | Dodge | W150 | — | Front | — |
| 1985 | Dodge | Ramcharger | 4WD | Front | — |
| 1985 | Dodge | W150 | — | Front | — |
| 1984 | Dodge | Ramcharger | 4WD | Front | — |
| 1984 | Dodge | W150 | — | Front | — |
| 1983 | Dodge | Ramcharger | 4WD | Front | — |
| 1983 | Dodge | W150 | — | Front | — |
| 1982 | Dodge | Ramcharger | 4WD | Front | — |
| 1982 | Dodge | W150 | — | Front | — |
| 1981 | Dodge | W150 | — | Front | Rotor Only; w/ Locking Hub |
| 1980 | Dodge | W150 | — | Front | Rotor Only; w/ Locking Hub |
