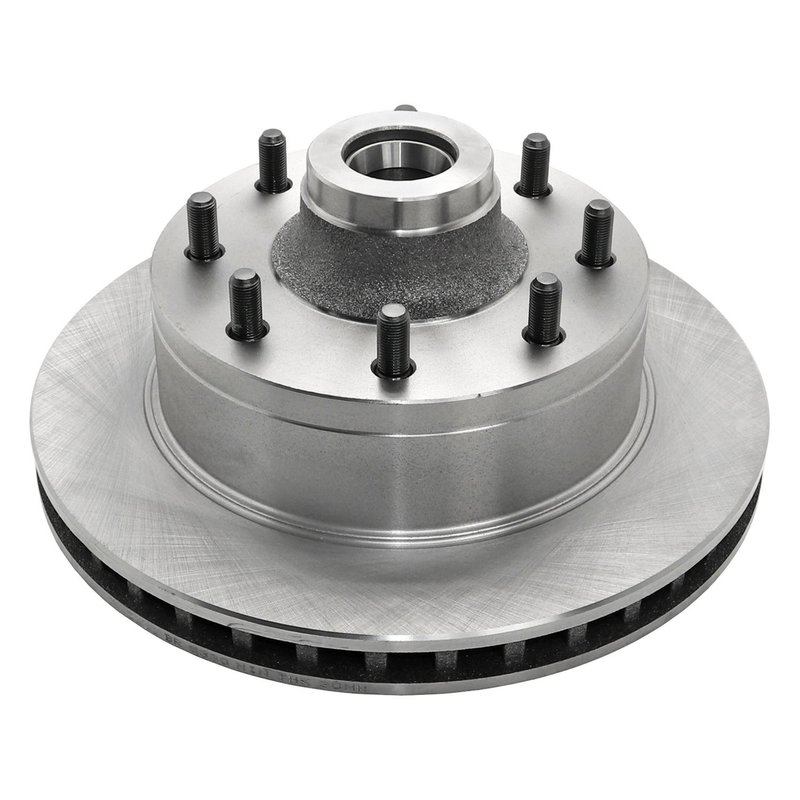

DuraGo BR5330 Disc Brake Rotor and Hub Assembly - Front

Overview of DuraGo BR5330 Disc Brake Rotor and Hub Assembly

The DuraGo BR5330 is a disc brake rotor and hub assembly designed for select Dodge and Plymouth trucks. Engineered to meet specific fitment requirements, this rotor assembly ensures reliable braking performance for models such as the Dodge B2500, B3500, and Plymouth PB350.

• Compatible with Dodge and Plymouth trucks including B250, B300, B350, B2500, B3500, D200, D250, D350, and PB350
• Part number BR5330 for precise identification
• Vented rotor design for improved heat dissipation
• Includes inner and outer bearing cups and wheel studs
• 8 studs with 1/2-20 thread size for secure wheel mounting
• Non-directional brake surface for versatile installation
• Rotor outside diameter of 12.82 inches (325.6 mm)
• Nominal thickness of 1.24 inches (31.6 mm) with discard thickness at 1.18 inches (30 mm)
• Mounting bolt hole circle diameter of 6.5 inches (165.1 mm)

Detailed Product Description

The DuraGo BR5330 disc brake rotor and hub assembly is engineered to provide consistent braking performance for Dodge and Plymouth trucks, including the B250, B300, B350, B2500, B3500, D200, D250, D350, and PB350 models. This assembly features a vented rotor design that helps dissipate heat effectively during braking, reducing the risk of brake fade under heavy use. The rotor measures 12.82 inches in diameter with a nominal thickness of 1.24 inches, ensuring compatibility with factory specifications. The assembly includes both inner and outer bearing cups as well as wheel studs, simplifying installation and ensuring a secure fit. With 8 studs sized at 1/2-20 thread, the hub assembly supports reliable wheel mounting. The non-directional brake surface allows for flexible installation without concern for rotor orientation. Note that this rotor does not include an ABS tone ring or rust-resistant coating.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge B2500 and B3500 trucks
• Restores proper wheel hub function on Plymouth PB350 models
• Addresses brake pulsation caused by uneven rotor thickness
• Solves issues related to bearing wear with included bearing cups
• Improves braking stability on Dodge D200, D250, and D350 trucks

Installation Notes and Tips

• Ensure compatibility with your specific Dodge or Plymouth model before installation
• Check rotor thickness and discard thickness to confirm replacement necessity
• Use proper torque specifications for the 8 wheel studs (1/2-20 thread size)
• Inspect bearing cups for wear and replace if necessary during installation
• Non-directional rotor design allows installation without orientation concerns

Quality Assurance and Warranty

DuraGo manufactures the BR5330 rotor and hub assembly to meet OEM standards for fit and function. While this product does not feature a rust-resistant coating, it includes all necessary components such as bearing cups and wheel studs to ensure a complete and reliable replacement. Warranty coverage details should be confirmed with the original product documentation or supplier.
