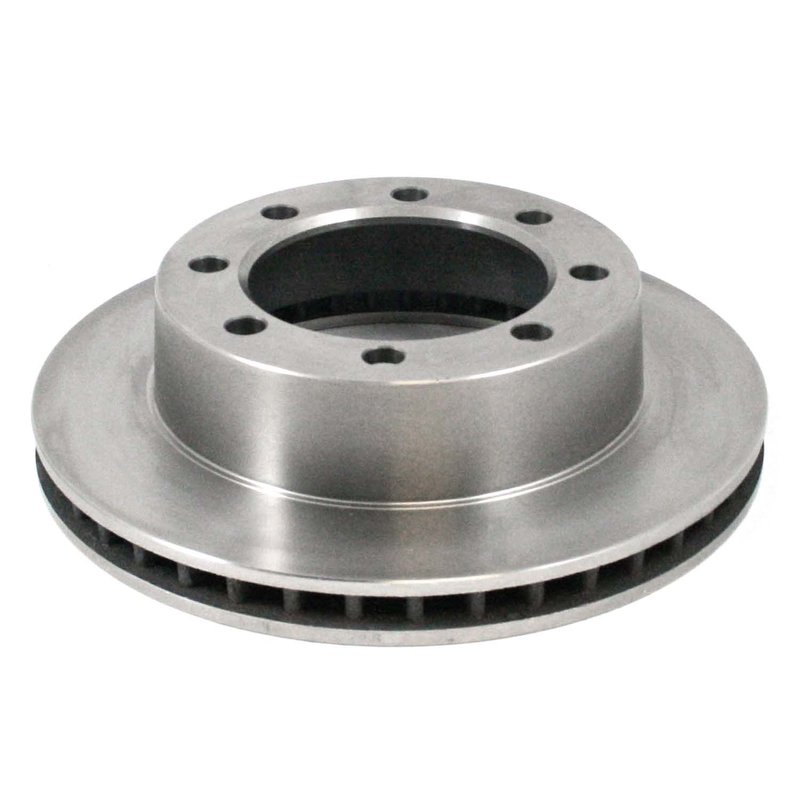

DuraGo BR5349 Disc Brake Rotor - Front

DuraGo BR5349 Front Disc Brake Rotor

The DuraGo BR5349 is a front vented disc brake rotor built from cast iron for specific Dodge W200, W250, and W350 applications. It is a conventional, non-directional rotor with a full cast construction and the dimensions needed for direct-fit brake service on listed heavy-duty Dodge trucks.

Key Features

• Cast iron construction for dependable braking performance
• Vented, conventional rotor design
• Non-directional brake surface
• Outside diameter: 12.82 in. (325.7 mm)
• Nominal thickness: 1.19 in. (30.2 mm)
• Discard thickness: 1.13 in. (28.6 mm)
• Overall height: 3.28 in. (83.2 mm)
• 8-bolt mounting pattern with 6.5 in. bolt circle
• Center hole diameter: 5.13 in. (130.3 mm)
• Cross drilled: No; Slotted: No

Detailed Description

Built for front brake service, DuraGo BR5349 matches the fitment requirements for select 1980-1993 Dodge W-series trucks, including Dodge W200, Dodge W250, and Dodge W350 front axle applications. The rotor uses a full cast, vented design with an 8-bolt mounting pattern and dimensions that align with the listed vehicle specifications. DuraGo manufactures brake drums and rotors through ISO-certified factories, with attention to fit, form, and function for professional repair work. This part cross-references Carlson 7864 and DENSO Auto Parts 5349 for the same application.

Vehicle Fitment

• Fits 1990-1993 Dodge W250, front, 3500 or 3800 lb. FA
• Fits 1981-1989 Dodge W250, front, 3500 lb. FA
• Fits 1984-1985 Dodge W350, front, 3500 lb. FA
• Fits 1984 Dodge W350, front, 3500 lb. FA & 12 x 2 1/2 & 3 Inch Rear Shoe
• Fits 1982-1983 Dodge W350, front, 3500 lb. FA & 2 1/2 & 3 Inch Rear Shoe
• Fits 1980 Dodge W200, front, 3500 lb. FA, 4500 lb. FA & 12 x 2 1/2 Inch Rear Shoe

What It Helps Address

• Front brake pulsation caused by worn rotor surfaces
• Reduced braking consistency from rotor wear beyond discard thickness
• Brake noise related to uneven or damaged rotor faces
• Service needs on Dodge W200, W250, and W350 front brake systems
• Rotor replacement during heavy-duty brake maintenance

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, center hole diameter, and front axle rating before installation. This rotor is for front position use only and is not drilled or slotted. Inspect pads, calipers, and hub surfaces during service to help ensure proper brake operation on the listed Dodge W-series applications.

Quality Assurance

DuraGo brake rotors are produced in ISO-certified factories and built to meet fit, form, and function requirements for professional automotive service. BR5349 is part of DuraGo's brake drum and rotor program for cataloged, first-to-market coverage on select applications.
