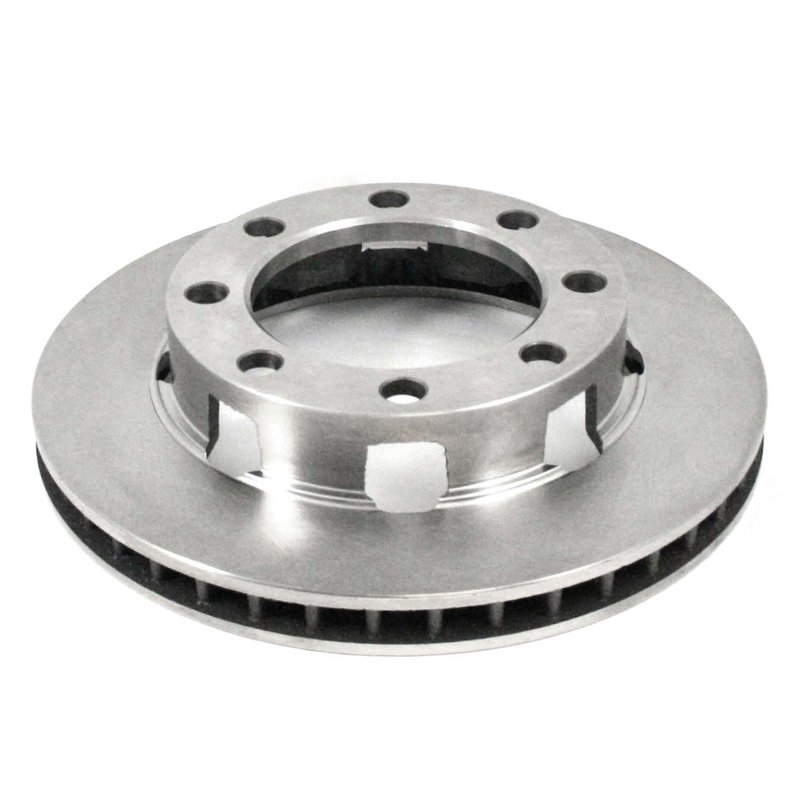

DuraGo BR5350 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Dodge W-Series Trucks

The DuraGo BR5350 disc brake rotor is engineered to provide consistent braking performance for Dodge W200, W250, W300, and W350 models. Crafted from durable cast iron, this rotor is designed to meet the demands of heavy-duty truck applications.

• Material: Full cast iron construction for strength and durability
• Vented rotor design to improve heat dissipation
• Nominal thickness of 1.19 inches (30.1 mm) with discard thickness at 1.13 inches (28.6 mm)
• Outside diameter of 12.87 inches (327 mm) for precise fitment
• Eight mounting bolt holes with a 6.5-inch (165.1 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type compatible with standard braking systems

Durable Construction and Precise Specifications

The DuraGo BR5350 rotor features a full cast iron build, providing the necessary rigidity and wear resistance for reliable braking. Its vented design helps reduce heat buildup during braking, which can prevent warping and extend rotor life. With a nominal thickness of 1.19 inches and a discard thickness of 1.13 inches, this rotor maintains optimal performance until replacement is required. The 12.87-inch outside diameter and eight mounting bolt holes ensure a secure fit on Dodge W200, W250, W300, and W350 trucks. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Applications and Common Uses

This disc brake rotor is specifically compatible with Dodge W-Series trucks, including W200, W250, W300, and W350 models. It is designed for use in conventional braking systems where vented rotors are required.

• Replacement of worn or warped rotors on Dodge W200, W250, W300, and W350
• Addressing brake pulsation or vibration issues
• Restoring braking efficiency and stopping power
• Upgrading from solid to vented rotors for improved heat management
• Maintaining safe braking performance under heavy load conditions

Installation Notes and Tips

When installing the DuraGo BR5350 rotor, ensure the mounting surface is clean and free of rust or debris. Verify the rotor thickness before installation to confirm it meets the minimum discard thickness of 1.13 inches. Use proper torque specifications for the eight mounting bolts to secure the rotor firmly. Since this rotor has a non-directional surface, it can be installed on either side without affecting performance. It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking.

Quality Assurance and Warranty Information

DuraGo manufactures the BR5350 rotor to meet industry standards for durability and performance. While this rotor does not include a rust-resistant coating, its full cast iron construction provides reliable service life under normal operating conditions. Warranty coverage details should be confirmed with the product provider or manufacturer to ensure protection against defects.
