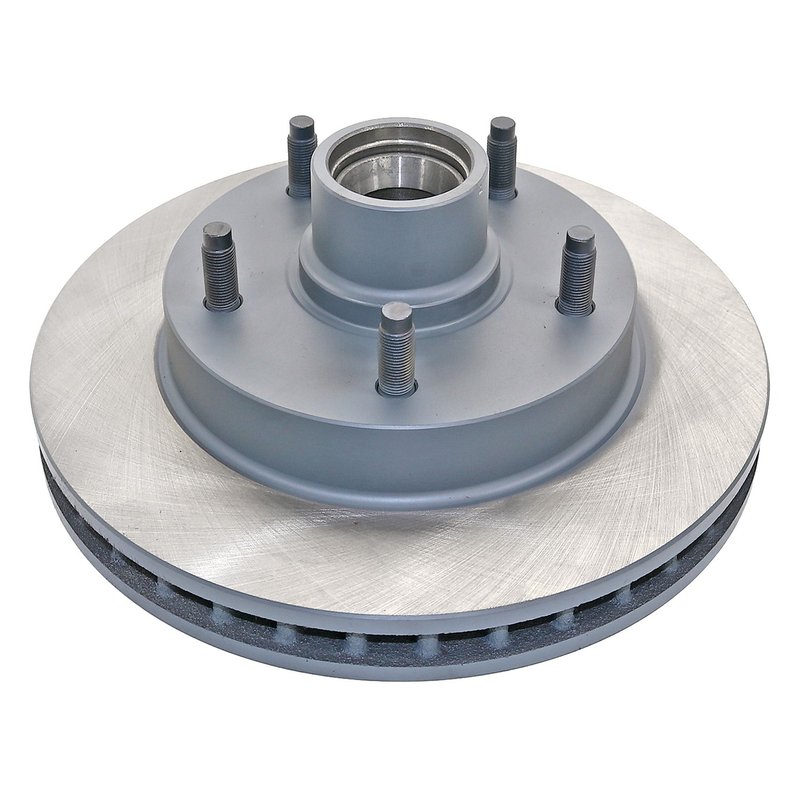

DuraGo BR5357-01 Disc Brake Rotor and Hub Assembly - Front
DuraGo BR5357-01 Front Brake Rotor and Hub Assembly
The DuraGo BR5357-01 is a front disc brake rotor and hub assembly built for 1994-1999 Dodge Ram 1500 applications. It combines a vented rotor design with an integrated hub, ABS tone ring, and corrosion-resistant coating for a clean, service-ready replacement.
Key Features
- Fits 1994-1999 Dodge Ram 1500, front
- Vented rotor construction for front axle braking applications
- Corrosion-resistant coating on the hat and edge
- Titanium gray finish for improved appearance on open-wheel designs
- ABS tone ring included
- Wheel studs included
- Inner bearing cup included
- Outer bearing cup included
- 5-stud hub pattern with 1/2-20 stud thread size
- Rotor outside diameter: 11.61 in. (295 mm)
- Nominal thickness: 1.29 in. (32.7 mm)
- Discard thickness: 1.21 in. (30.86 mm)
- Mounting bolt hole circle diameter: 5.5 in. (139.7 mm)
Detailed Description
Built for front brake service on the Dodge Ram 1500, BR5357-01 is engineered as a rotor and hub assembly that supports fit, form, and function requirements in an ISO-certified manufacturing environment. The vented rotor design helps manage heat during braking, while the non-directional brake surface supports even pad contact. DuraGo’s titanium gray coating helps protect the hat and edge from corrosion, making this part a practical choice for Ram 1500 front brake repair where appearance and durability both matter. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Front brake pulsation caused by worn or warped rotor surfaces
- Corrosion on the rotor hat and outer edge
- ABS signal issues related to a damaged or missing tone ring
- Noise or vibration from an aging hub and rotor assembly
- Brake service needs on 1994-1999 Dodge Ram 1500 front axle applications
Installation Notes and Tips
Confirm rotor diameter, hub dimensions, and stud pattern before installation on your Dodge Ram 1500. Inspect wheel bearings, pads, and caliper hardware during service, and clean the hub mounting surface thoroughly to help prevent runout. Follow vehicle-specific torque procedures for the wheel studs and mounting fasteners.
Quality Assurance
DuraGo manufactures this rotor and hub assembly in an ISO-certified factory and builds it to meet fit, form, and function requirements. The BR5357-01 reflects DuraGo’s experience in brake components and is designed for consistent service on front brake applications.
| Brand | DuraGo |
|---|---|
| Part Number | BR5357-01 |
| Discard Thickness | 1.21 |
| Discard Thickness | 30.86 |
| Nominal Thickness | 1.29 |
| Nominal Thickness | 32.7 |
| Stud Quantity | 5 |
| Stud Thread Size | 1/2-20 |
| Rust Resistant Coating | Yes |
| Overall Height | 114.5 |
| Overall Height | 4.51 |
| ABS Tone Ring Included | Yes |
| Rotor Outside Diameter | 11.61 |
| Rotor Outside Diameter | 295 |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Mounting Bolt Hole Circle Diameter | 139.7 |
| Mounting Bolt Hole Circle Diameter | 5.5 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Cross Drilled | No |
| Inner Bearing Cup Included | Yes |
| Outer Bearing Cup Included | Yes |
| Slotted | No |
| Wheel Studs Included | Yes |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
| 1998 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
| 1997 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
| 1996 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
| 1995 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
| 1994 | Dodge | Ram 1500 | RWD | Front | Coated Hat and Edge for Rust Resistance |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
