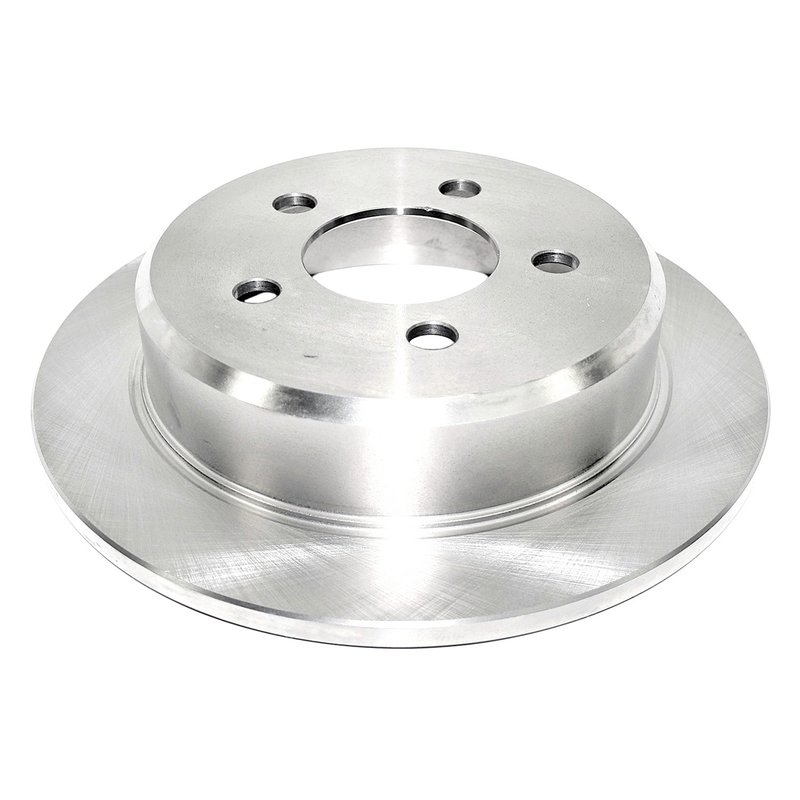

DuraGo BR5360 Disc Brake Rotor - Rear
| Brand | DuraGo BR5360 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.83 |
| Center Hole Diameter | 72 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.37 |
| Discard Thickness | 9.5 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Diameter | 0.61 |
| Mounting Bolt Hole Diameter | 15.6 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.43 |
| Nominal Thickness | 11 |
| Outside Diameter | 11.21 |
| Outside Diameter | 284.7 |
| Overall Height | 2.38 |
| Overall Height | 60.5 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Solid |
| Fits | Jeep · 5 vehicles |
Cast iron construction. Full-cast design delivers dependable braking performance.
Non-directional surface. Helps promote even contact and consistent stopping.
Professional-grade rotor. Manufactured in ISO-certified factories for fit, form, and function.
Cross-references DENSO Auto Parts 5360, Parts Authority PRT1901 and Raybestos Brakes 76451 for the same application. See all 9.
DuraGo BR5360 Rear Drum-in-Hat Rotor
The DuraGo BR5360 is a cast iron disc brake rotor built for rear brake service on select Jeep Grand Cherokee applications. It uses a solid, non-directional brake surface and a drum-in-hat design for vehicles that require integrated parking brake rotor construction.
Key Features
- Cast iron, full cast construction for consistent braking performance
- Solid rotor design with a non-directional brake surface
- Drum-in-hat configuration for rear brake applications
- 5-bolt mounting pattern with 114.3 mm bolt circle diameter
- Outside diameter: 11.21 in. (284.7 mm)
- Nominal thickness: 0.43 in. (11 mm); discard thickness: 0.37 in. (9.5 mm)
- Center hole diameter: 2.83 in. (72 mm)
- Cross-drilled and slotted: No
- ABS tone ring included: No
Application Details
Fits 1994-1998 Jeep Grand Cherokee, rear. This DuraGo BR5360 rotor is a direct-fit rear brake rotor for Jeep Grand Cherokee models in the 1994, 1995, 1996, 1997, and 1998 model years. It is built to meet fit, form, and function requirements for the specified application.
This part cross-references Raybestos Brakes 76451 for the same application.
What This Rotor Helps Address
- Rear brake pulsation caused by worn rotor surfaces
- Brake noise related to uneven rotor wear
- Reduced braking consistency from rotor thickness loss
- Parking brake rotor replacement on drum-in-hat rear setups
- Service needs on a 1994-1998 Jeep Grand Cherokee rear brake system
Installation Notes
Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake issues. After installation, follow the vehicle manufacturer’s brake bedding procedure and confirm proper parking brake operation on drum-in-hat rear systems.
Quality Assurance
DuraGo manufactures brake drums and rotors through ISO-certified factories and focuses on catalog accuracy, application coverage, and dimensional consistency. The BR5360 is produced to meet fit, form, and function requirements for the listed Jeep Grand Cherokee rear application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Jeep | Grand Cherokee | Rear | — |
| 1997 | Jeep | Grand Cherokee | Rear | — |
| 1996 | Jeep | Grand Cherokee | Rear | — |
| 1995 | Jeep | Grand Cherokee | Rear | — |
| 1994 | Jeep | Grand Cherokee | Rear | — |
