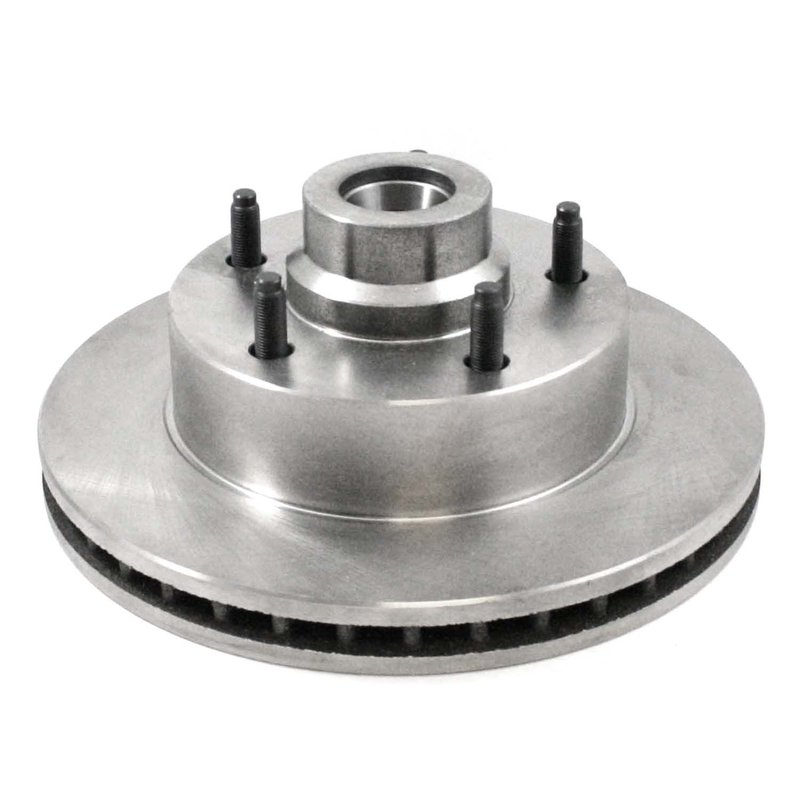

DuraGo BR5389 Disc Brake Rotor and Hub Assembly - Front

Overview of DuraGo BR5389 Disc Brake Rotor and Hub Assembly

The DuraGo BR5389 is a disc brake rotor and hub assembly designed specifically for Dodge B250, B1500, Ram 1500 Van, and Ram 2500 Van models. Engineered to meet precise fitment requirements, this assembly ensures reliable braking performance and proper wheel alignment.

• Compatible with Dodge B250, B1500, Ram 1500 Van, and Ram 2500 Van
• Part number BR5389 for exact replacement
• Vented rotor design for improved heat dissipation
• Includes ABS tone ring for sensor compatibility
• Comes with inner and outer bearing cups and wheel studs
• 5 lug studs with 1/2-20 thread size
• Non-directional brake surface for versatile installation
• Rotor outside diameter: 11.75 inches (298.5 mm)
• Mounting bolt hole circle diameter: 5.5 inches (139.7 mm)

Detailed Product Description

The DuraGo BR5389 disc brake rotor and hub assembly features a vented rotor design that enhances heat dissipation during braking, reducing the risk of brake fade. The rotor has a nominal thickness of 1.24 inches (31.6 mm) and a discard thickness of 1.18 inches (30 mm), ensuring it meets safety and performance standards. This assembly includes an ABS tone ring, which is essential for vehicles equipped with anti-lock braking systems, maintaining sensor accuracy and system functionality.

With five wheel studs sized at 1/2-20 thread, the assembly provides secure wheel mounting. Both inner and outer bearing cups are included, simplifying installation and ensuring proper bearing fitment. The rotor's non-directional brake surface allows for flexible installation without concern for rotor orientation. The overall height of the assembly is 4.98 inches (126.6 mm), matching OEM specifications for the compatible Dodge models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge B250 and B1500 vans
• Restores proper ABS sensor function with included tone ring
• Addresses wheel hub bearing wear with included bearing cups
• Improves braking performance by replacing vented rotors
• Eliminates wheel vibration caused by damaged rotors or hubs

Installation Notes and Tips

• Verify compatibility with your Dodge B250, B1500, Ram 1500 Van, or Ram 2500 Van before installation
• Ensure the ABS tone ring is properly aligned with the sensor during assembly
• Use proper torque specifications for the 5 lug studs (1/2-20 thread size)
• Inspect wheel bearings and replace if necessary when installing the new hub assembly
• Check rotor thickness and discard limits to maintain safe braking performance

Quality Assurance and Warranty

DuraGo manufactures the BR5389 rotor and hub assembly to meet or exceed OEM standards for fit, form, and function. While this product does not include a rust-resistant coating, it is engineered for durability under normal operating conditions. Please consult the product documentation or manufacturer for specific warranty details related to this part number.
