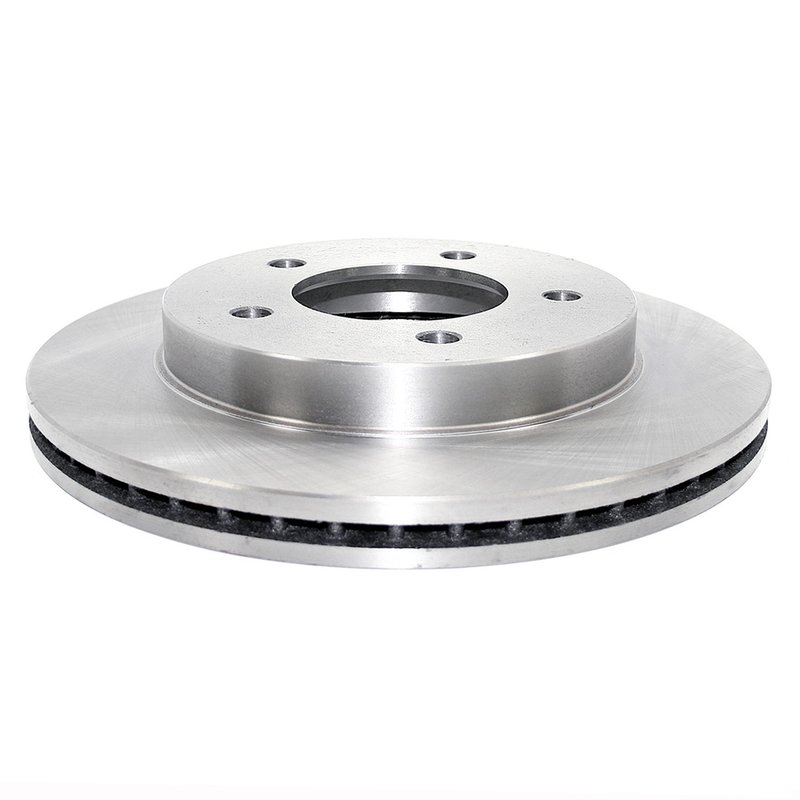

DuraGo BR54042 Disc Brake Rotor - Front

Brand	DuraGo BR54042
Position	Front
ABS Tone Ring Included	No
Center Hole Diameter	3.54
Center Hole Diameter	90
Construction	Full Cast
Conventional Or Drum-In-Hat Type Rotor	Conventional
Cross Drilled	No
Directional or Non-Directional Brake Surface	Non-Directional
Discard Thickness	0.96
Discard Thickness	24.4
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	5.31
Mounting Bolt Hole Circle Diameter	135
Mounting Bolt Hole Diameter	0.59
Mounting Bolt Hole Diameter	15
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.02
Nominal Thickness	26
Outside Diameter	12.13
Outside Diameter	308
Overall Height	2.05
Overall Height	52
Rust Resistant Coating	No
Slotted	No
Solid Or Vented Type Rotor	Vented
Fits	Ford · 9 vehicles

OE-style fit. Manufactured to meet fit, form, and function requirements.

Vented design. Helps promote airflow for more efficient braking performance.

Cast iron construction. Full-cast rotor with a non-directional brake surface.

Cross-references Four Seasons 66630, MAHLE 54042 and Parts Authority PRT5146 for the same application. See all 12.

$55.40Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Disc Brake Rotors are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Disc Brake Rotor options

DuraGo BR54042 Front Brake Rotor

The DuraGo BR54042 is a front disc brake rotor built for select Ford F-150 applications, including the 1997-2004 Ford F-150 Heritage and Ford F-150. It uses a full cast, vented cast iron construction to support consistent braking performance in everyday driving and service replacement work.

Key Features

Cast iron construction with a full cast design
Vented rotor style for front brake applications
Non-directional brake surface
Conventional rotor design
Outside diameter: 12.13 in. (308 mm)
Nominal thickness: 1.02 in. (26 mm)
Discard thickness: 0.96 in. (24.4 mm)
Center hole diameter: 3.54 in. (90 mm)
5-lug bolt pattern with 5 mounting bolt holes
Mounting bolt hole circle diameter: 5.31 in. (135 mm)

Detailed Description

Part number BR54042 is manufactured by DuraGo, a brand with more than 45 years in the aftermarket and a brake drum and rotor program focused on catalog coverage and fit, form, and function. This front rotor is engineered for 1997-1998 Ford F-150 front brake service, 1999-2003 Ford F-150 front brake replacement, and 2004 Ford F-150 Heritage front brake applications. The vented, full cast design and cast iron material provide the structural characteristics expected in a conventional replacement rotor for Ford F-150 front axle service.

This part cross-references MAHLE 54042 for the same application.

Common Uses

Replacing a worn front brake rotor on a Ford F-150
Addressing brake pulsation caused by rotor wear or thickness variation
Restoring proper braking surface condition during front brake service
Replacing a rotor that has reached discard thickness
Servicing front disc brakes on a 1997-2004 Ford F-150 Heritage or Ford F-150

Installation Notes

Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Because this rotor is non-directional and conventional in design, it is installed as a standard front brake rotor on the listed Ford F-150 applications. Always inspect pads, calipers, and wheel bearings during brake service.

Quality Assurance

DuraGo manufactures brake components in ISO-certified factories and builds this rotor to meet fit, form, and function requirements for the listed Ford F-150 and Ford F-150 Heritage applications.

This part fits 9 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Drive Type	Position	Notes
2004	Ford	F-150 Heritage	XL	4WD	Front	5 Lug disc brake rotor
2004	Ford	F-150 Heritage	XLT	4WD	Front	5 Lug disc brake rotor
2003	Ford	F-150	—	4WD	Front	5 Lug disc brake rotor
2002	Ford	F-150	—	4WD	Front	5 Lug disc brake rotor
2001	Ford	F-150	—	4WD	Front	5 Lug disc brake rotor
2000	Ford	F-150	—	4WD	Front	5 Lug disc brake rotor
1999	Ford	F-150	—	4WD	Front	5 Lug disc brake rotor
1998	Ford	F-150	—	4WD	Front	—
1997	Ford	F-150	—	4WD	Front	—
No rows match your filter.

Directly replaces or cross-references 12 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Four Seasons — 66630MAHLE — 54042Parts Authority — PRT514612551212165057AX54042BD125512F65Z1125ACP66630XL3Z1125CBYL3Z1V125DAYL3Z1125AA
