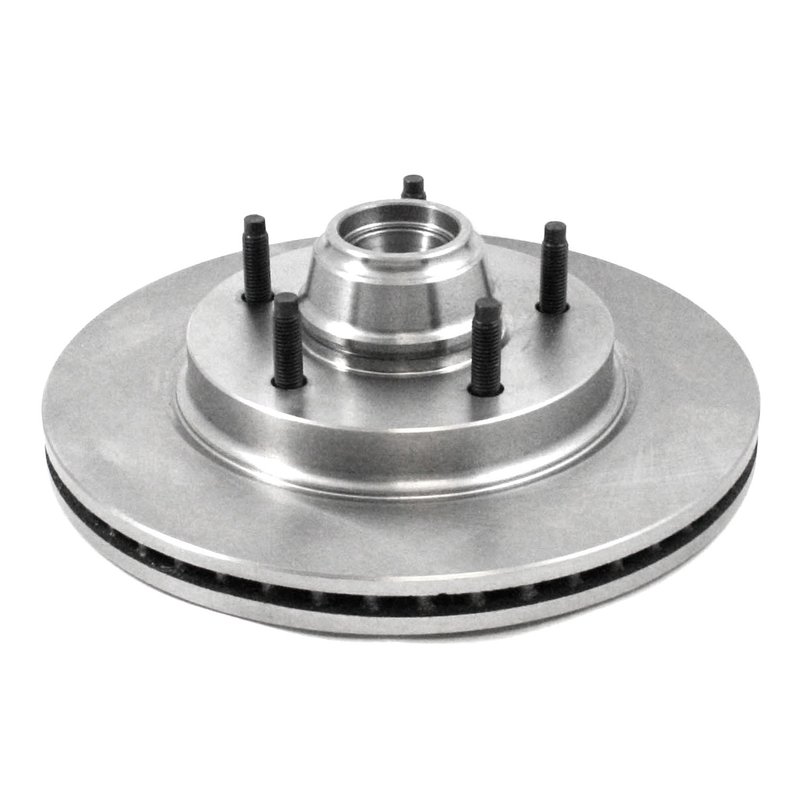

DuraGo BR54069 Disc Brake Rotor and Hub Assembly - Front

Overview of DuraGo BR54069 Disc Brake Rotor and Hub Assembly

The DuraGo BR54069 is a disc brake rotor and hub assembly designed specifically for Ford F-150 models. Engineered to meet precise specifications, this assembly ensures reliable braking performance and proper fitment for your vehicle.

• Compatible with Ford F-150 models
• Vented disc brake rotor design for improved heat dissipation
• Includes inner and outer bearing cups for complete hub assembly
• Five M12 x 1.75 wheel studs included for secure mounting
• Non-directional brake surface for versatile installation
• Rotor outside diameter: 12.13 inches (308 mm)
• Nominal thickness: 1.02 inches (26 mm); discard thickness: 0.97 inches (24.7 mm)
• Mounting bolt hole circle diameter: 135 mm (5.31 inches)
• Overall height: 4.09 inches (104 mm)

Detailed Product Description

The DuraGo BR54069 disc brake rotor and hub assembly is engineered to provide consistent braking performance for Ford F-150 trucks. Featuring a vented rotor design, it helps dissipate heat effectively during braking, reducing the risk of brake fade under heavy use. The rotor measures 12.13 inches in diameter with a nominal thickness of 1.02 inches, ensuring compatibility with factory specifications. This assembly includes both inner and outer bearing cups, as well as five M12 x 1.75 wheel studs, providing a complete hub solution for straightforward installation. The non-directional brake surface allows for flexible mounting without concern for rotor orientation. While this rotor does not include an ABS tone ring or rust-resistant coating, it meets the necessary standards for reliable operation in typical driving conditions.

Common Applications and Problem Resolution

• Replacement for worn or warped rotors on Ford F-150 models
• Addresses brake pulsation caused by uneven rotor surfaces
• Resolves excessive brake noise due to damaged or corroded rotors
• Restores proper wheel hub function with included bearing cups
• Improves braking stability and safety by maintaining correct rotor thickness

Installation Notes and Tips

• Verify compatibility with your specific Ford F-150 year and trim before installation
• Ensure rotor thickness is within nominal specifications; replace if below discard thickness
• Use proper torque specifications on wheel studs (M12 x 1.75 thread size)
• Inspect and lubricate bearing cups during installation for smooth hub operation
• Check for any signs of rotor runout or uneven wear after installation

Quality Assurance and Warranty Information

DuraGo manufactures the BR54069 rotor and hub assembly to meet industry standards for durability and performance. While this product does not feature a rust-resistant coating, it is constructed to provide reliable service life under normal operating conditions. Please consult the product packaging or manufacturer documentation for specific warranty details related to this part number.
