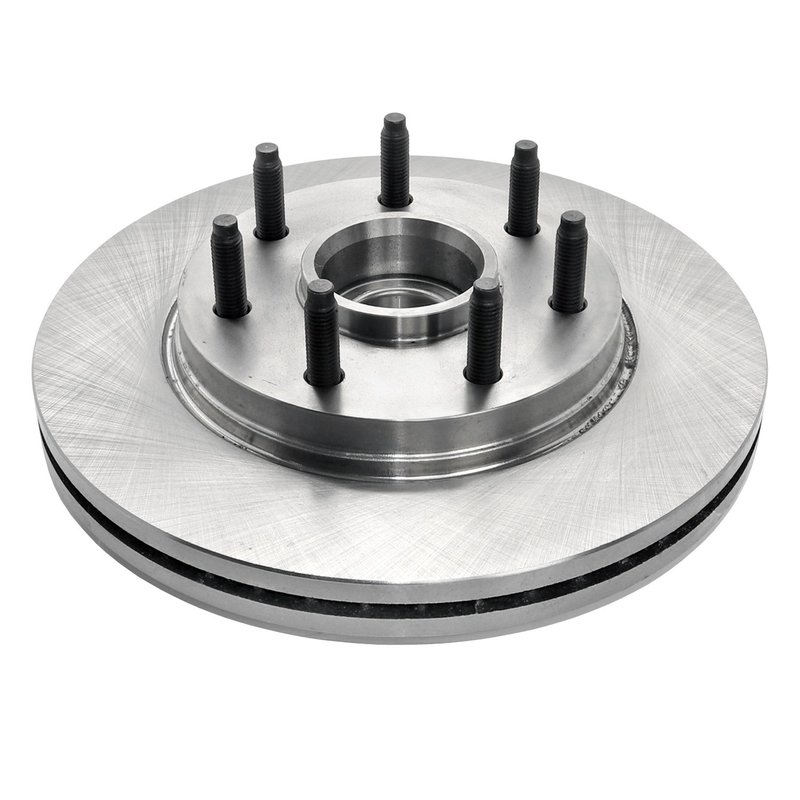

DuraGo BR54108 Disc Brake Rotor and Hub Assembly - Front
Durable Disc Brake Rotor and Hub Assembly for Ford F-150 and Lincoln Mark LT
The DuraGo BR54108 disc brake rotor and hub assembly is engineered to meet the braking demands of Ford F-150 and Lincoln Mark LT trucks. Designed with precision, this vented rotor assembly includes an ABS tone ring and wheel studs for reliable performance and safety.
Key Features of DuraGo BR54108 Rotor and Hub Assembly
- Compatible with Ford F-150 and Lincoln Mark LT models
- Vented disc brake rotor with a 12.99-inch (330 mm) outside diameter for effective heat dissipation
- Includes ABS tone ring for accurate anti-lock braking system functionality
- Seven wheel studs with M14 x 2 thread size included for secure wheel mounting
- Non-directional brake surface suitable for various driving conditions
- Mounting bolt hole circle diameter of 150 mm (5.91 inches) for precise fitment
- Overall height of 3.63 inches (92.2 mm) ensuring proper hub assembly integration
- Nominal rotor thickness of 1.18 inches (30 mm) with discard thickness at 1.12 inches (28.5 mm)
Detailed Product Description
The DuraGo BR54108 disc brake rotor and hub assembly is designed specifically for Ford F-150 and Lincoln Mark LT vehicles, providing a direct replacement that maintains factory specifications. This vented rotor design improves heat dissipation during braking, reducing the risk of brake fade under heavy use. The inclusion of an ABS tone ring ensures compatibility with the vehicle’s anti-lock braking system, maintaining safety and control. With seven wheel studs included, installation is streamlined, and the M14 x 2 thread size matches OEM requirements. The non-directional brake surface allows for flexible installation without concern for rotor orientation.
Common Applications and Issues Addressed
- Replacement for worn or warped rotors causing brake pulsation
- Upgrading brake components to restore ABS functionality
- Resolving noise or vibration issues related to hub assembly wear
- Addressing rotor thickness below discard limits to maintain braking efficiency
- Ensuring proper wheel stud integrity for safe wheel mounting
Installation Notes and Tips
- Verify vehicle compatibility with Ford F-150 or Lincoln Mark LT before installation
- Check rotor thickness and discard limits to ensure replacement necessity
- Use proper torque specifications for wheel studs (M14 x 2 thread size)
- Inspect ABS tone ring sensor alignment during installation
- Ensure mounting bolt hole circle diameter matches vehicle hub for secure fit
Quality Assurance and Warranty Information
DuraGo brake components are manufactured to meet or exceed OEM standards for fit, form, and function. The BR54108 rotor and hub assembly undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, DuraGo typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
| Brand | DuraGo |
|---|---|
| Part Number | BR54108 |
| ABS Tone Ring Included | Yes |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.12 |
| Discard Thickness | 28.5 |
| Inner Bearing Cup Included | No |
| Mounting Bolt Hole Circle Diameter | 5.91 |
| Mounting Bolt Hole Circle Diameter | 150 |
| Nominal Thickness | 1.18 |
| Nominal Thickness | 30 |
| Outer Bearing Cup Included | No |
| Overall Height | 3.63 |
| Overall Height | 92.2 |
| Rotor Outside Diameter | 12.99 |
| Rotor Outside Diameter | 330 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Stud Quantity | 7 |
| Stud Thread Size | M14 x 2 |
| Wheel Studs Included | Yes |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Ford | F-150 | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2008 | Lincoln | Mark LT | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2007 | Ford | F-150 | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2007 | Lincoln | Mark LT | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2006 | Ford | F-150 | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2006 | Lincoln | Mark LT | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2005 | Ford | F-150 | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
| 2004 | Ford | F-150 | RWD | Front | 7 Lug; Includes hub bearing; spindle nut must be replaced! Torque spindle nut to 295 ft-lbs (400 Nm), rotate 5 times in counterclockwise direction and recheck torque. This ensures bearing seat. Failure will result if not completed correctly. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
