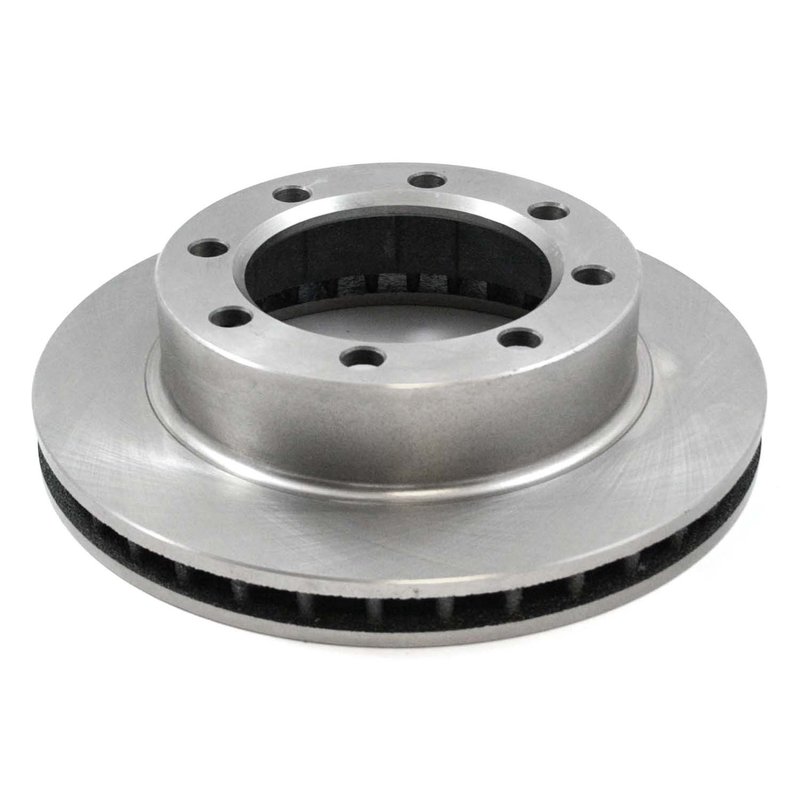

DuraGo BR5445 Disc Brake Rotor - Front

DuraGo BR5445 Front Vented Brake Rotor

The DuraGo BR5445 is a front disc brake rotor built from cast iron with a full cast construction for Ford truck applications. It features a vented, non-directional brake surface and is sized for vehicles that require a 12.56-inch outside diameter, 8-bolt mounting pattern, and a 5.13-inch center hole.

Key Features

• Cast iron construction for consistent braking performance
• Full cast rotor design
• Vented rotor style for front brake applications
• Non-directional brake surface
• 8 mounting bolt holes with a 6.5-inch bolt circle diameter
• Outside diameter: 12.56 in. (319 mm)
• Nominal thickness: 1.25 in. (31.8 mm)
• Discard thickness: 1.18 in. (30 mm)
• Overall height: 3.21 in. (81.5 mm)
• Cross-drilled: No; Slotted: No

Fitment Details

• Fits 1980-1994 Ford F-250, front.
• Fits 1979-1994 Ford F-350, front, rotor only.
• Fits 1977-1979 Ford F-250, front, except 3,500 lb. axle.

This part cross-references Anchor 6084 and Dorman - HELP 54000 for the same application. The BR5445 also aligns with interchange references including 5445 and 5499 for select Ford front brake rotor applications.

What It Helps Address

• Front brake pulsation caused by worn rotor surfaces
• Reduced braking consistency from rotor wear beyond discard thickness
• Brake noise related to uneven rotor contact surfaces
• Service replacement needs on Ford F-250 and Ford F-350 front brake systems
• Rotor replacement after heat-related wear or surface scoring

Installation Notes

Verify rotor dimensions, bolt pattern, and center hole diameter before installation. This rotor is for front use and is listed as a conventional, vented disc brake rotor with no ABS tone ring, no cross-drilling, and no slots. Confirm vehicle-specific fitment for the exact Ford F-250 or Ford F-350 year and axle configuration before service.

Quality Assurance

DuraGo has over 45 years of aftermarket manufacturing experience, and its brake drum and rotor program is produced in ISO-certified factories to support fit, form, and function requirements. The BR5445 is built to meet professional replacement standards for Ford front brake service.
