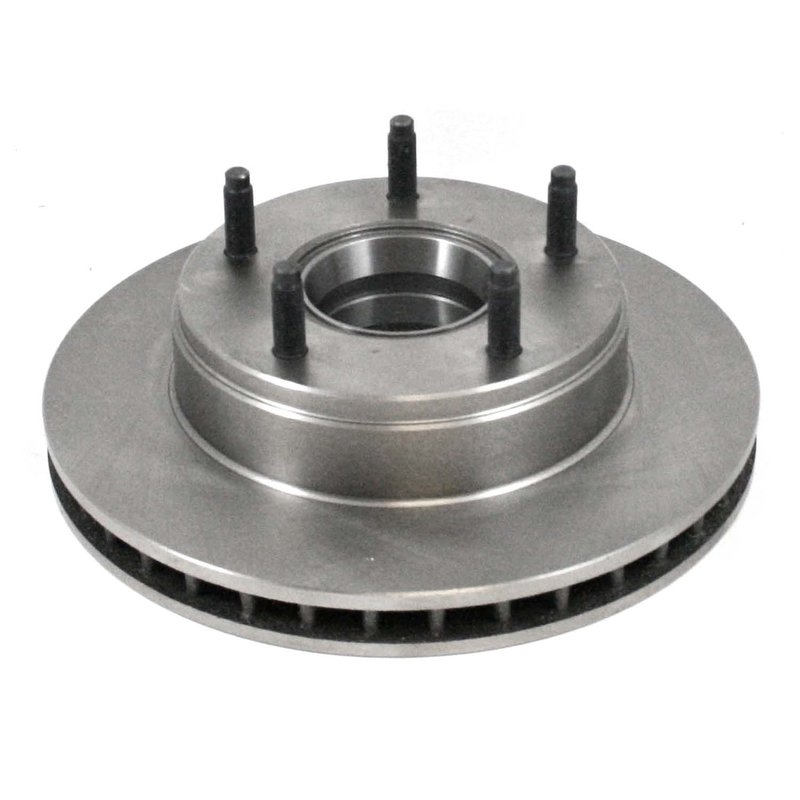

DuraGo BR5460 Disc Brake Rotor and Hub Assembly - Front

Reliable Disc Brake Rotor and Hub Assembly for Ford Bronco and F-150

The DuraGo BR5460 disc brake rotor and hub assembly is engineered to meet the braking needs of Ford Bronco and F-150 models. Designed with precision, this vented rotor assembly ensures consistent performance and durability for your vehicle's braking system.

• Compatible with Ford Bronco and Ford F-150 models
• Vented disc brake rotor for improved heat dissipation
• Includes inner and outer bearing cups for complete hub assembly
• Five 1/2-20 wheel studs included for secure mounting
• Non-directional brake surface for versatile installation
• Rotor outside diameter: 11.71 inches (297.5 mm)
• Overall height: 2.97 inches (75.5 mm)
• Mounting bolt hole circle diameter: 5.5 inches (139.7 mm)
• Discard thickness: 1.12 inches (28.5 mm), Nominal thickness: 1.19 inches (30.1 mm)

Detailed Product Description

The DuraGo BR5460 disc brake rotor and hub assembly is designed specifically for Ford Bronco and F-150 vehicles, providing a direct replacement that maintains factory specifications. This assembly features a vented rotor design, which enhances heat dissipation during braking, reducing the risk of brake fade under heavy use. The rotor has a non-directional brake surface, allowing for flexible installation without concern for rotor orientation.

Included in the assembly are the inner and outer bearing cups, ensuring a complete hub setup for ease of installation. The five included wheel studs with a 1/2-20 thread size provide secure attachment to the wheel, matching the OEM configuration. The rotor's outside diameter measures 11.71 inches (297.5 mm), with an overall height of 2.97 inches (75.5 mm), and a mounting bolt hole circle diameter of 5.5 inches (139.7 mm), all aligning with Ford's original equipment standards.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing excessive brake noise due to damaged rotor surfaces
• Resolving uneven brake pad wear linked to rotor thickness issues
• Upgrading to a complete hub assembly for improved wheel bearing performance
• Fixing wheel stud damage or corrosion affecting wheel security

Installation Notes and Tips

When installing the DuraGo BR5460 rotor and hub assembly on Ford Bronco or F-150 models, ensure the wheel studs are torqued to manufacturer specifications to maintain wheel security. Since the rotor surface is non-directional, it can be installed on either side without concern for directional rotation. Verify the discard thickness of 1.12 inches (28.5 mm) and replace the rotor if worn below this limit to maintain braking efficiency. The included inner and outer bearing cups simplify installation, but proper bearing lubrication and adjustment are essential for optimal hub performance.

Quality Assurance and Warranty

DuraGo manufactures the BR5460 rotor and hub assembly to meet or exceed OEM standards for fit, form, and function. While this product does not include a rust-resistant coating, it is engineered for durability under normal operating conditions. Please refer to DuraGo's warranty policy for specific coverage details related to defects in materials and workmanship.
