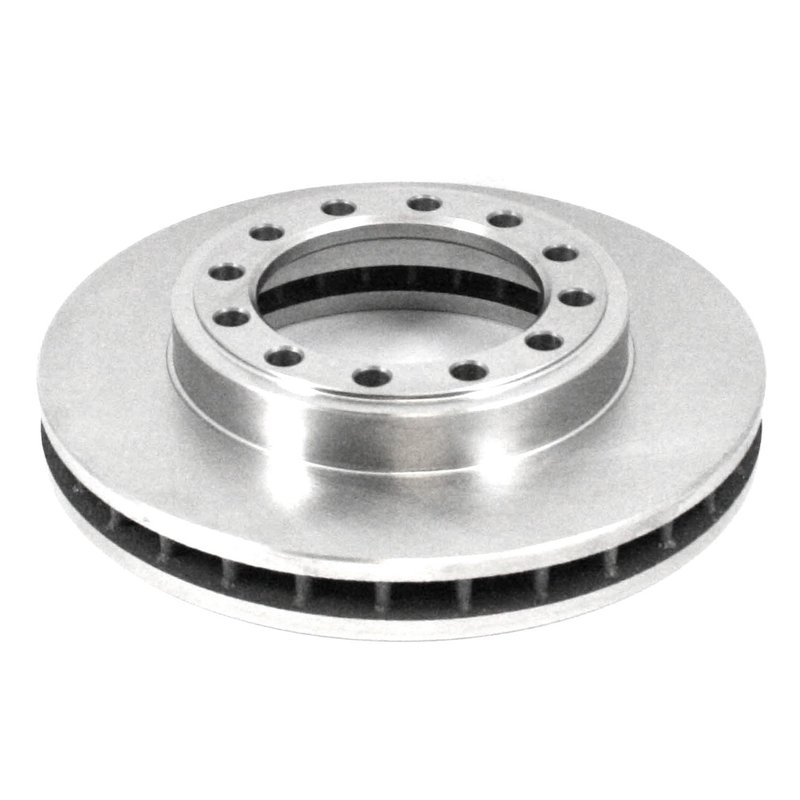

DuraGo BR55035 Disc Brake Rotor - Front

Reliable DuraGo BR55035 Disc Brake Rotor Overview

The DuraGo BR55035 disc brake rotor is engineered from durable cast iron to provide consistent braking performance. Designed as a vented rotor with a full cast construction, it offers effective heat dissipation for vehicles requiring dependable stopping power.

• Material: Cast iron for strength and durability
• Vented design to improve heat dissipation
• Full cast construction for structural integrity
• Nominal thickness of 1.38 inches (35 mm) with discard thickness at 1.26 inches (32 mm)
• Outside diameter of 11.1 inches (282 mm) suitable for specific vehicle applications
• 12 mounting bolt holes with a 5.31 inch (135 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type without ABS tone ring

Detailed Product Description and Specifications

The DuraGo BR55035 rotor is constructed from cast iron, a material known for its wear resistance and heat management capabilities. Its vented design allows air to flow between the rotor surfaces, reducing the risk of brake fade during extended use. With a nominal thickness of 1.38 inches (35 mm) and a discard thickness of 1.26 inches (32 mm), this rotor meets precise wear limits to maintain braking efficiency and safety.

The rotor measures 11.1 inches (282 mm) in outside diameter and features 12 mounting bolt holes arranged on a 5.31 inch (135 mm) bolt circle diameter, ensuring compatibility with specific vehicle models. The center hole diameter is 4.33 inches (110.1 mm), and the overall height is 2.45 inches (62.2 mm). This conventional, non-directional rotor does not include an ABS tone ring and is designed for vehicles that do not require cross-drilled or slotted rotors.

Compatible Vehicles and Common Applications

• Replacement rotor for select trucks and SUVs requiring 11.1 inch diameter vented rotors
• Suitable for vehicles with 12-bolt mounting patterns and 5.31 inch bolt circle diameter
• Ideal for addressing brake noise, vibration, or reduced stopping power
• Used to replace worn or warped rotors to restore braking performance
• Applicable for vehicles needing rotors without rust-resistant coating or ABS tone ring

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Check compatibility with vehicle bolt pattern and hub dimensions
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads and hardware during rotor replacement

Quality Assurance and Warranty Information

DuraGo rotors are manufactured to meet industry standards for durability and performance. While this product does not include a rust-resistant coating, its cast iron construction provides reliable wear resistance. Please consult DuraGo or the vehicle manufacturer for specific warranty details related to the BR55035 rotor.
