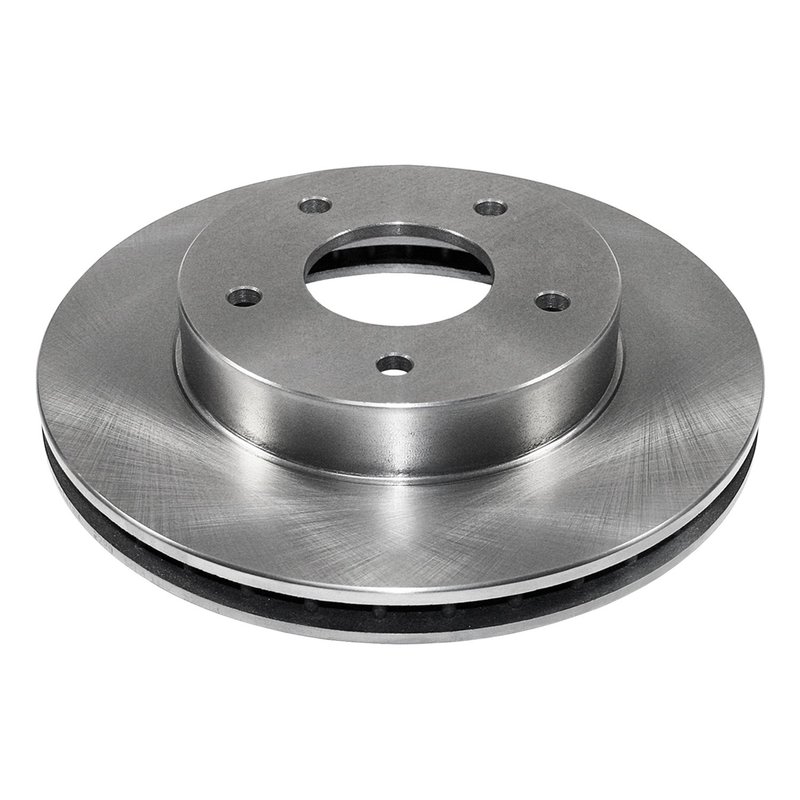

DuraGo BR5560 Disc Brake Rotor - Rear

Overview of DuraGo BR5560 Disc Brake Rotor

The DuraGo BR5560 disc brake rotor is engineered for reliable braking performance on Pontiac Firebird models. Crafted from durable cast iron, this vented rotor is designed to maintain consistent stopping power under various driving conditions.

• Material: Cast iron for strength and heat dissipation
• Vented rotor design to improve cooling
• Nominal thickness: 0.97 inches (24.7 mm)
• Discard thickness: 0.91 inches (23 mm)
• Outside diameter: 11.14 inches (283 mm)
• Mounting bolt hole quantity: 5 with 0.51 inch (13 mm) diameter
• Overall height: 2.19 inches (55.6 mm)
• Non-directional brake surface for versatile installation
• Conventional rotor type without ABS tone ring

Detailed Product Description

The DuraGo BR5560 is a full cast disc brake rotor specifically designed for the Pontiac Firebird. Its cast iron construction provides a balance of durability and effective heat dissipation, essential for maintaining braking efficiency. The vented design allows air to flow between the rotor surfaces, reducing heat buildup during braking and helping to prevent brake fade. With a nominal thickness of 0.97 inches and a discard thickness of 0.91 inches, this rotor meets the necessary specifications for safe replacement. The rotor features five mounting bolt holes with a 114.3 mm bolt circle diameter, ensuring proper fitment on compatible Firebird models. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Applications

• Compatible with Pontiac Firebird models requiring a 283 mm (11.14 inch) disc brake rotor
• Suitable for vehicles using conventional, vented rotors with 5 mounting bolts
• Designed for applications without ABS tone ring requirements
• Ideal replacement for worn or damaged rotors to restore braking performance

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.91 inches) before installation
• Clean mounting surface to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check brake pads for wear and replace if necessary during rotor installation
• Perform a test drive to verify proper braking function after installation

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet industry standards for material quality and dimensional accuracy. While this product does not include a rust-resistant coating, proper maintenance and installation will help ensure long service life. Warranty coverage details should be confirmed with the original product documentation or supplier.
