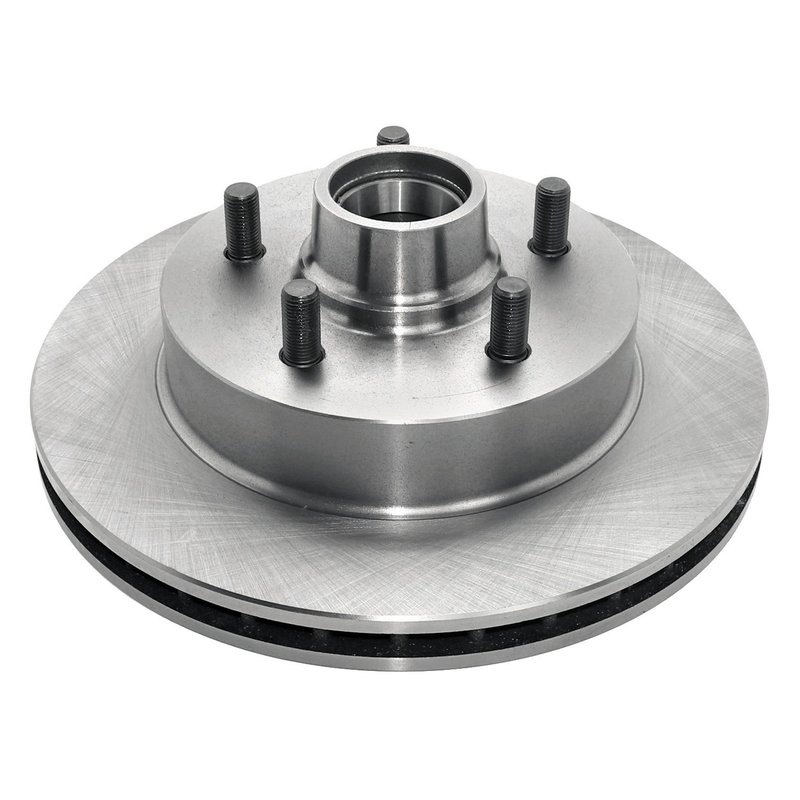

DuraGo BR5570 Disc Brake Rotor and Hub Assembly - Front

Overview of DuraGo BR5570 Disc Brake Rotor and Hub Assembly

The DuraGo BR5570 is a disc brake rotor and hub assembly designed specifically for Chevrolet and GMC C1500 models. Engineered to meet the precise specifications required for these vehicles, this assembly ensures reliable braking performance and proper fitment.

• Compatible with Chevrolet and GMC C1500 trucks
• Part number BR5570 for easy identification
• Vented rotor design for improved heat dissipation
• Includes inner and outer bearing cups and wheel studs
• 5 stud quantity with M14 x 1.5 thread size
• Non-directional brake surface for versatile installation
• Rotor outside diameter of 11.6 inches (294.7 mm)
• Mounting bolt hole circle diameter of 127 mm (5 inches)
• Discard thickness at 0.96 inches (24.5 mm) and nominal thickness at 1.04 inches (26.3 mm)
• Overall height of 4.19 inches (106.5 mm)

Detailed Product Description

The DuraGo BR5570 disc brake rotor and hub assembly is engineered to provide consistent braking performance for Chevrolet and GMC C1500 trucks. Featuring a vented rotor design, it helps dissipate heat effectively during braking, reducing the risk of brake fade under heavy use. The rotor measures 11.6 inches in diameter and has a nominal thickness of 1.04 inches, with a discard thickness of 0.96 inches, ensuring it meets OEM specifications for safe operation. This assembly includes both inner and outer bearing cups as well as wheel studs, simplifying installation and ensuring a secure fit. The 5-stud configuration with M14 x 1.5 thread size matches the factory setup for these vehicles. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet and GMC C1500
• Addresses brake pulsation and vibration issues
• Restores proper hub alignment and wheel stud integrity
• Improves braking consistency and heat management
• Suitable for trucks experiencing bearing wear or damage

Installation Notes and Tips

• Ensure compatibility with Chevrolet and GMC C1500 before installation
• Check rotor thickness and discard limits to confirm replacement necessity
• Use proper torque specifications for wheel studs and mounting bolts
• Inspect bearing cups included in the assembly for proper seating
• Brake system should be inspected and serviced as needed during installation

Quality Assurance and Warranty

DuraGo brake components are manufactured to meet or exceed industry standards for durability and performance. While this product does not include a rust-resistant coating, it is designed for reliable operation under normal driving conditions. The BR5570 assembly comes with a limited warranty against defects in materials and workmanship, providing confidence in its long-term use on Chevrolet and GMC C1500 trucks.
