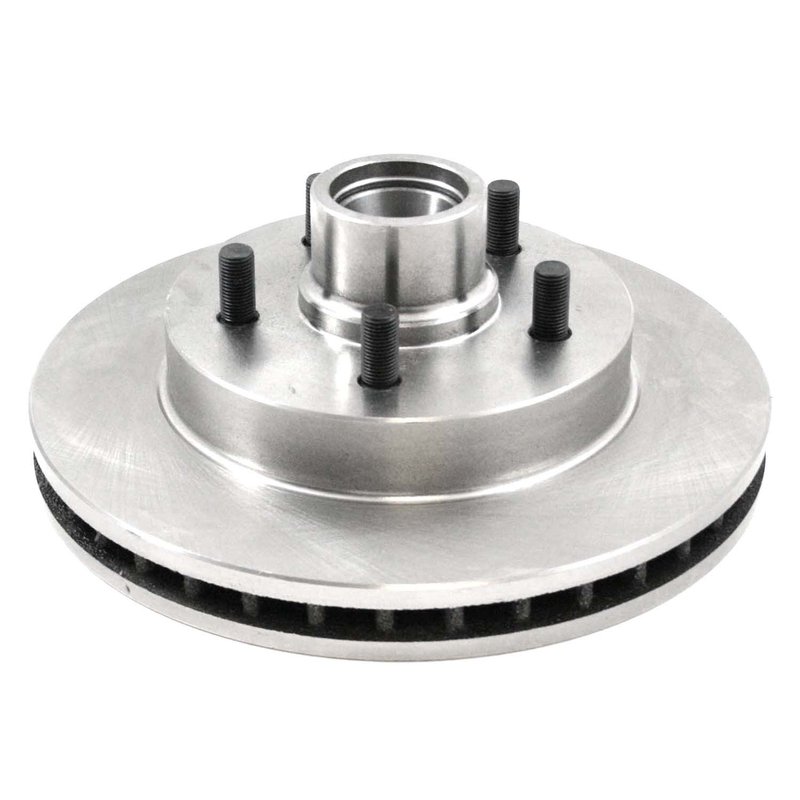

DuraGo BR5594 Disc Brake Rotor and Hub Assembly - Front
| Brand | DuraGo BR5594 |
|---|---|
| Position | Front |
| ABS Tone Ring Included | No |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.21 |
| Discard Thickness | 30.86 |
| Inner Bearing Cup Included | Yes |
| Mounting Bolt Hole Circle Diameter | 5 |
| Mounting Bolt Hole Circle Diameter | 127 |
| Nominal Thickness | 1.28 |
| Nominal Thickness | 32.6 |
| Outer Bearing Cup Included | Yes |
| Overall Height | 4.51 |
| Overall Height | 114.6 |
| Rotor Outside Diameter | 11.61 |
| Rotor Outside Diameter | 295 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Vented |
| Stud Quantity | 5 |
| Stud Thread Size | M14 x 1.5 |
| Wheel Studs Included | Yes |
| Fits | Chevrolet and GMC · 14 vehicles |
Vented rotor design. Promotes efficient airflow for more consistent braking performance.
Bearing cups included. Ready for a more complete hub assembly installation.
Wheel studs included. Adds key hardware to simplify assembly.
Cross-references Anchor 8004, Atlantic Automotive Engineering 5594 and Parts Authority PRT1830 for the same application. See all 12.
DuraGo BR5594 Front Disc Brake Rotor and Hub Assembly
The DuraGo BR5594 is a front disc brake rotor and hub assembly built for select Chevrolet C1500 and GMC C1500 applications. It combines a vented rotor design with integrated hub components to support proper brake service on the listed vehicles.
Key Features
- Front disc brake rotor and hub assembly for select Chevrolet C1500 and GMC C1500 models
- Vented rotor design with a 11.61 in. (295 mm) outside diameter
- Nominal thickness: 1.28 in. (32.6 mm); discard thickness: 1.21 in. (30.86 mm)
- 5-stud pattern with M14 x 1.5 stud thread size
- Mounting bolt hole circle diameter: 5 in. (127 mm)
- Overall height: 4.51 in. (114.6 mm)
- Non-directional brake surface for consistent pad contact
- Inner bearing cup, outer bearing cup, and wheel studs included
- No cross-drilling, no slots, and no ABS tone ring included
Detailed Description
DuraGo BR5594 is engineered as a front rotor and hub assembly for 1988-1994 Chevrolet C1500 and 1988-1994 GMC C1500 trucks in the listed front position. The vented rotor construction helps manage heat during braking, while the non-directional surface supports even pad bedding and service consistency. This part number, BR5594, is a direct-fit option for applications that require the specified 5-stud hub pattern, bearing cups, and wheel studs.
DuraGo has more than 45 years of aftermarket manufacturing experience and produces brake components through ISO certified factories focused on fit, form, and function. This part cross-references Anchor 8004 for the same application.
What It Is Used For
- Replacing a worn or damaged front rotor and hub assembly on a Chevrolet C1500
- Replacing a worn or damaged front rotor and hub assembly on a GMC C1500
- Correcting brake pulsation caused by rotor wear or thickness loss
- Addressing hub-related noise or looseness tied to bearing cup wear
- Restoring proper front brake service on 1988-1994 Chevrolet C1500 and GMC C1500 trucks
Installation Notes and Tips
Verify rotor thickness, hub dimensions, stud pattern, and bearing fit before installation. Clean the mounting surfaces thoroughly and inspect the brake pads, bearings, and seals during service. Because this assembly is listed for the front position, confirm left/right axle-side requirements and vehicle configuration against the application before beginning work.
Quality Assurance
DuraGo manufactures brake components in ISO certified factories and emphasizes catalog accuracy and application coverage for professional repair use. The BR5594 is built to meet fit, form, and function requirements for the listed Chevrolet C1500 and GMC C1500 front applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1994 | Chevrolet | C1500 | Front | — |
| 1994 | GMC | C1500 | Front | — |
| 1993 | Chevrolet | C1500 | Front | — |
| 1993 | GMC | C1500 | Front | — |
| 1992 | Chevrolet | C1500 | Front | — |
| 1992 | GMC | C1500 | Front | — |
| 1991 | Chevrolet | C1500 | Front | 4.51 Inch Overall Height |
| 1991 | GMC | C1500 | Front | 4.51 Inch Overall Height |
| 1990 | Chevrolet | C1500 | Front | 4.51 Inch Overall Height |
| 1990 | GMC | C1500 | Front | 4.51 Inch Overall Height |
| 1989 | Chevrolet | C1500 | Front | 4.51 Inch Overall Height |
| 1989 | GMC | C1500 | Front | 4.51 Inch Overall Height |
| 1988 | Chevrolet | C1500 | Front | 4.51 Inch Overall Height |
| 1988 | GMC | C1500 | Front | 4.51 Inch Overall Height |
