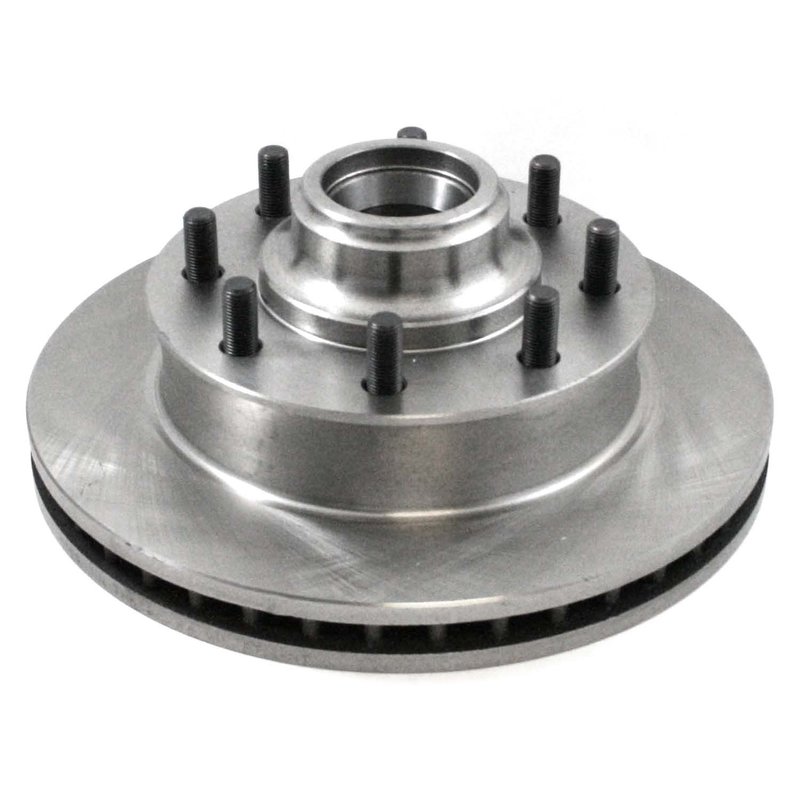

DuraGo BR5598 Disc Brake Rotor and Hub Assembly - Front

Overview of DuraGo BR5598 Disc Brake Rotor and Hub Assembly

The DuraGo BR5598 is a vented disc brake rotor and hub assembly designed for select Chevrolet and GMC trucks and vans. Engineered to meet the specific requirements of models like the Chevrolet C1500 Suburban and GMC Savana 3500, this assembly integrates essential components for reliable braking performance.

• Compatible with Chevrolet C1500 Suburban, C2500, C2500 Suburban, C3500, Express 2500, Express 3500, GMC G30, Savana 2500, and Savana 3500
• Part number BR5598 for precise identification
• Vented rotor design with a 12.5-inch (317.5 mm) outside diameter
• Includes ABS tone ring for anti-lock braking system compatibility
• Eight M14 x 1.5 wheel studs included for secure mounting
• Inner and outer bearing cups included for complete hub assembly
• Non-directional brake surface suitable for various driving conditions

Technical Specifications and Features

The DuraGo BR5598 rotor and hub assembly features a nominal rotor thickness of 1.28 inches (32.6 mm) and a discard thickness of 1.21 inches (30.86 mm), ensuring proper wear limits are maintained. The rotor is vented to improve heat dissipation during braking, reducing the risk of brake fade. The assembly includes an ABS tone ring, which is essential for vehicles equipped with anti-lock braking systems, providing accurate wheel speed data.

The hub assembly comes with eight wheel studs sized M14 x 1.5, matching the bolt hole circle diameter of 6.5 inches (165.1 mm). Both inner and outer bearing cups are included, facilitating a complete replacement without the need for additional parts. The overall height of the assembly is 4.96 inches (126 mm), designed to fit the specified Chevrolet and GMC models precisely.

Applications and Problem Solving

• Replacement for worn or damaged disc brake rotors and hubs on Chevrolet C1500 Suburban and GMC Savana 3500
• Addresses issues with brake rotor thickness below discard limits
• Resolves ABS sensor errors by including the ABS tone ring
• Eliminates wheel hub bearing noise or play with included bearing cups
• Improves braking performance by restoring proper rotor and hub function

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Check rotor thickness and discard limits to confirm replacement necessity
• Use proper torque specifications for wheel studs (M14 x 1.5) during installation
• Inspect ABS sensor and wiring when replacing the rotor with tone ring
• Grease bearing cups appropriately to prevent premature wear

Quality Assurance and Warranty

DuraGo manufactures the BR5598 rotor and hub assembly to meet OEM standards for fit and function. While this product does not feature a rust-resistant coating, it is engineered for durability under normal operating conditions. The assembly includes all necessary components for a complete replacement, reducing installation errors. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
