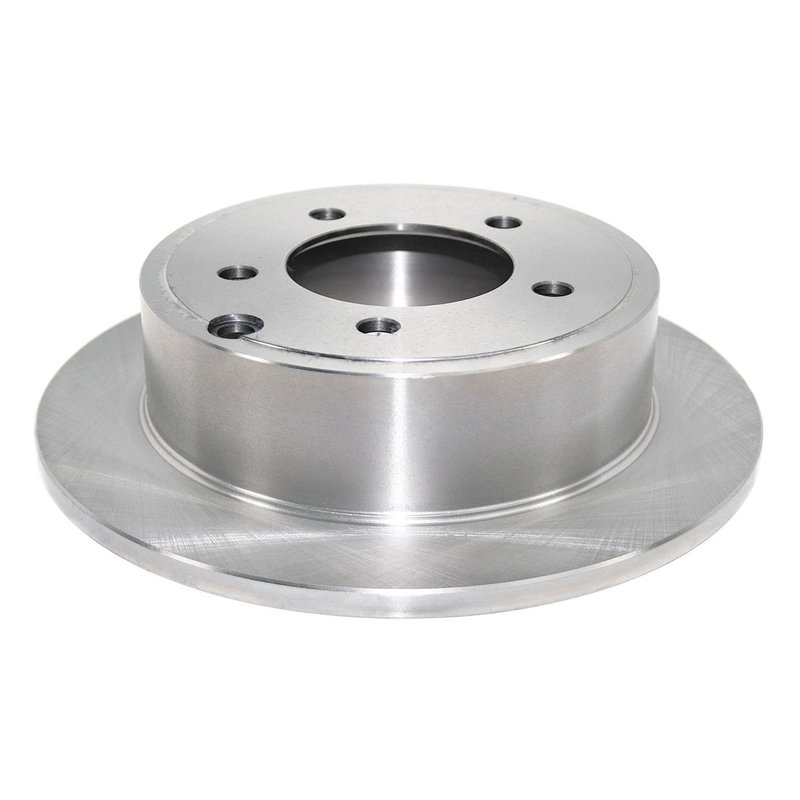

DuraGo BR900334 Disc Brake Rotor - Rear

Overview of DuraGo BR900334 Disc Brake Rotor

The DuraGo BR900334 is a solid disc brake rotor designed for reliable braking performance on select Chrysler, Dodge, Jeep, and Mitsubishi vehicles. Engineered with full cast iron construction, this rotor provides consistent stopping power for models like the Dodge Avenger, Jeep Compass, and Mitsubishi Lancer.

• Material: Durable cast iron for strength and heat dissipation
• Rotor Type: Solid, non-directional brake surface
• Construction: Full cast design with drum-in-hat style
• Dimensions: 10.31 inch (262 mm) outside diameter, 0.39 inch (10 mm) nominal thickness
• Mounting: 5 bolt holes with 114.3 mm bolt circle diameter
• Compatible with ABS systems (ABS tone ring not included)

Detailed Product Description

The DuraGo BR900334 disc brake rotor is crafted from cast iron, a material known for its durability and effective heat management during braking. This rotor features a solid, non-directional braking surface, which means it can be installed on either side of the vehicle without concern for directional orientation. The drum-in-hat construction integrates a drum brake surface within the rotor hat, making it suitable for vehicles equipped with rear drum brakes combined with disc rotors.

With an outside diameter of 10.31 inches (262 mm) and a nominal thickness of 0.39 inches (10 mm), this rotor meets OEM specifications for fit and function. The mounting bolt pattern includes five holes spaced on a 114.3 mm bolt circle diameter, ensuring compatibility with specific Chrysler, Dodge, Jeep, and Mitsubishi models. Note that this rotor does not include a rust-resistant coating, so proper maintenance is recommended to prevent corrosion over time.

Compatible Vehicles and Applications

This rotor is compatible with a range of vehicles, including but not limited to:

• Chrysler Sebring (2000s models)
• Dodge Avenger and Caliber
• Jeep Compass and Patriot
• Mitsubishi Lancer

Use the DuraGo BR900334 rotor when replacing worn or damaged rotors on these models to restore braking performance and safety.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to rotor wear
• Noise and vibration from uneven rotor surfaces
• Excessive rotor thickness loss beyond discard limits
• Compatibility issues with drum-in-hat rear brake assemblies

Installation Notes and Tips

• Ensure rotor thickness is within nominal and discard limits before installation (nominal thickness 0.39 inch, discard thickness 0.33 inch)
• Clean rotor surface to remove any protective coatings or debris before mounting
• Check mounting bolt hole alignment and torque bolts to manufacturer specifications
• Inspect brake pads and hardware for wear during rotor replacement
• Verify compatibility with vehicle ABS system; this rotor does not include an ABS tone ring

Quality Assurance and Warranty

DuraGo manufactures the BR900334 rotor to meet or exceed OEM standards for fit, form, and function. The cast iron construction ensures durability under normal operating conditions. While this rotor does not feature a rust-resistant coating, proper maintenance can extend its service life. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
