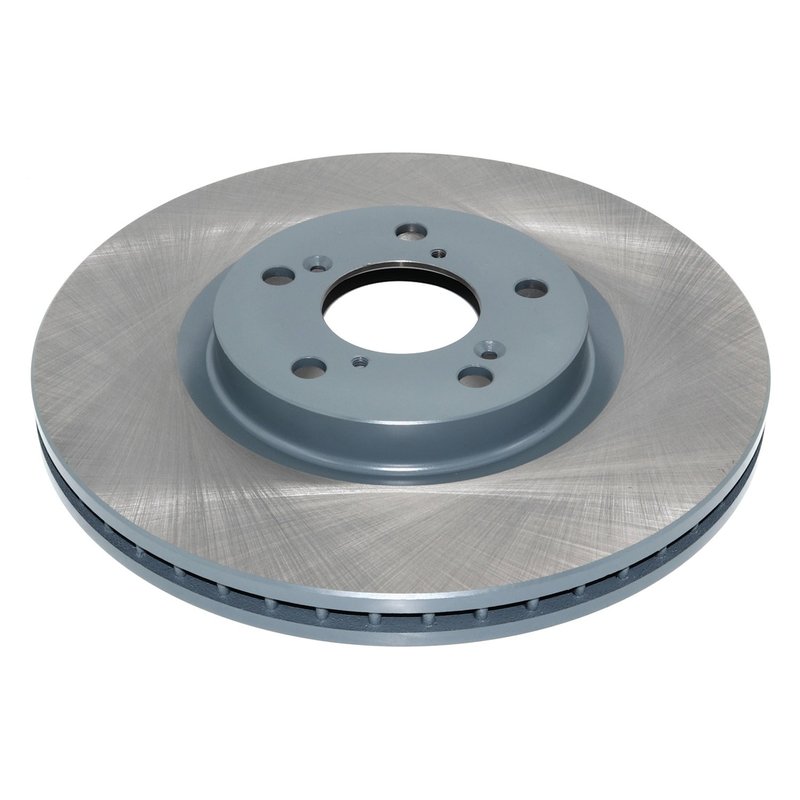

DuraGo BR900530-01 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Acura and Honda

The DuraGo BR900530-01 disc brake rotor is engineered to provide reliable braking performance for select Acura and Honda models. Designed with a full cast construction and rust-resistant coating, this rotor offers durability and consistent stopping power for vehicles like the Acura MDX, Honda Pilot, RLX, and ZDX.

• Material: Cast iron for strength and heat dissipation
• Full cast construction enhances rotor durability
• Rust-resistant coating protects against corrosion
• Vented design improves heat dissipation during braking
• Non-directional brake surface for versatile installation
• Compatible with 5 mounting bolt holes and conventional rotor setup
• Outside diameter of 12.99 inches (330 mm) fits specified Acura and Honda models

Technical Specifications and Design Features

The DuraGo BR900530-01 rotor features a nominal thickness of 1.1 inches (28 mm) and a discard thickness of 1.02 inches (26 mm), ensuring it meets precise wear limits for safe operation. Its overall height measures 1.86 inches (47.3 mm), with a center hole diameter of 2.76 inches (70.1 mm) and a mounting bolt hole circle diameter of 4.72 inches (120 mm). The rotor is vented to allow better airflow and heat dissipation, reducing the risk of brake fade during extended use. This conventional, non-directional rotor does not include an ABS tone ring and is designed without cross-drilling or slotting, providing a smooth braking surface.

Compatible Vehicles and Applications

This disc brake rotor is compatible with the following vehicles:

• Acura MDX
• Acura RLX
• Acura ZDX
• Honda Pilot

It is designed to replace original equipment rotors on these models, maintaining proper fitment and braking performance.

Common Issues Addressed by This Rotor

• Brake rotor wear and thinning beyond discard thickness
• Corrosion and rust buildup on rotor surfaces
• Overheating and brake fade during heavy braking
• Uneven braking or vibration caused by warped rotors
• Replacement of worn or damaged original rotors on Acura MDX, Honda Pilot, RLX, and ZDX

Installation Notes and Tips

When installing the DuraGo BR900530-01 rotor, ensure the mounting surface is clean and free of debris. Verify the rotor thickness is within nominal specifications before installation. Since this rotor is non-directional, it can be installed on either side of the vehicle. Use proper torque specifications for the 5 mounting bolts to avoid rotor warping. This rotor does not include an ABS tone ring, so confirm compatibility with your vehicle’s ABS system.

Quality Assurance and Warranty

DuraGo manufactures this disc brake rotor to meet or exceed OEM standards for fit, form, and function. The cast iron construction and rust-resistant coating contribute to long service life and reliable braking performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship.
