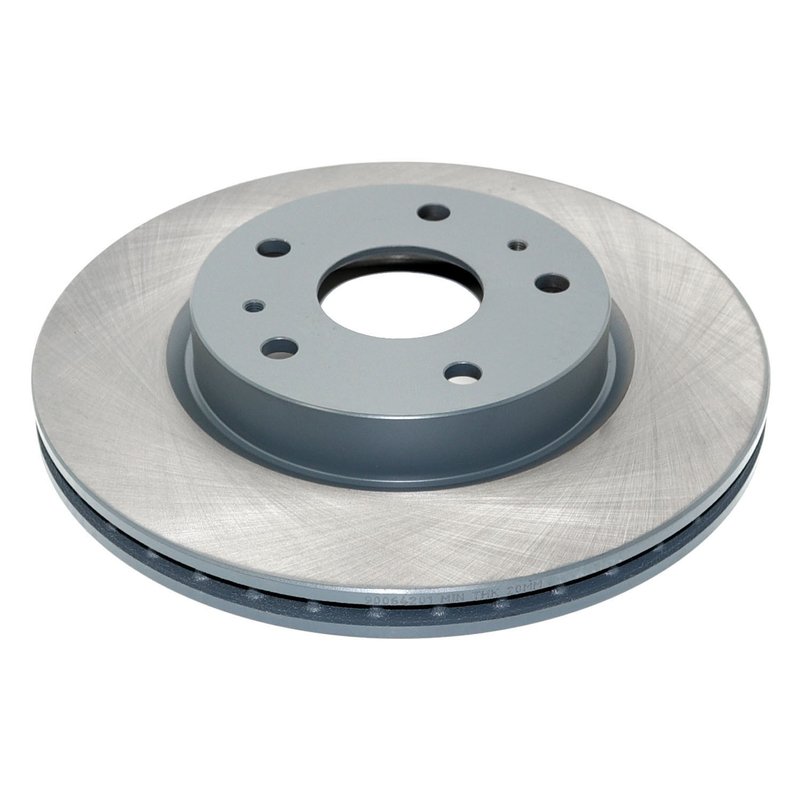

DuraGo BR900642-01 Disc Brake Rotor - Front
| Brand | DuraGo BR900642-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.79 |
| Discard Thickness | 20 |
| Nominal Thickness | 0.87 |
| Nominal Thickness | 22 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.85 |
| Overall Height | 47 |
| Outside Diameter | 11.02 |
| Outside Diameter | 280 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.44 |
| Center Hole Diameter | 62 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.5 |
| Mounting Bolt Hole Diameter | 12.8 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Suzuki · 9 vehicles |
Corrosion-resistant coating. Protects the hat and edge for lasting defense against rust.
Vented rotor design. Promotes airflow for consistent braking performance.
ISO-certified manufacturing. Built to meet fit, form, and function requirements.
Cross-references 5531180J01 and 5531180J03 for the same application. See all 2.
DuraGo Titanium Series Front Rotor
The DuraGo Titanium Series brake rotor is a front disc brake rotor built for the Suzuki SX4 and Suzuki SX4 Crossover applications listed below. Part number BR900642-01 combines a vented cast iron construction with a corrosion-resistant coating on the hat and edge to help maintain appearance and service life.
With a titanium gray finish and non-directional brake surface, this rotor supports consistent pad contact while also complementing open-wheel vehicle designs. DuraGo manufactures the DTS line in an ISO-certified factory to meet fit, form, and function requirements.
Key Features
- Part number BR900642-01 front disc brake rotor
- Fits 2007-2014 Suzuki SX4, front
- Fits 2012 Suzuki SX4 Crossover, front
- Vented, full cast iron construction
- Rust-resistant coating on the hat and edge
- Non-directional brake surface
- 5-bolt mounting pattern with 114.3 mm bolt circle
- Outside diameter: 280 mm (11.02 in)
- Center hole diameter: 62 mm (2.44 in)
Detailed Description
DuraGo BR900642-01 is a Titanium Series front brake rotor engineered for Suzuki SX4 and SX4 Crossover models with the listed fitment. The rotor uses cast iron construction, a vented design, and a 22 mm nominal thickness with a 20 mm discard thickness for service planning. Its corrosion-resistant coating helps protect the hat and edge, while the titanium gray finish provides a clean look behind open wheels. This rotor is a direct-fit replacement for front brake service on 2007-2014 Suzuki SX4 and 2012 Suzuki SX4 Crossover applications.
This part cross-references 5531180J01 and 5531180J03 for the same application.
What This Rotor Helps Address
- Front brake pulsation caused by worn or uneven rotor surfaces
- Brake noise related to rotor wear or surface irregularity
- Corrosion on exposed rotor hat and edge areas
- Reduced braking consistency from a rotor at or near discard thickness
- Service replacement needs for Suzuki SX4 front brake maintenance
Installation Notes and Tips
Verify rotor diameter, center bore, bolt pattern, and thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads, calipers, and hardware condition during brake service. Confirm front-position fitment for the specific Suzuki SX4 or Suzuki SX4 Crossover model before installation.
Quality Assurance
DuraGo states that the Titanium Series is manufactured in an ISO-certified factory and built to meet fit, form, and function requirements. The rotor is backed by DuraGo engineering experience developed over more than 20 years in the automotive aftermarket.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Suzuki | SX4 Crossover | Front | Coated Hat and Edge for Rust Resistance |
| 2011 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2010 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2009 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2008 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
| 2007 | Suzuki | SX4 | Front | Coated Hat and Edge for Rust Resistance |
