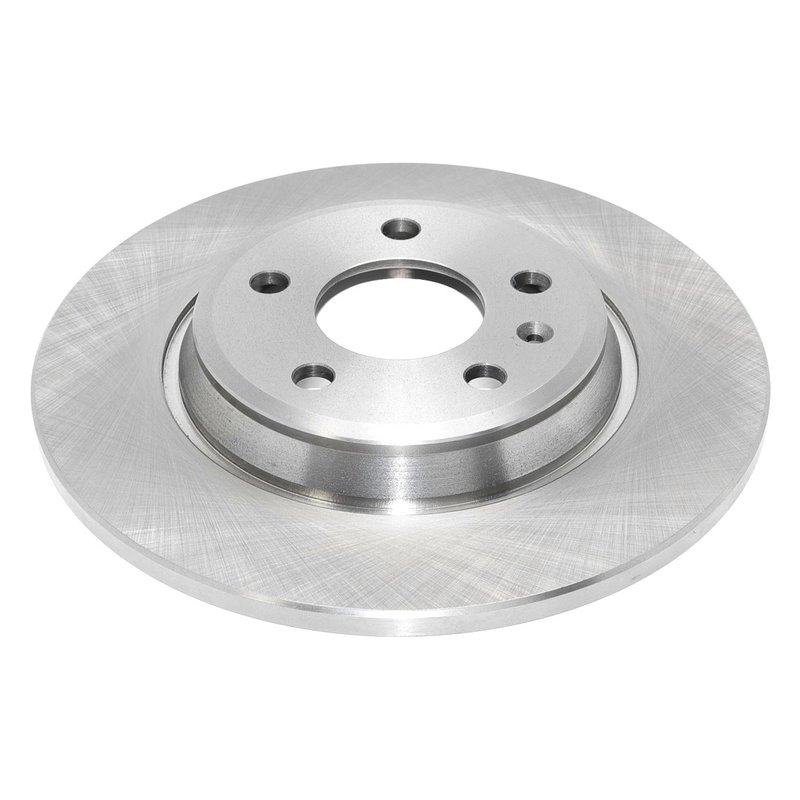

DuraGo BR900808 Disc Brake Rotor - Rear
| Brand | DuraGo BR900808 |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.39 |
| Discard Thickness | 10 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.41 |
| Mounting Bolt Hole Circle Diameter | 112 |
| Mounting Bolt Hole Diameter | 0.6 |
| Mounting Bolt Hole Diameter | 15.3 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.47 |
| Nominal Thickness | 12 |
| Outside Diameter | 11.81 |
| Outside Diameter | 300 |
| Overall Height | 1.42 |
| Overall Height | 36 |
| Rust Resistant Coating | No |
| Slotted | No |
| Solid Or Vented Type Rotor | Solid |
| Fits | Audi · 77 vehicles |
OE-style fit. Manufactured to meet fit, form, and function requirements.
Solid rotor design. Provides a straightforward brake surface for dependable stopping.
Cast iron construction. Full cast build delivers the durability expected in a rotor.
Cross-references Parts Authority PRT5993, Raybestos Brakes 980694 and Raybestos Brakes 980881 for the same application. See all 11.
DuraGo BR900808 Rear Brake Rotor
The DuraGo BR900808 is a solid rear disc brake rotor built from cast iron for Audi applications that call for a conventional, non-directional braking surface. With a 300 mm outside diameter, 12 mm nominal thickness, and 10 mm discard thickness, it is sized for rear brake service on select Audi A4, A4 Quattro, A5, A5 Quattro, A5 Sportback, A4 allroad, allroad, A6, A6 Quattro, and Q5 models.
For drivers searching for a rear brake rotor for Audi A4 Quattro or a replacement rotor for Audi Q5 rear brake service, BR900808 provides the fitment and dimensions needed for direct application matching. This part number, BR900808, is also referenced across multiple aftermarket catalogs for the same rear rotor application.
Key Features
- Cast iron full-cast construction for rear disc brake service
- Solid rotor design for applications requiring a non-vented rear rotor
- 300 mm outside diameter with 112 mm bolt circle diameter
- 5 mounting bolt holes and 68 mm center hole diameter
- Non-directional brake surface for straightforward pad contact
- No cross-drilling and no slots
- Conventional, drum-in-hat style rotor design
Detailed Product Overview
DuraGo manufactures this rotor through ISO-certified factories with attention to fit, form, and function. The BR900808 uses cast iron construction and a full-cast design to meet the dimensional requirements of rear brake systems on covered Audi platforms. Its 11.81-inch outside diameter, 1.42-inch overall height, and solid rotor profile make it a direct-match option for vehicles that specify a conventional rear rotor rather than a vented design.
Fitment coverage includes 2021-2025 Audi A4 Quattro rear, 2018-2025 Audi A5 Sportback rear, 2017-2020 Audi A4 rear, 2008-2017 Audi A5 Quattro rear, 2009-2017 Audi Q5 rear, 2010-2016 Audi A4 rear, 2013-2016 Audi A4 allroad rear, 2010-2016 Audi A4 Quattro rear, 2010-2016 Audi A5 rear, 2013-2016 Audi allroad rear, 2012-2013 Audi A6 rear, 2013 Audi A6 Quattro rear, 2009 Audi A4 rear with 300 mm rotor diameter, and 2009 Audi A4 Quattro rear with 300 mm rotor diameter.
This part cross-references Raybestos Brakes (e.g., 980694, 980881) for the same application.
Common Issues This Rotor Can Address
- Rear brake pulsation caused by rotor wear or thickness variation
- Brake noise related to worn or uneven rear rotor surfaces
- Reduced braking consistency from a rotor below discard thickness
- Corrosion-related rotor deterioration on the braking surface
- Fitment replacement needs for Audi rear brake service
Installation Notes and Tips
Confirm rotor diameter, center hole diameter, bolt pattern, and solid rear rotor specification before installation. Measure the existing rotor and compare it to the listed 300 mm outside diameter, 68 mm center hole, 112 mm bolt circle, and 5-bolt configuration to verify application match. Inspect pads, caliper hardware, and hub condition during service so the new rotor seats evenly and the braking surface wears correctly.
Quality Assurance
DuraGo backs this rotor with manufacturing standards focused on fit, form, and function. The brand’s brake drum and rotor program is produced in ISO-certified factories and supported by long-standing aftermarket cataloging experience for Audi brake applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Audi | A4 Quattro | — | — | — | Rear | Solid Rear Rotors |
| 2025 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2024 | Audi | A4 Quattro | — | — | — | Rear | Solid Rear Rotors |
| 2024 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2023 | Audi | A4 Quattro | — | — | — | Rear | Solid Rear Rotors |
| 2023 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2022 | Audi | A4 Quattro | — | — | — | Rear | Solid Rear Rotors |
| 2022 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2021 | Audi | A4 Quattro | — | — | — | Rear | Solid Rear Rotors |
| 2021 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2020 | Audi | A4 | — | — | — | Rear | Solid Rear Rotors |
| 2020 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2019 | Audi | A4 | — | — | — | Rear | Solid Rear Rotors |
| 2019 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2018 | Audi | A4 | — | — | — | Rear | Solid Rear Rotors |
| 2018 | Audi | A5 Sportback | — | — | — | Rear | Solid Rear Rotors |
| 2017 | Audi | A4 | — | — | — | Rear | Solid Rear Rotors |
| 2017 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2017 | Audi | Q5 | — | 2.0L | L4 | Rear | — |
| 2016 | Audi | A4 | — | — | — | Rear | — |
| 2016 | Audi | A4 allroad | — | — | — | Rear | — |
| 2016 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2016 | Audi | A5 | — | — | — | Rear | — |
| 2016 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2016 | Audi | allroad | — | — | — | Rear | — |
| 2016 | Audi | Q5 | Premium | 2.0L | L4 | Rear | — |
| 2016 | Audi | Q5 | Premium Plus | 2.0L | L4 | Rear | — |
| 2015 | Audi | A4 | — | — | — | Rear | — |
| 2015 | Audi | A4 allroad | — | — | — | Rear | — |
| 2015 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2015 | Audi | A5 | — | — | — | Rear | — |
| 2015 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2015 | Audi | allroad | — | — | — | Rear | — |
| 2015 | Audi | Q5 | Premium | 2.0L | L4 | Rear | — |
| 2015 | Audi | Q5 | Premium Plus | 2.0L | L4 | Rear | — |
| 2014 | Audi | A4 | — | — | — | Rear | — |
| 2014 | Audi | A4 allroad | — | — | — | Rear | — |
| 2014 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2014 | Audi | A5 | — | — | — | Rear | — |
| 2014 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2014 | Audi | allroad | — | — | — | Rear | — |
| 2014 | Audi | Q5 | Premium | 2.0L | L4 | Rear | — |
| 2014 | Audi | Q5 | 2.0T | 2.0L | L4 | Rear | — |
| 2014 | Audi | Q5 | Premium Plus | 2.0L | L4 | Rear | — |
| 2013 | Audi | A4 | — | — | — | Rear | — |
| 2013 | Audi | A4 allroad | — | — | — | Rear | — |
| 2013 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2013 | Audi | A5 | — | — | — | Rear | — |
| 2013 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2013 | Audi | A6 | — | — | — | Rear | — |
| 2013 | Audi | A6 Quattro | Premium | 2.0L | L4 | Rear | — |
| 2013 | Audi | A6 Quattro | Premium Plus | 2.0L | L4 | Rear | — |
| 2013 | Audi | allroad | — | — | — | Rear | — |
| 2013 | Audi | Q5 | Premium | 2.0L | L4 | Rear | — |
| 2013 | Audi | Q5 | Premium Plus | 2.0L | L4 | Rear | — |
| 2012 | Audi | A4 | — | — | — | Rear | — |
| 2012 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2012 | Audi | A5 | — | — | — | Rear | — |
| 2012 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2012 | Audi | A6 | — | — | — | Rear | — |
| 2012 | Audi | Q5 | — | — | — | Rear | — |
| 2011 | Audi | A4 | — | — | — | Rear | — |
| 2011 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2011 | Audi | A5 | — | — | — | Rear | — |
| 2011 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2011 | Audi | Q5 | — | — | — | Rear | — |
| 2010 | Audi | A4 | — | — | — | Rear | — |
| 2010 | Audi | A4 Quattro | — | — | — | Rear | — |
| 2010 | Audi | A5 | — | — | — | Rear | — |
| 2010 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2010 | Audi | Q5 | — | — | — | Rear | — |
| 2009 | Audi | A4 | Base | — | — | Rear | 300 mm Rotor Diameter |
| 2009 | Audi | A4 Quattro | Base | — | — | Rear | 300 mm Rotor Diameter |
| 2009 | Audi | A4 Quattro | Avant | — | — | Rear | 300 mm Rotor Diameter |
| 2009 | Audi | A5 Quattro | — | — | — | Rear | — |
| 2009 | Audi | Q5 | — | — | — | Rear | — |
| 2008 | Audi | A5 Quattro | — | — | — | Rear | — |
