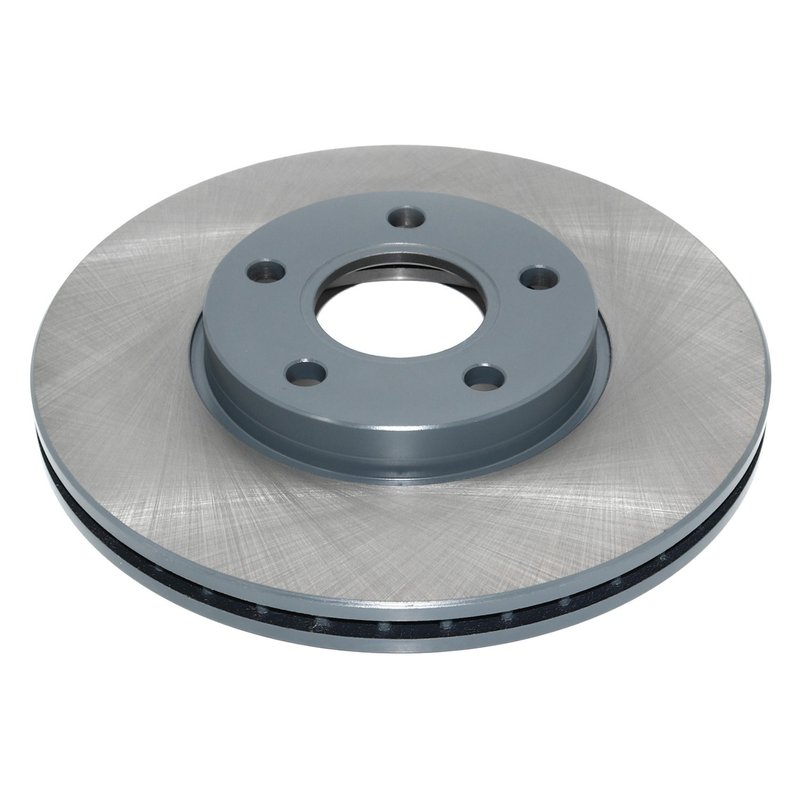

DuraGo BR900850-01 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Ford Transit Connect

The DuraGo BR900850-01 disc brake rotor is engineered to provide reliable braking performance for your Ford Transit Connect. Designed with a full cast construction and rust-resistant coating, this rotor ensures durability and consistent stopping power under various driving conditions.

• Material: High-quality cast iron for strength and heat dissipation
• Nominal Thickness: 0.94 inches (24 mm) for optimal rotor life
• Discard Thickness: 0.87 inches (22 mm) indicating service limit
• Vented rotor design to improve heat dissipation and reduce brake fade
• Rust-resistant coating to protect against corrosion and extend rotor lifespan
• Overall Height: 1.75 inches (44.4 mm) for precise fitment
• Outside Diameter: 10.94 inches (278 mm) matching OEM specifications
• Mounting Bolt Hole Quantity: 5 with 0.54 inches (13.8 mm) diameter holes
• Non-directional brake surface for flexible installation
• Conventional rotor type compatible with standard brake systems

Product Details and Specifications

The DuraGo BR900850-01 disc brake rotor is constructed from cast iron, a material known for its excellent thermal conductivity and durability. This rotor features a vented design that helps dissipate heat more effectively during braking, reducing the risk of brake fade and maintaining consistent performance. The rust-resistant coating protects the rotor surface from corrosion, which is especially beneficial in wet or humid environments.

With an outside diameter of 10.94 inches and an overall height of 1.75 inches, this rotor is designed to meet the exact specifications required for the Ford Transit Connect. The 5 mounting bolt holes with a 4.25-inch bolt circle diameter ensure secure and precise installation. The nominal thickness of 0.94 inches provides a solid braking surface, while the discard thickness of 0.87 inches indicates when the rotor should be replaced to maintain safety and performance.

Compatible Vehicles and Applications

• Compatible with Ford Transit Connect models requiring a 10.94-inch vented disc brake rotor
• Ideal replacement for worn or damaged rotors to restore braking efficiency
• Suitable for addressing issues such as brake noise, vibration, and reduced stopping power
• Helps resolve rotor warping and uneven wear problems
• Recommended for routine brake system maintenance and rotor upgrades

Installation Notes and Tips

Ensure the brake system is inspected thoroughly before installation. Measure the rotor thickness and compare it to the discard thickness of 0.87 inches to confirm replacement necessity. Clean the hub surface to remove rust or debris for proper rotor seating. Use the correct torque specifications for the 5 mounting bolts to avoid rotor distortion. Since this rotor is non-directional, it can be installed on either side of the vehicle without concern for rotation direction.

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The BR900850-01 rotor undergoes rigorous quality control to ensure consistent performance and durability. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
