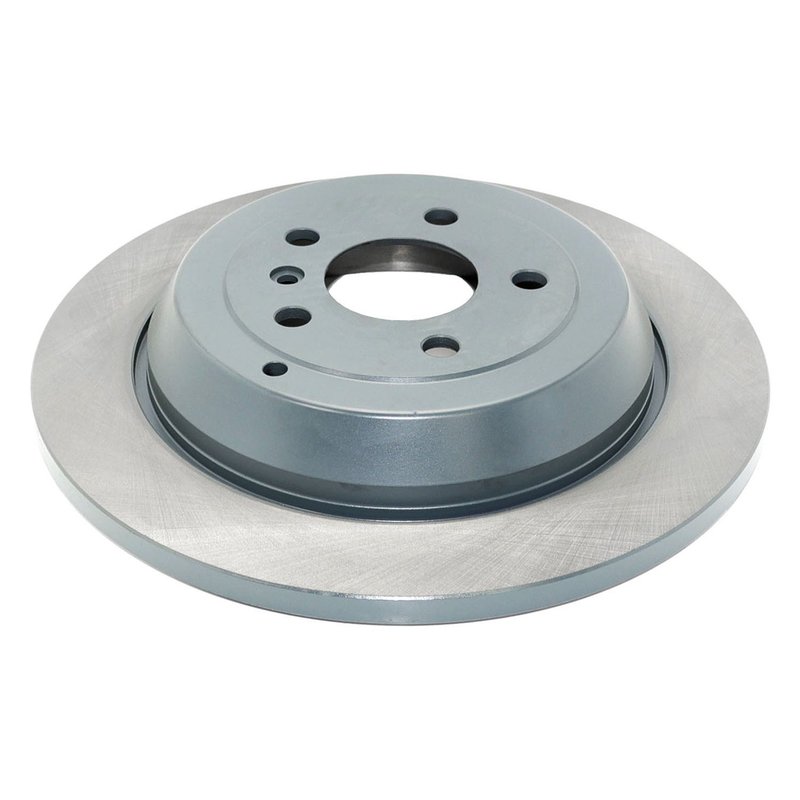

DuraGo BR900876-01 Disc Brake Rotor - Rear

Overview of DuraGo BR900876-01 Disc Brake Rotor

The DuraGo BR900876-01 is a cast iron disc brake rotor designed specifically for select Mercedes-Benz models including the ML320, ML350, ML450, ML500, R320, R350, and R500. Engineered to meet the demands of these vehicles, this rotor offers reliable braking performance with a solid, drum-in-hat construction and rust-resistant coating.

• Material: Durable cast iron for consistent heat dissipation
• Construction: Full cast, solid disc brake rotor with drum-in-hat design
• Rust Resistant Coating: Yes, to help prevent corrosion and extend rotor life
• Dimensions: 12.99 inch (330 mm) outside diameter, 2.47 inch (62.8 mm) overall height
• Mounting: 5 bolt holes with 4.41 inch (112 mm) bolt circle diameter
• Nominal Thickness: 0.55 inch (14 mm) with discard thickness at 0.45 inch (11.4 mm)
• Non-directional brake surface for versatile installation

Detailed Product Description

The DuraGo BR900876-01 disc brake rotor is constructed from high-quality cast iron, providing excellent thermal conductivity and durability under demanding braking conditions. Its full cast, solid design incorporates a drum-in-hat type rotor, which integrates the parking brake drum into the rotor assembly, making it compatible with the rear braking system of Mercedes-Benz ML and R-Class models. The rotor features a rust-resistant coating to reduce corrosion, helping maintain performance and appearance over time.

With an outside diameter of 12.99 inches (330 mm) and an overall height of 2.47 inches (62.8 mm), this rotor fits vehicles requiring a 5-bolt mounting pattern with a 4.41 inch (112 mm) bolt circle diameter. The nominal thickness of 0.55 inches (14 mm) ensures structural integrity, while the discard thickness of 0.45 inches (11.4 mm) indicates when replacement is necessary to maintain safe braking performance. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Applications

• Mercedes-Benz ML320, ML350, ML450, ML500 (rear disc brake rotor)
• Mercedes-Benz R320, R350, R500 (rear disc brake rotor)
• Designed for vehicles equipped with drum-in-hat rear brake systems
• Ideal for addressing rotor wear, vibration, and braking noise issues

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surface to prevent rotor runout and vibration
• Check compatibility with vehicle’s parking brake system due to drum-in-hat design
• Torque mounting bolts to manufacturer specifications for safety

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet or exceed OEM specifications for fit, form, and function. The rust-resistant coating helps extend rotor life by reducing corrosion. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always verify warranty terms with the point of purchase.
