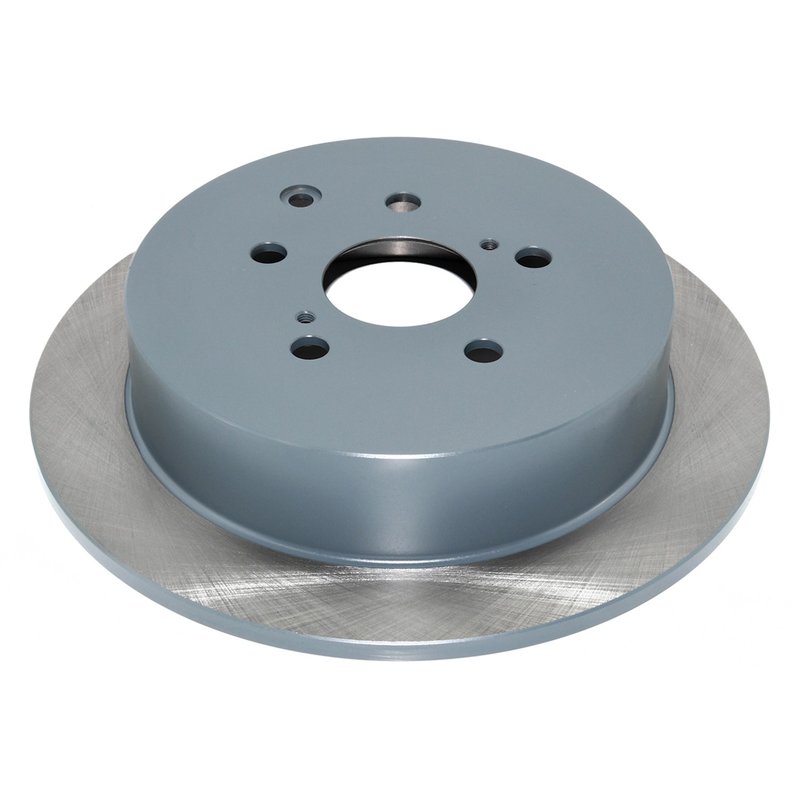

DuraGo BR901006-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Lexus and Toyota

The DuraGo BR901006-01 disc brake rotor is engineered for reliable braking performance on select Lexus and Toyota models. Designed with a full cast construction and rust-resistant coating, this rotor offers consistent stopping power and long-lasting durability.

• Material: High-quality cast iron for strength and heat dissipation
• Full cast construction enhances structural integrity
• Rust-resistant coating protects against corrosion
• Solid, non-directional brake surface for even wear
• Drum-in-hat design with 5 mounting bolt holes
• Compatible with Lexus Highlander, RX350, RX450h, and Toyota Sienna
• Nominal thickness: 0.39 inches (10 mm); discard thickness: 0.33 inches (8.5 mm)
• Outside diameter: 12.17 inches (309.2 mm); overall height: 2.47 inches (62.7 mm)

Technical Details and Construction

The BR901006-01 rotor features a solid disc design constructed from cast iron, which provides excellent heat absorption and dissipation during braking. Its full cast construction ensures durability under demanding driving conditions. The rotor includes a rust-resistant coating to minimize corrosion and extend service life. This rotor is a drum-in-hat type, integrating the drum brake surface within the rotor hat, suitable for vehicles equipped with rear drum brakes. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Applications

This DuraGo disc brake rotor is specifically designed for use on the following vehicles:

• Lexus Highlander
• Lexus RX350
• Lexus RX450h
• Toyota Sienna

It is ideal for drivers seeking a direct replacement rotor that meets OEM specifications for these models.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking efficiency due to worn or thin rotors
• Corrosion and rust buildup affecting rotor performance
• Uneven brake pad wear from damaged rotor surfaces
• Noise and vibration during braking from rotor defects

Installation Notes and Tips

When installing the DuraGo BR901006-01 rotor, ensure the mounting surface is clean and free of debris. Verify rotor thickness before installation to confirm it meets minimum specifications. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. Use proper torque specifications for the 5 mounting bolts to avoid warping. This rotor does not include an ABS tone ring, so confirm compatibility with your vehicle's ABS system.

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet or exceed OEM standards for fit, form, and function. The cast iron material and rust-resistant coating contribute to reliable performance and longevity. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
