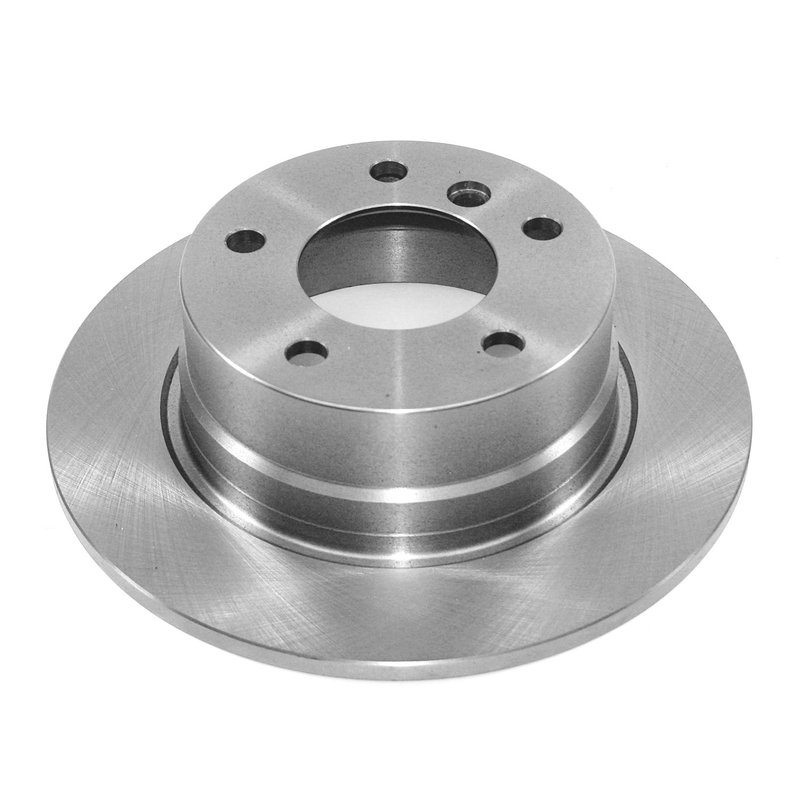

DuraGo BR901038 Disc Brake Rotor - Rear

DuraGo BR901038 Rear Brake Rotor

The DuraGo BR901038 is a rear disc brake rotor built for 2003-2006 BMW Z4 applications. It uses a full cast, solid drum-in-hat design with a non-directional brake surface for consistent braking service on the rear axle.

• Fits 2003-2005 BMW Z4, rear
• Fits 2006 BMW Z4, rear, to 1/06
• Cast iron construction with full cast design
• Solid rotor style with drum-in-hat configuration
• Non-directional brake surface for service flexibility
• Outside diameter: 11.02 in. / 280 mm
• Nominal thickness: 0.39 in. / 10 mm
• Discard thickness: 0.33 in. / 8.4 mm
• 5-bolt mounting pattern with 120 mm bolt circle

Fitment and Application Details

Use BR901038 when servicing the rear brake system on BMW Z4 models listed above. This rotor measures 2.95 in. / 75 mm at the center hole diameter and 2.95 in. / 75 mm overall height, with a 0.57 in. / 14.6 mm mounting bolt hole diameter. It is a solid, non-slotted, non-cross-drilled rotor with no ABS tone ring included.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Rotor Helps Address

• Rear brake pulsation caused by worn or uneven rotor surfaces
• Brake noise related to rotor wear or surface irregularity
• Reduced braking performance from rotors at or near discard thickness
• Service issues on BMW Z4 rear brake maintenance jobs
• Replacement needs for drum-in-hat rear rotor applications

Installation Notes and Tips

Confirm rotor dimensions, bolt pattern, and rear fitment before installation. The 2006 BMW Z4 listing applies to vehicles built to 1/06, so verify build date before ordering. Inspect pads, caliper condition, and hub mating surfaces during brake service to help ensure proper rotor seating and even braking contact.

Quality Assurance

DuraGo manufactures brake components through ISO-certified factories and builds this rotor to meet fit, form, and function requirements for the listed BMW Z4 rear applications. DuraGo BR901038 is part of the brand’s brake drum and rotor program developed for professional repair use.
