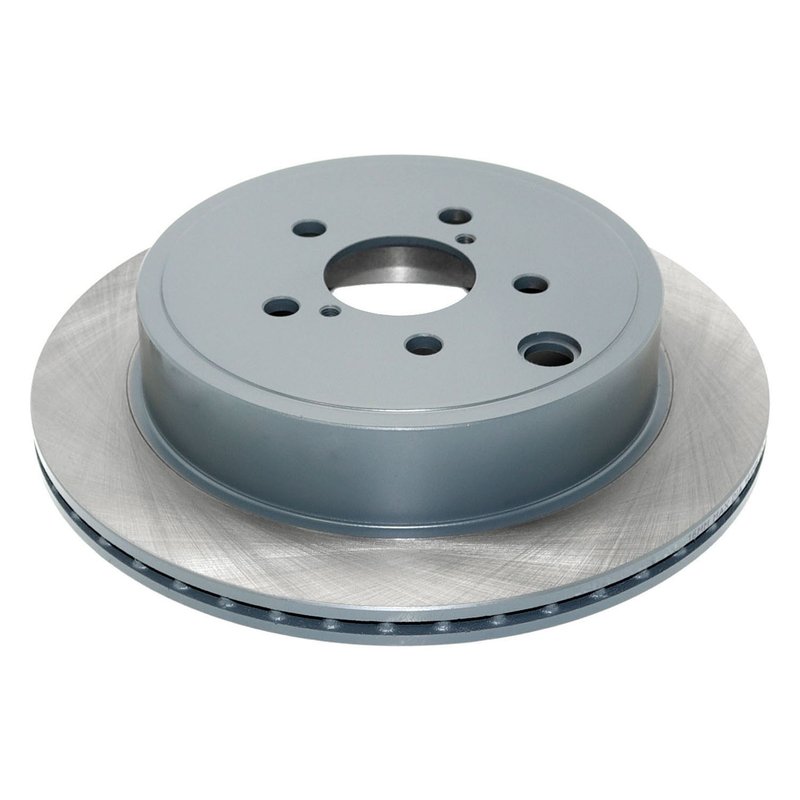

DuraGo BR901072-01 Disc Brake Rotor - Rear

Durable Cast Iron Disc Brake Rotor for Toyota, Subaru, and Scion

The DuraGo BR901072-01 disc brake rotor is engineered to provide reliable braking performance for select Toyota, Subaru, and Scion models. Designed with a vented, drum-in-hat construction, this rotor offers effective heat dissipation and durability for vehicles like the Toyota 86, Subaru BRZ, and Scion FR-S.

• Constructed from full cast iron for strength and longevity
• Vented rotor design to improve heat dissipation and reduce brake fade
• Rust-resistant coating to protect against corrosion
• Drum-in-hat type rotor with 5 mounting bolt holes
• Non-directional brake surface for versatile installation
• Compatible with Toyota 86, Subaru BRZ, Scion FR-S, Subaru Legacy, Outback, and Toyota GR86

Product Features and Specifications

The DuraGo BR901072-01 rotor features a nominal thickness of 0.71 inches (18 mm) and a discard thickness of 0.63 inches (16 mm), ensuring a clear service limit for safe operation. Its overall height measures 2.5 inches (63.6 mm), with an outside diameter of 11.42 inches (290 mm). The rotor includes a 2.28 inch (58 mm) center hole diameter and a mounting bolt hole circle diameter of 100 mm (3.94 inches) with 5 bolt holes sized at 13 mm. This rotor does not include an ABS tone ring and is designed with a non-directional braking surface, allowing for flexible installation on compatible vehicles.

Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota 86, Subaru BRZ, and Scion FR-S
• Addresses brake fade caused by overheating with vented rotor design
• Prevents rust and corrosion buildup with rust-resistant coating
• Restores proper braking performance on Subaru Legacy and Outback models
• Compatible with drum-in-hat brake systems requiring a 5-bolt rotor

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.63 inches (16 mm) before installation. Clean the hub surface thoroughly to prevent rotor runout. Since this rotor is non-directional, it can be installed on either side of the vehicle. Verify compatibility with your vehicle’s brake system, especially for drum-in-hat configurations. Torque mounting bolts to manufacturer specifications for optimal performance.

Quality Assurance and Warranty

DuraGo disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and rust-resistant coating contribute to long service life and consistent braking performance. Please refer to DuraGo’s warranty policy for specific coverage details related to the BR901072-01 rotor.
