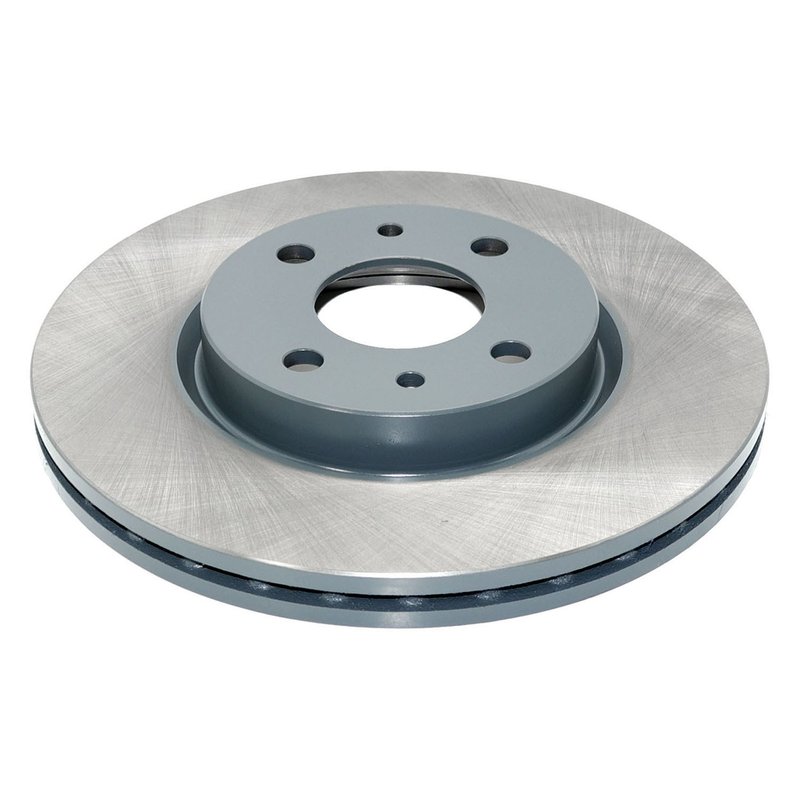

DuraGo BR901084-01 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Fiat 500

The DuraGo BR901084-01 disc brake rotor is engineered to provide reliable braking performance for your Fiat 500. Constructed from full cast iron with a rust-resistant coating, this vented rotor is designed to maintain optimal braking efficiency and durability under various driving conditions.

• Material: Full cast iron construction for strength and heat dissipation
• Rust-resistant coating to reduce corrosion and extend rotor life
• Vented design improves heat dissipation during braking
• Nominal thickness of 0.87 inches (22 mm) with discard thickness at 0.8 inches (20.2 mm)
• Outside diameter of 10.13 inches (257.3 mm) suitable for Fiat 500 models
• Four mounting bolt holes with a 3.86 inch (98 mm) bolt circle diameter
• Non-directional brake surface for versatile installation

Product Details and Specifications

The DuraGo BR901084-01 rotor features a full cast iron construction that balances durability and effective heat management. Its vented design allows air to flow between the rotor surfaces, reducing the risk of brake fade during extended use. The rotor measures 10.13 inches (257.3 mm) in outside diameter and has an overall height of 1.59 inches (40.5 mm), ensuring proper fitment and clearance for the Fiat 500. The nominal thickness is 0.87 inches (22 mm), with a discard thickness of 0.8 inches (20.2 mm), indicating when the rotor should be replaced to maintain safe braking performance. The rotor includes four mounting bolt holes with a 0.52 inch (13.2 mm) diameter and a 3.86 inch (98 mm) bolt circle diameter, matching the Fiat 500's specifications. This conventional, non-directional rotor does not include an ABS tone ring and is neither slotted nor cross-drilled.

Compatible Vehicles and Applications

• Compatible with Fiat 500 models requiring a 10.13 inch vented disc brake rotor
• Designed for use in standard braking systems without ABS tone ring integration
• Suitable for replacement of worn or damaged rotors on Fiat 500 vehicles
• Ideal for addressing issues such as brake noise, vibration, and reduced stopping power

Installation Notes and Tips

When installing the DuraGo BR901084-01 rotor on your Fiat 500, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify that the mounting bolt holes align correctly with the vehicle hub and torque bolts to manufacturer specifications. Since this rotor is non-directional, it can be installed on either side of the vehicle without concern for rotation direction. Check the rotor thickness before installation to confirm it meets the minimum discard thickness for safe operation.

Quality Assurance and Warranty

DuraGo manufactures the BR901084-01 rotor to meet industry standards for material quality and dimensional accuracy. The rust-resistant coating helps protect against corrosion, contributing to longer service life. While specific warranty details are not provided, DuraGo products typically adhere to quality control processes to ensure consistent performance and reliability for Fiat 500 brake system replacements.
