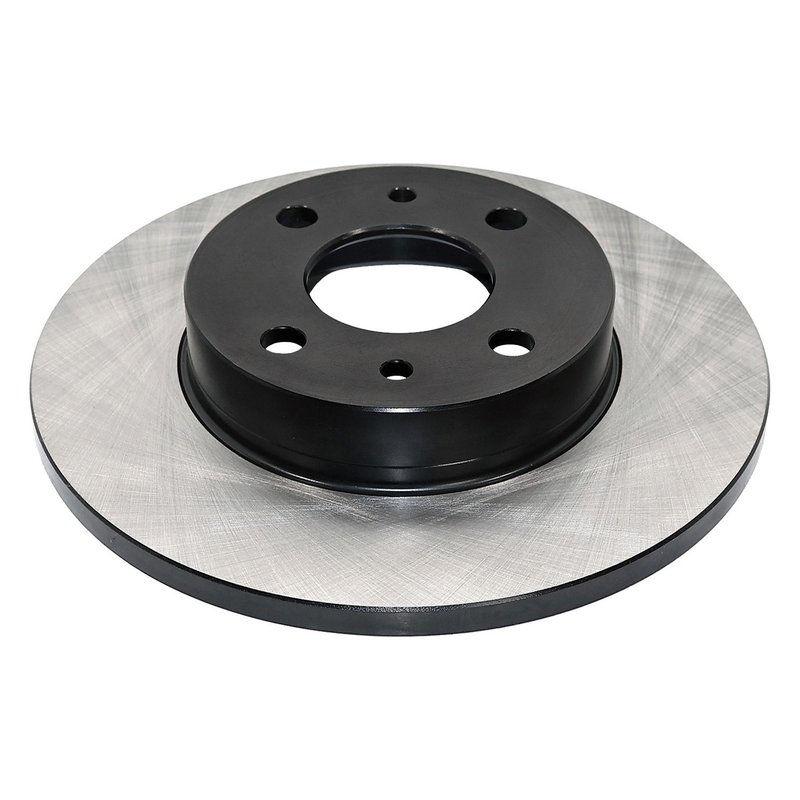

DuraGo BR901086-02 Disc Brake Rotor - Rear

Durable Disc Brake Rotor for Fiat 500

The DuraGo BR901086-02 disc brake rotor is engineered to provide reliable braking performance for your Fiat 500. Crafted from cast iron with a rust-resistant coating, this solid rotor ensures consistent stopping power and long-lasting durability.

• Constructed from full cast iron for strength and heat dissipation
• Solid rotor design with a 240.2 mm outside diameter
• Rust-resistant coating to reduce corrosion and extend rotor life
• Nominal thickness of 11 mm with discard thickness at 9.2 mm
• Four mounting bolt holes with a 98 mm bolt circle diameter
• Non-directional brake surface for versatile installation
• Compatible with Fiat 500 models requiring a conventional disc brake rotor

Technical Details and Construction

This DuraGo disc brake rotor (part number BR901086-02) features a full cast iron construction designed to withstand the demands of daily driving. The solid rotor type offers a nominal thickness of 11 mm and a discard thickness of 9.2 mm, ensuring safe replacement intervals. Its 240.2 mm outside diameter and 1.58 inch (40.2 mm) overall height fit precisely on the Fiat 500 brake assembly. The rotor includes four mounting bolt holes with a 13.2 mm diameter and a 98 mm bolt circle diameter, matching factory specifications. A rust-resistant coating helps protect the rotor surface from corrosion, maintaining braking efficiency over time. This rotor does not include an ABS tone ring and features a non-directional brake surface, allowing for flexible installation orientation.

Compatible Vehicles and Applications

• Designed specifically for Fiat 500 models requiring a conventional solid disc brake rotor
• Ideal replacement for worn or damaged front or rear rotors on compatible Fiat 500 vehicles
• Addresses issues such as brake noise, vibration, and reduced stopping power
• Helps restore proper brake pedal feel and vehicle safety

Installation Notes and Tips

When installing the DuraGo BR901086-02 rotor, ensure the mounting surface is clean and free of debris to prevent uneven rotor seating. Verify that the rotor thickness meets the minimum discard thickness of 9.2 mm before installation. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. Use proper torque specifications for the mounting bolts to avoid warping. It is recommended to inspect brake pads and hardware during rotor replacement for optimal braking performance.

Quality Assurance and Warranty

DuraGo manufactures this disc brake rotor to meet or exceed OEM standards for fit, form, and function. The cast iron construction and rust-resistant coating contribute to the rotor's durability and consistent braking performance. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
