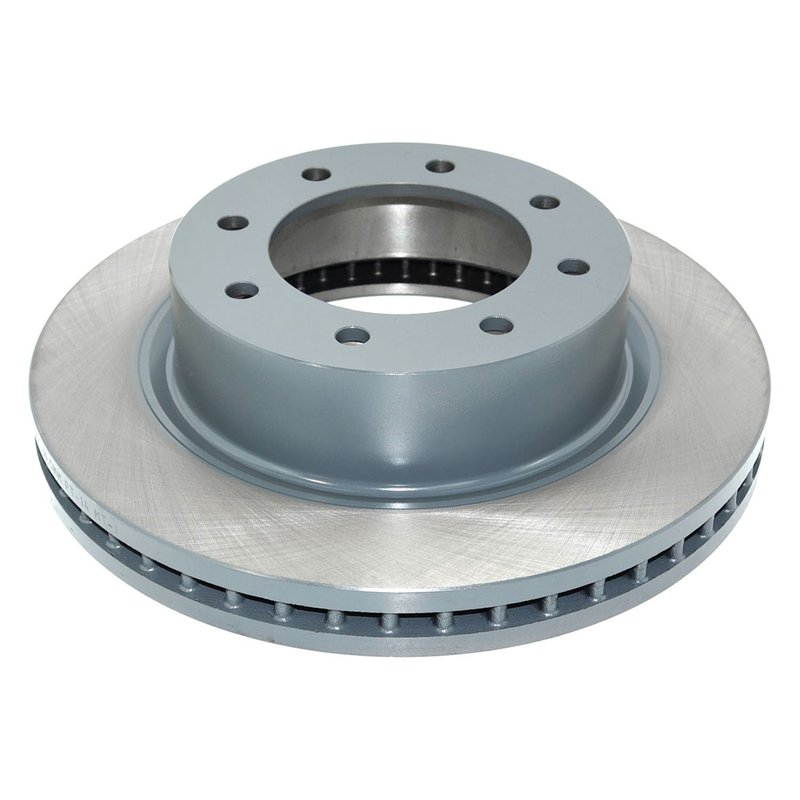

DuraGo BR901108-01 Disc Brake Rotor - Front
| Brand | DuraGo BR901108-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.44 |
| Discard Thickness | 36.5 |
| Nominal Thickness | 1.5 |
| Nominal Thickness | 38 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 3.78 |
| Overall Height | 96 |
| Outside Diameter | 14.17 |
| Outside Diameter | 360 |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 123 |
| Center Hole Diameter | 4.84 |
| Mounting Bolt Hole Circle Diameter | 165.1 |
| Mounting Bolt Hole Circle Diameter | 6.5 |
| Mounting Bolt Hole Diameter | 0.57 |
| Mounting Bolt Hole Diameter | 14.5 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Nissan · 30 vehicles |
Corrosion-resistant coating. Helps protect the hat and edge for lasting defense against rust.
Vented design. Promotes efficient airflow for consistent braking performance.
Full cast construction. Cast iron rotor built to meet fit, form, and function requirements.
Cross-references 402061PA1A and 402061PA1B for the same application. See all 2.
DuraGo Titanium Series Front Brake Rotor
The DuraGo Titanium Series brake rotor is built for front brake service on select Nissan NV vans and combines cast iron construction with a corrosion-resistant coating on the hat and edge. Part number BR901108-01 is engineered for fit, form, and function in applications that call for a vented, non-directional disc brake rotor with a titanium gray finish.
Key Features
- Cast iron, full-cast construction for front brake replacement
- Vented rotor design with non-directional brake surface
- Rust-resistant coating on the hat and edge for added corrosion defense
- Titanium gray finish for a clean appearance behind open wheel designs
- Outside diameter: 14.17 in. (360 mm)
- Nominal thickness: 1.50 in. (38 mm); discard thickness: 1.44 in. (36.5 mm)
- Overall height: 3.78 in. (96 mm)
- 8 mounting bolt holes, 6.5 in. bolt circle diameter
- Center hole diameter: 4.84 in. (123 mm)
Detailed Description
DuraGo BR901108-01 is a front disc brake rotor for 2012-2021 Nissan NV1500, 2012-2021 Nissan NV2500, and 2012-2021 Nissan NV3500. It uses a vented, conventional rotor design with a non-directional friction surface to support consistent brake service and straightforward installation. The corrosion-resistant coating helps protect the hat and edge from rust, which is especially useful on work vans exposed to road moisture and winter conditions. This part cross-references Nissan OE numbers 402061PA1A and 402061PA1B for the same application.
Common Repair Uses
- Front brake pulsation caused by rotor wear or thickness variation
- Rust buildup on the rotor hat and outer edge
- Brake noise related to worn or heat-affected rotor surfaces
- Reduced braking performance from a rotor at or near discard thickness
- Service replacement on Nissan NV1500, NV2500, or NV3500 front brake systems
Installation Notes and Tips
Verify rotor diameter, center hole, bolt pattern, and thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle service manual for torque and bedding procedures. Fits 2012-2021 Nissan NV1500, front; fits 2012-2021 Nissan NV2500, front; fits 2012-2021 Nissan NV3500, front.
Quality Assurance
DuraGo manufactures DTS rotors in an ISO-certified factory to meet fit, form, and function requirements. The Titanium Series is backed by DuraGo’s two decades of brake component experience and is built for professional-grade service on Nissan NV front brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2017 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2017 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2017 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2016 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2016 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2016 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2015 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2015 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2015 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2014 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2014 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2014 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Nissan | NV1500 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Nissan | NV2500 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Nissan | NV3500 | Front | Coated Hat and Edge for Rust Resistance |
