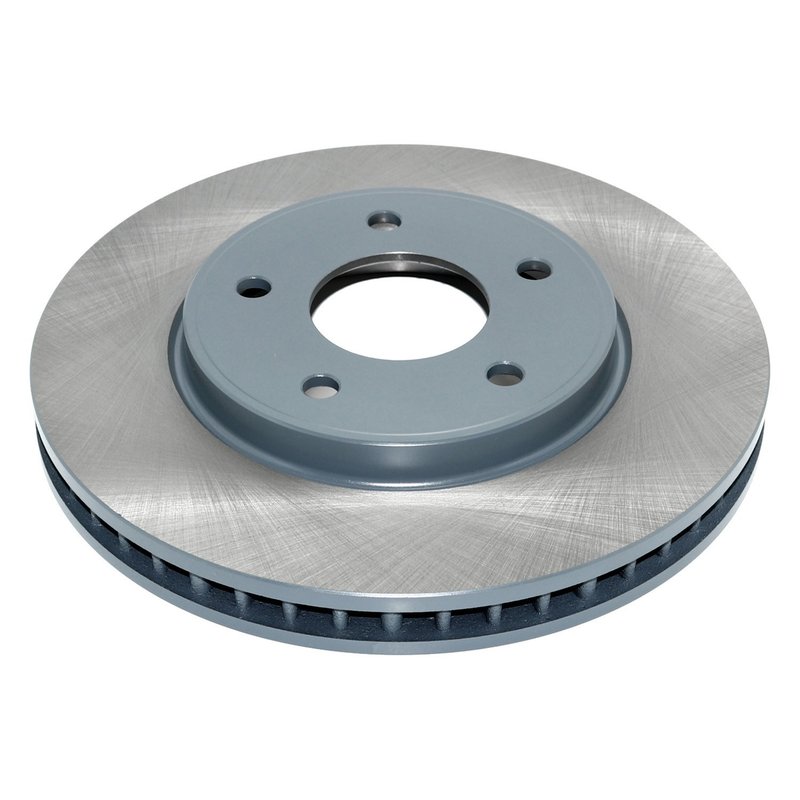

DuraGo BR901202-01 Disc Brake Rotor - Front
| Brand | DuraGo BR901202-01 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.02 |
| Discard Thickness | 26 |
| Nominal Thickness | 1.1 |
| Nominal Thickness | 28 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.73 |
| Overall Height | 44 |
| Outside Diameter | 11.14 |
| Outside Diameter | 283 |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.68 |
| Center Hole Diameter | 68 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Mounting Bolt Hole Diameter | 0.51 |
| Mounting Bolt Hole Diameter | 13 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Cross Drilled | No |
| Slotted | No |
| Fits | Chevrolet and Nissan · 25 vehicles |
OE fit and form. Manufactured to meet requirements for fit, form, and function.
Corrosion-resistant coating. Helps protect the rotor hat and edge for lasting defense.
Vented design. Promotes efficient airflow for consistent braking performance.
Cross-references 402063LM0A, 402063NA0A and 19316546 for the same application. See all 3.
DuraGo Titanium Series Front Brake Rotor
The DuraGo Titanium Series brake rotor is built for front brake service on select Nissan and Chevrolet applications, including Nissan LEAF, Nissan NV200, and Chevrolet City Express models. Part number BR901202-01 combines a vented cast iron design with a corrosion-resistant coating to help protect the hat and edge from rust.
- Vented, full cast rotor construction for front brake applications
- Cast iron material with non-directional brake surface
- Rust resistant coating on the hat and edge
- Titanium gray finish for a cleaner appearance behind open wheel designs
- 5-bolt pattern with 114.3 mm / 4.5 in bolt circle diameter
- Outside diameter: 283 mm / 11.14 in
- Nominal thickness: 28 mm / 1.1 in; discard thickness: 26 mm / 1.02 in
- Center hole diameter: 68 mm / 2.68 in
Fitment and Application Details
Compatible with front brake service on select Nissan LEAF, Nissan NV200, and Chevrolet City Express vehicles. This part number, BR901202-01, is listed for 2011-2013 Nissan LEAF front, 2014 Nissan LEAF front, 2018-2025 Nissan LEAF front, 2013-2021 Nissan NV200 front, and 2015-2018 Chevrolet City Express front. It cross-references 402063LM0A and 402063NA0A for the same application.
What This Rotor Helps Address
- Front brake vibration caused by worn or uneven rotor surfaces
- Brake noise related to rotor wear or surface condition
- Rust buildup on exposed rotor hat and edge areas
- Brake pedal pulsation from rotor thickness variation
- Replacement needs for service on Nissan LEAF, Nissan NV200, and Chevrolet City Express front brakes
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads, calipers, and hardware condition during brake service. Because this rotor is non-directional, it does not require a left- or right-specific orientation.
Quality Assurance
DuraGo manufactures DTS rotors in an ISO certified factory to support fit, form, and function requirements. The Titanium Series is engineered from DuraGo’s two decades of brake component experience and uses a corrosion-resistant finish to help maintain appearance and protection in service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2024 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2023 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2022 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2021 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2020 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2019 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Chevrolet | City Express | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2018 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2017 | Chevrolet | City Express | Front | Coated Hat and Edge for Rust Resistance |
| 2017 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2016 | Chevrolet | City Express | Front | Coated Hat and Edge for Rust Resistance |
| 2016 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2015 | Chevrolet | City Express | Front | Coated Hat and Edge for Rust Resistance |
| 2015 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2014 | Nissan | LEAF | Front | Japan Built; Coated Hat and Edge for Rust Resistance |
| 2014 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2013 | Nissan | NV200 | Front | Coated Hat and Edge for Rust Resistance |
| 2012 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
| 2011 | Nissan | LEAF | Front | Coated Hat and Edge for Rust Resistance |
