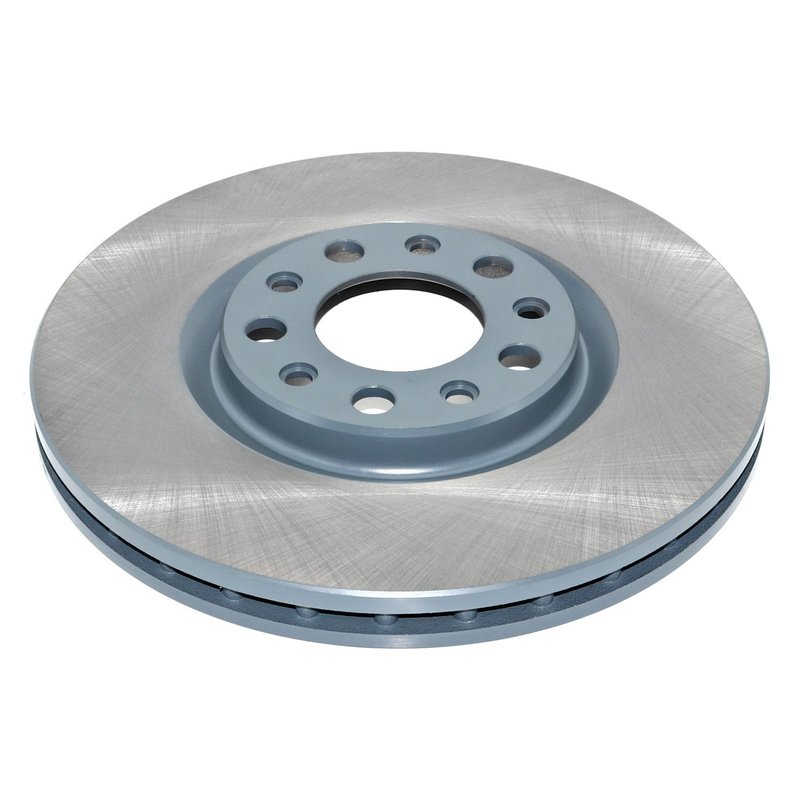

DuraGo BR901394-01 Disc Brake Rotor - Front

Durable Cast Iron Disc Brake Rotor for Jeep and Fiat Models

The DuraGo BR901394-01 disc brake rotor is engineered to provide reliable braking performance for select Jeep and Fiat vehicles. Designed with a full cast construction and rust-resistant coating, this rotor offers durability and consistent stopping power for your Jeep Compass, Jeep Renegade, and Fiat 500X.

• Material: Cast iron for strength and heat dissipation
• Nominal thickness: 1.1 inches (28 mm) ensuring long service life
• Discard thickness: 1.02 inches (26 mm) for safe replacement guidelines
• Vented rotor design to improve heat dissipation and reduce brake fade
• Rust-resistant coating to protect against corrosion
• Overall height: 1.56 inches (39.7 mm)
• Outside diameter: 12.01 inches (305 mm)
• Mounting bolt hole quantity: 5 with 4.33 inches (110 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Conventional rotor type compatible with standard braking systems

Technical Details and Construction

The DuraGo BR901394-01 rotor is constructed from full cast iron, a material known for its excellent thermal conductivity and durability under high braking loads. The vented design allows air to flow between the rotor surfaces, helping to dissipate heat more effectively and maintain braking performance during extended use. The rotor features a rust-resistant coating that helps prevent corrosion, extending the rotor's lifespan and maintaining consistent braking efficiency.

With a nominal thickness of 1.1 inches (28 mm) and a discard thickness of 1.02 inches (26 mm), this rotor provides clear service limits to ensure safe operation. The overall height of 1.56 inches (39.7 mm) and an outside diameter of 12.01 inches (305 mm) are designed to meet OEM specifications for the compatible vehicles. The 5 mounting bolt holes with a 4.33-inch (110 mm) bolt circle diameter ensure proper fitment and secure installation.

Compatible Vehicles and Applications

This disc brake rotor is compatible with the following vehicles:

• Jeep Compass
• Jeep Renegade
• Fiat 500X

It is designed to replace worn or damaged rotors, restoring braking performance and safety for these models. The rotor is suitable for drivers experiencing issues such as brake noise, vibration, or reduced stopping power.

• Eliminates brake rotor warping and vibration
• Restores smooth and consistent braking response
• Addresses rotor corrosion and surface rust
• Improves heat dissipation to reduce brake fade
• Replaces rotors worn below discard thickness

Installation Notes and Tips

When installing the DuraGo BR901394-01 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the rotor thickness is within the specified nominal and discard limits. Use proper torque specifications for the 5 mounting bolts to secure the rotor firmly. This rotor features a non-directional braking surface, allowing installation on either side without concern for rotation direction.

Quality Assurance and Warranty

DuraGo manufactures this rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant coating enhances durability in various driving conditions. While specific warranty details are not provided, DuraGo products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
