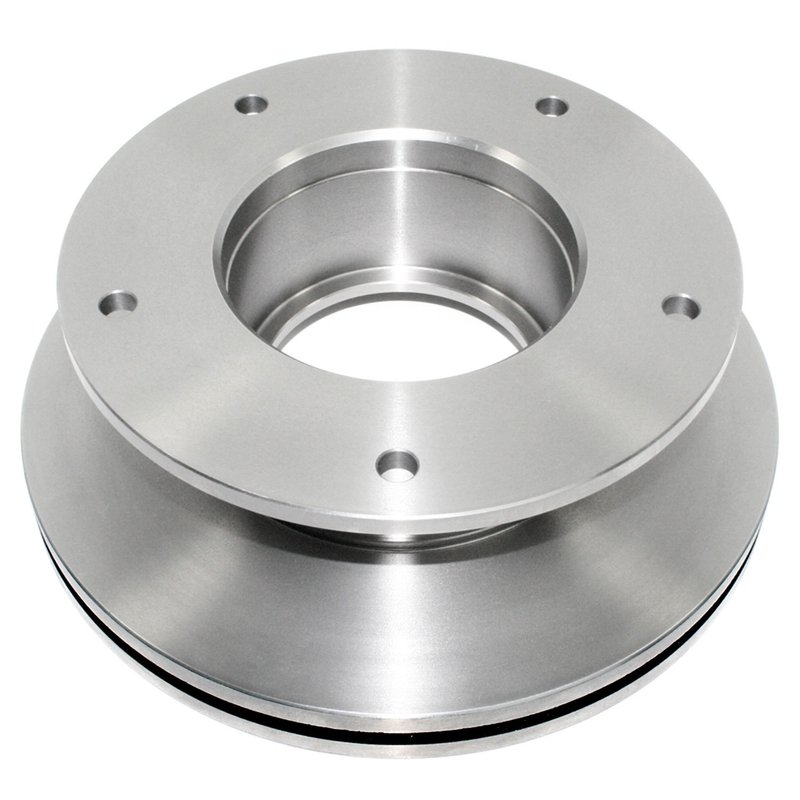

DuraGo BR901562 Disc Brake Rotor - Rear
OE Quality 60-Day Returns
DuraGo

DuraGo BR901562 Disc Brake Rotor - Rear

Brand DuraGo BR901562
Position Rear
Material Cast iron
Discard Thickness 1.06
Discard Thickness 27
Nominal Thickness 1.18
Nominal Thickness 30
Construction Full cast
Rust Resistant Coating No
Overall Height 106.2
Overall Height 4.18
Outside Diameter 12.7
Outside Diameter 322.5
Mounting Bolt Hole Quantity 5
ABS Tone Ring Included No
Solid Or Vented Type Rotor Vented
Center Hole Diameter 140
Center Hole Diameter 5.51
Mounting Bolt Hole Circle Diameter 222.25
Mounting Bolt Hole Circle Diameter 8.75
Mounting Bolt Hole Diameter 0.54
Mounting Bolt Hole Diameter 13.6
Directional or Non-Directional Brake Surface Non-directional
Conventional Or Drum-In-Hat Type Rotor Conventional
Cross Drilled No
Slotted No
Fits Workhorse · 14 vehicles

OE-style replacement. Conventional rotor construction for straightforward brake service.

Vented design. Helps manage heat during repeated braking.

ISO-certified manufacturing. Built in factories that meet fit, form, and function requirements.

$116.59Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $116.59
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

DuraGo BR901562 is a conventional vented disc brake rotor built from cast iron with a full cast construction. It is engineered for rear brake service on select Workhorse applications and uses a non-directional brake surface for consistent contact.

This rotor fits 2006-2011 Workhorse W42, rear; 2006-2009 Workhorse W16, rear; and 2006-2009 Workhorse W18, rear. The BR901562 part number is also useful when confirming the correct replacement before ordering.

Key Features

  • Cast iron, full cast rotor construction
  • Vented design for brake heat management
  • Conventional rotor format with a non-directional surface
  • 5-bolt mounting pattern with 322.5 mm outside diameter
  • Built to fit rear brake applications listed for Workhorse W42, W16, and W18

Detailed Description

DuraGo BR901562 is part of the brand’s brake drum and rotor program, which is cataloged for professional replacement work and manufactured in ISO-certified factories to meet fit, form, and function requirements. The rotor’s cast iron build, 27 mm discard thickness, 30 mm nominal thickness, and 140 mm center hole diameter support a direct replacement style installation where the listed fitment applies. The BR901562 rotor is a practical choice for rear brake service on Workhorse W42, W16, and W18 models that require a 5-hole rotor with ABS ring not included.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Uses

  • Replacing a worn rear brake rotor with excessive wear
  • Addressing brake pulsation caused by rotor thickness variation
  • Restoring braking performance when the rotor surface is no longer serviceable
  • Correcting noise or vibration linked to rotor condition
  • Servicing rear brake systems on compatible Workhorse chassis applications

Installation Notes

Verify rotor dimensions, bolt pattern, and ABS ring requirements before installation. This rotor is listed for rear applications only, and the fitment notes specify that the ABS ring is not included. Confirm the vehicle’s brake configuration against the listed Workhorse W42, W16, and W18 fitment before replacing the part.

Quality Assurance

DuraGo manufactures this rotor in ISO-certified factories and positions the Brake Drum and Rotor Program for professional replacement use. The brand’s long history in aftermarket brake components supports consistent cataloging and application coverage.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2011WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
2010WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
2009WorkhorseW16Rear5 Hole Rotor; ABS Ring Not Included
2009WorkhorseW18Rear5 Hole Rotor; ABS Ring Not Included
2009WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
2008WorkhorseW16Rear5 Hole Rotor; ABS Ring Not Included
2008WorkhorseW18Rear5 Hole Rotor; ABS Ring Not Included
2008WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
2007WorkhorseW16Rear5 Hole Rotor; ABS Ring Not Included
2007WorkhorseW18Rear5 Hole Rotor; ABS Ring Not Included
2007WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
2006WorkhorseW16Rear5 Hole Rotor; ABS Ring Not Included
2006WorkhorseW18Rear5 Hole Rotor; ABS Ring Not Included
2006WorkhorseW42Rear5 Hole Rotor; ABS Ring Not Included
