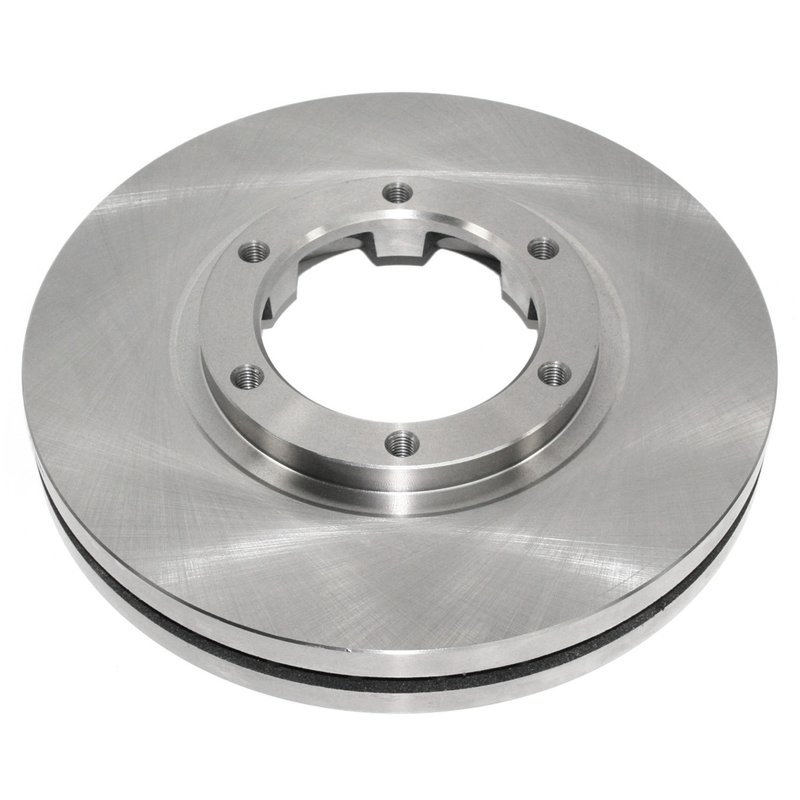

DuraGo BR901566 Disc Brake Rotor - Front

DuraGo BR901566 Disc Brake Rotor Overview

The DuraGo BR901566 is a vented front disc brake rotor built from cast iron with a full cast construction for consistent braking performance. It is a conventional, non-directional rotor with a 12.2-inch outside diameter, 6-bolt mounting pattern, and M12 x 1.75 bolt size for applications that match these specifications.

Built by DuraGo, a long-established aftermarket brake supplier, this rotor reflects the brand’s focus on fit, form, and function for professional repair work. If you are searching for a DuraGo BR901566 brake rotor or a direct replacement rotor for select vehicle applications, this part number is a practical OE-style service option.

Key Features

• Cast iron rotor with full cast construction
• Vented disc brake rotor design for heat management
• Non-directional brake surface for straightforward service installation
• 12.2 in. (310 mm) outside diameter
• 6 mounting bolt holes with 140 mm bolt circle diameter
• Center hole diameter: 114 mm
• Nominal thickness: 1.57 in. (40 mm)
• Discard thickness: 1.5 in. (38 mm)
• Conventional, drum-in-hat type: No
• Cross-drilled: No; Slotted: No

Detailed Description

The DuraGo BR901566 rotor is engineered as a conventional vented brake rotor for vehicles that require a 310 mm rotor with a 6-lug pattern and a 114 mm center bore. Its cast iron construction supports stable braking characteristics, while the non-directional surface simplifies rotor service and replacement. This part number is commonly searched by buyers looking for a DuraGo BR901566 front brake rotor, a vented cast iron rotor, or a replacement rotor for select 6-bolt applications.

This part cross-references Monroe Shocks & Struts (e.g., MK326334) for the same application. For fitment-focused searches, use terms such as DuraGo BR901566 rotor, 310 mm vented brake rotor, and 6-lug front disc brake rotor for select make/model applications.

What This Rotor Helps Address

• Brake pulsation caused by worn or out-of-spec rotors
• Reduced braking consistency from heat-affected rotor surfaces
• Rotor replacement needs during brake pad service
• Noise or vibration linked to rotor wear or scoring
• Service requirements for vehicles using a 310 mm vented front rotor

Installation Notes and Tips

Verify rotor diameter, center bore, bolt circle diameter, and bolt size before installation. Confirm vehicle-specific fitment for the exact make and model, including front axle application where required. Clean the hub mounting surface before installing the rotor to help prevent runout-related brake vibration. Always inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle manufacturer’s torque specifications.

Compatible vehicle search terms for this part include select 6-lug brake rotor applications, DuraGo BR901566 replacement rotor, and vented front disc brake rotor for make/model-specific service. Fits should be confirmed against the vehicle’s brake specifications before ordering.

Quality Assurance

DuraGo manufactures brake drums and rotors through ISO-certified factories and builds its aftermarket catalog around fit, form, and function requirements. The brand’s long history in brake components supports consistent cataloging and application coverage for professional repair use.
