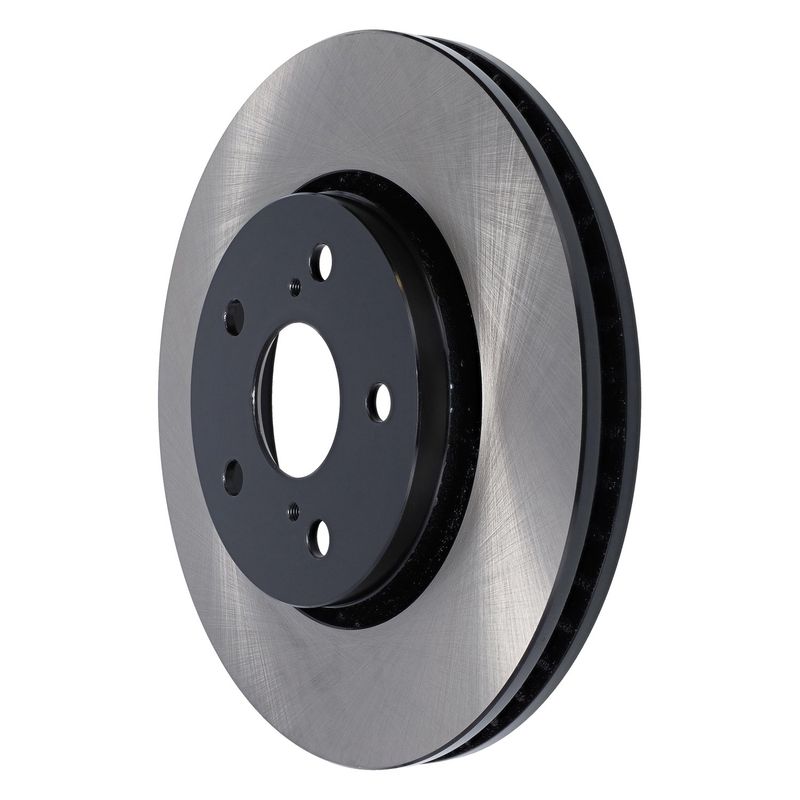

DuraGo BR901630-02 Disc Brake Rotor - Front
OE Quality 60-Day Returns
DuraGo

DuraGo BR901630-02 Disc Brake Rotor - Front

Brand DuraGo BR901630-02
Position Front
Material Cast iron
Discard Thickness 0.98
Discard Thickness 25
Nominal Thickness 1.1
Nominal Thickness 28
Construction Full cast
Rust Resistant Coating Yes
Slotted No
Overall Height 1.94
Overall Height 49.2
Outside Diameter 11.75
Outside Diameter 298.5
Mounting Bolt Hole Quantity 5
ABS Tone Ring Included No
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.44
Center Hole Diameter 62
Mounting Bolt Hole Circle Diameter 114.3
Mounting Bolt Hole Circle Diameter 4.5
Mounting Bolt Hole Diameter 0.58
Mounting Bolt Hole Diameter 14.7
Directional or Non-Directional Brake Surface Non-directional
Conventional Or Drum-In-Hat Type Rotor Conventional
Cross Drilled No
Fits Toyota · 5 vehicles

Corrosion-resistant coating. Electrophoretic finish helps protect the rotor surface from rust.

Smooth braking finish. Non-directional swirl surface supports pad bedding and reduces prep work.

Balanced construction. Machine-balanced rotor helps promote consistent braking performance.

Cross-references 43512F4010 for the same application. See all 1.

$71.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $71.20
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Brake Rotor Overview

DuraGo BR901630-02 is a vented disc brake rotor built for Toyota C-HR front brake applications. It combines a cast iron, full-cast construction with an electrophoretic rust-resistant coating for corrosion protection and consistent service performance.

Key Features

  • Electrophoretic coated surface for improved corrosion resistance.
  • Vented rotor design helps move heat away during braking.
  • Non-directional swirl finish supports pad bedding and reduces prep time.
  • Machine-balanced construction promotes smooth braking feel.
  • Cast iron, full-cast rotor with conventional design.

Detailed Description

This DuraGo brake rotor is engineered with Premium Core Technology for tighter tolerances and cleaner castings, helping deliver a more consistent finished part. The non-directional brake surface is designed to work with brake pads without requiring machining before installation, while the multiple-vane vented design supports heat dissipation under repeated stops. For Toyota C-HR owners looking for a front rotor replacement, BR901630-02 offers the fitment and construction details needed for a direct service part. This part cross-references Toyota 43512F4010 for the same application.

What It Helps Address

  • Brake pulsation caused by uneven rotor surfaces.
  • Corrosion on exposed brake rotor surfaces.
  • Heat buildup during repeated braking.
  • Noise or poor pad contact from an unfinished braking surface.

Installation Notes and Tips

Fits 2018-2019 Toyota C-HR, front. Fits 2020-2022 Toyota C-HR, front, except Japan built models. Verify rotor dimensions, hub fit, and brake pad condition before installation. The non-directional finish supports installation without machining when the rotor surface is within specification.

Quality Assurance

DuraGo designs this rotor with Premium Core Technology, machine balancing, and a corrosion-resistant coating to support consistent fit and finish. BR901630-02 is built to meet the dimensional and surface requirements expected in a professional brake service replacement.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2022ToyotaC-HRFrontExcept Japan Built; Electrophoretic Premium Coating - Superior Rust Prevention (per ASTM B-117/ISO 9227)
2021ToyotaC-HRFrontExcept Japan Built; Electrophoretic Premium Coating - Superior Rust Prevention (per ASTM B-117/ISO 9227)
2020ToyotaC-HRFrontExcept Japan Built; Electrophoretic Premium Coating - Superior Rust Prevention (per ASTM B-117/ISO 9227)
2019ToyotaC-HRFrontElectrophoretic Premium Coating - Superior Rust Prevention (per ASTM B-117/ISO 9227)
2018ToyotaC-HRFrontElectrophoretic Premium Coating - Superior Rust Prevention (per ASTM B-117/ISO 9227)
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
43512F4010
