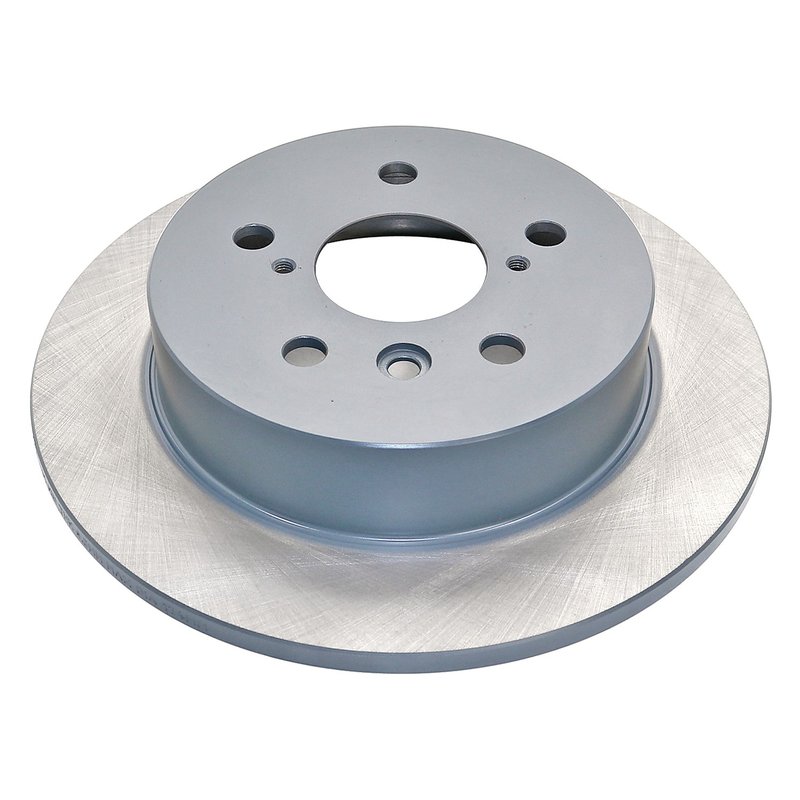

DuraGo BR901634-01 Disc Brake Rotor - Rear

Overview of DuraGo BR901634-01 Disc Brake Rotor

The DuraGo BR901634-01 is a cast iron disc brake rotor designed specifically for Toyota Camry models. Engineered for reliable braking performance, this rotor features a full cast construction and a rust-resistant coating to help maintain durability and longevity under various driving conditions.

• Material: Cast iron for consistent heat dissipation
• Construction: Full cast solid rotor with drum-in-hat design
• Rust-resistant coating to reduce corrosion
• Outside diameter: 11.06 inches (281 mm)
• Nominal thickness: 0.39 inches (10 mm) with discard thickness at 0.33 inches (8.5 mm)
• Mounting bolt hole quantity: 5 with 4.5 inch (114.3 mm) bolt circle diameter
• Non-directional brake surface for versatile installation
• Overall height: 2.09 inches (53 mm)

Detailed Product Description

The DuraGo BR901634-01 disc brake rotor is constructed from durable cast iron, providing effective heat dissipation and resistance to warping during braking. Its full cast solid design incorporates a drum-in-hat type rotor, which integrates the parking brake drum within the rotor hat, making it compatible with Toyota Camry models equipped with this braking system. The rotor’s rust-resistant coating helps protect against corrosion, extending the service life of the part. With a nominal thickness of 0.39 inches and a discard thickness of 0.33 inches, this rotor meets the specifications required for safe and efficient braking performance. The 5-bolt mounting pattern with a 4.5-inch bolt circle diameter ensures proper fitment and secure installation.

Compatible Vehicles and Applications

• Compatible with Toyota Camry models requiring a 281 mm (11.06 inch) solid disc brake rotor
• Designed for vehicles using a drum-in-hat rotor configuration
• Suitable for replacement of worn or damaged front or rear rotors on applicable Camry models
• Ideal for addressing issues such as brake noise, vibration, or reduced braking efficiency

Installation Notes and Tips

When installing the DuraGo BR901634-01 rotor, ensure the rotor thickness is above the discard thickness of 0.33 inches to maintain braking safety. Clean the rotor surface before installation to remove any protective coating residue. Verify the 5-bolt mounting pattern and 4.5-inch bolt circle diameter match your vehicle’s specifications. Since this rotor is non-directional, it can be installed on either side without concern for rotation direction. Proper torque specifications should be followed for mounting bolts to avoid rotor warping.

Quality Assurance and Warranty

DuraGo manufactures this disc brake rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant coating enhances durability against environmental factors. While specific warranty details are not provided, DuraGo products typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
